Weidmuller 1504420000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

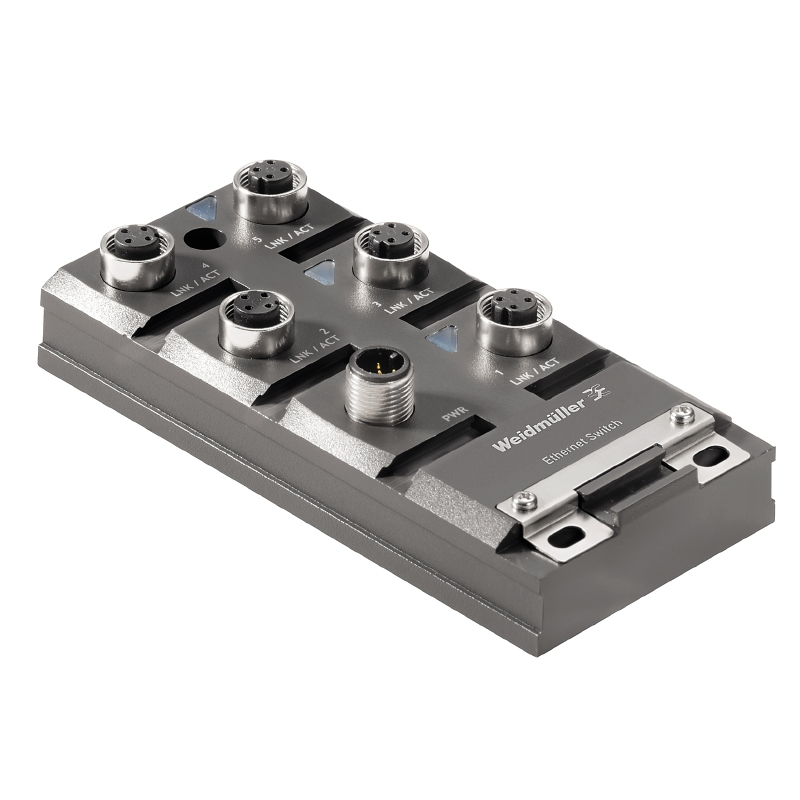

Network switch, unmanaged, Fast Ethernet, Number of ports: 5 * M12 D coded, IP67 encapsulated, -40 °C...75 °CIE-SW-IP67T-5M12
Weidmuller 1504420000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, EAC
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- eClass 10.0
- 19-17-04-02
- eClass 9.0
- 19-17-01-06
- eClass 9.1
- 19-17-01-06
- ETIM 6.0
- EC000734
- ETIM 7.0
- EC000734
Dimensions And Weights
- Depth
- 29.6 mm
- Depth (inches)
- 1.165 inch
- Height
- 125 mm
- Height (inches)
- 4.921 inch
- Net weight
- 270 g
- Width
- 60 mm
- Width (inches)
- 2.362 inch
Emc Conformity And Approvals
- EMC standards
- EN 55032, EN 55024, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
- Free fall
- According to IEC 60068-2-32
- Security
- UL508
- Shock
- according to IEC 60068-2-27
- Vibration
- according to IEC 60068-2-6
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, max.
- 75 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Guarantee
- Time interval
- 5 years
Interfaces
- LED indicator
- PWR, LNK/ACT
- M12-Ports
- 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X connection, D-coded, 4-pole
- Number of ports
- 5 * M12 D coded
Mtbf
- Database
- Telcordia (Bellcore), GB
- MTBF
- 370,224 hrs
Power Supply
- Connection type
- 1 x M12 socket, A-coded, Pin
- Current consumption
- 0.12 A bei 24V DC
- Overload current protection
- 1.1 A
- Reverse polarity protection
- Available
- Supply voltage, max.
- 45 V DC
- Supply voltage, min.
- 12 V DC
- Voltage supply
- 24 V DC, 18 to 30 V AC, 47 to 63 Hz
Technical Data
- Housing main material
- Plastic
- Protection degree
- IP67 encapsulated
- Type of mounting
- Wall mounting, when screwed in
Technology
- Data switching
- Store and Forward
- Flow control
- IEEE 802.3x flow control, Back pressure flow control
- Standard
- IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
