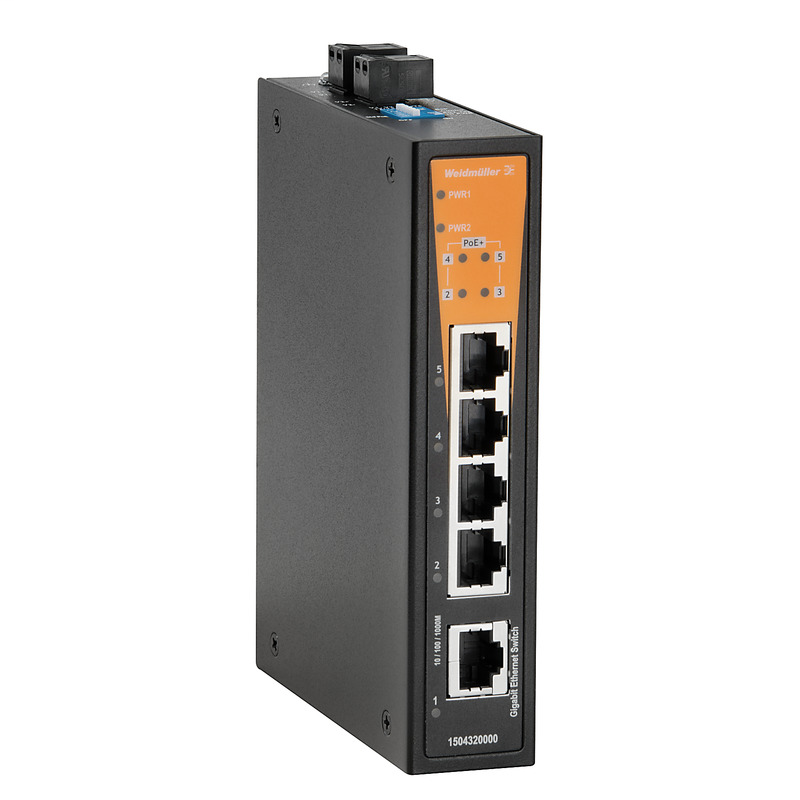

Weidmuller 1504320000

Approvals

• Approvals
  • CE, CULUS, EAC, KOREANCERT
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 19-17-04-02
• eClass 9.0
  • 19-17-01-06
• eClass 9.1
  • 19-17-01-06
• ETIM 6.0
  • EC000734
• ETIM 7.0
  • EC000734

Dimensions And Weights

• Depth
  • 105 mm
• Depth (inches)
  • 4.134 inch
• Height
  • 135 mm
• Height (inches)
  • 5.315 inch
• Net weight
  • 360 g
• Width
  • 29 mm
• Width (inches)
  • 1.142 inch

Emc Conformity And Approvals

• EMC standards
  • FCC Part 15 Subpart B Class A, EN 55032, EN 55024, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, EN 61000-4-8
• Security
  • UL508
• Shock
  • according to IEC 60068-2-27
• Vibration
  • according to IEC 60068-2-6

Environmental Conditions

• Humidity
  • 5...95 %, no condensation
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • 0 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Interfaces

• DIP switch
  • Broadcast storm protection enable/disable, Enable/disable jumbo frame support, Activate/deactivate IEEE 802.3az energy-efficient Ethernet, Switching between standard PoE (up to 30 W) and High Power PoE (up to 36 W)
• LED indicator
  • PWR1, PWR2, 10/100/1000M (TP-Port), PoE
• Number of ports
  • 4 * RJ45 10/100/1000BaseT(X) PoE+, 1 * RJ45 10/100/1000BaseT(X)
• PoE pin assignment
  • V+, V+, V-, V-, for pins 1, 2, 3, 6 (endspan, MDI alternative A)
• RJ45 ports
  • 10/100/1000BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port

Mtbf

• Database
  • Telcordia (Bellcore), GB
• MTBF
  • 1,257,910 hrs

Power Supply

• Connection type
  • 2 removable 2-pole terminal blocks
• Current consumption
  • 5,92 A at 12 V DC, 5,65 A at 24 V DC, 3.21 A at 48 V DC
• Inrush current
  • 17.4 A at 24 V DC (0.1 to 1 ms)
• Overload current protection
  • Yes
• Power consumption
  • max. 11.73 W (without PD´s consumption)
• Power loss
  • 36.4 BTU/h
• Reverse polarity protection
  • Yes
• Supply voltage, max.
  • 57 V DC
• Supply voltage, min.
  • 12 V DC
• Total PoE power budget
  • 62 W at 12 V DC (12 to 17 V DC), 120 W at 24 V DC (18 to 35 V DC), 144 W at 48 V DC (36 to 57 V DC)
• Voltage supply
  • 12/24/48 V DC, 2 redundant inputs

Switch Characteristics

• Jumbo frame support
  • up to 10 KB
• MAC table size
  • 8 K
• Packet buffer size
  • 1,024 Kbit

Technical Data

• Housing main material
  • Aluminium
• Protection degree
  • IP30
• Type of mounting
  • DIN rail, Panel (with optional mounting kit)

Technology

• Data switching
  • Store and Forward
• Flow control
  • IEEE 802.3x flow control, Back pressure flow control
• Standard
  • IEEE 802.3af for Power-over-Ethernet, IEEE 802.3at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for flow control, IEEE 802.3az Energy-Efficient Ethernet
