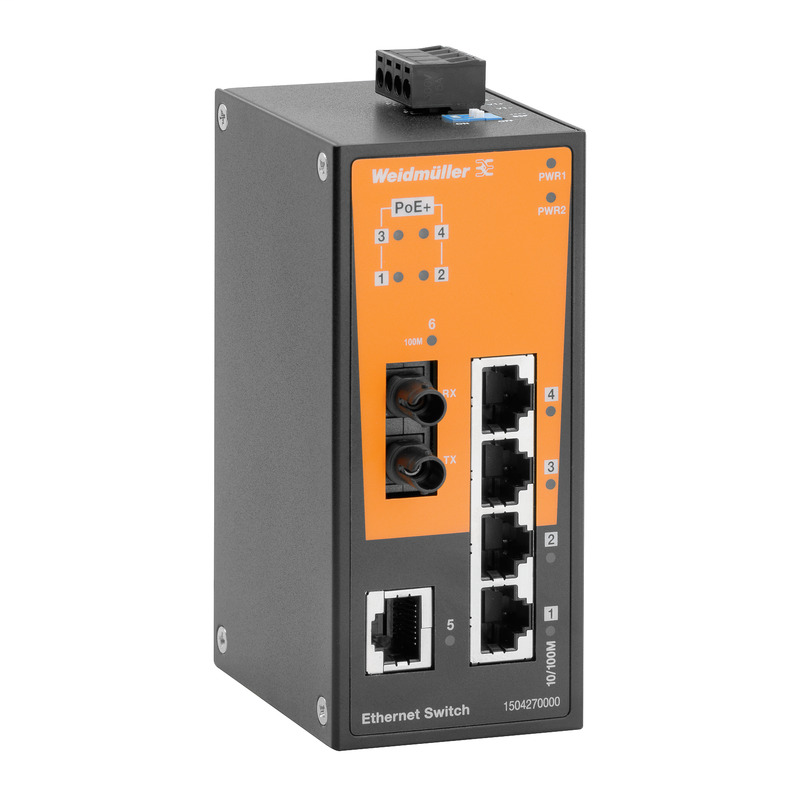

Weidmuller 1504290000

Approvals

• Approvals
  • CE, CULUS, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 19-17-04-02
• eClass 9.0
  • 19-17-01-06
• eClass 9.1
  • 19-17-01-06
• ETIM 6.0
  • EC000734
• ETIM 7.0
  • EC000734

Dimensions And Weights

• Depth
  • 70 mm
• Depth (inches)
  • 2.756 inch
• Height
  • 114 mm
• Height (inches)
  • 4.488 inch
• Net weight
  • 375 g
• Width
  • 50 mm
• Width (inches)
  • 1.969 inch

Emc Conformity And Approvals

• EMC standards
  • FCC Part 15 Subpart B Class A, EN 55032, EN 55024, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, EN 61000-4-8
• Free fall
  • According to IEC 60068-2-32
• Security
  • UL508
• Shock
  • according to IEC 60068-2-27
• Vibration
  • according to IEC 60068-2-6

Environmental Conditions

• Humidity
  • 5 to 95 % (non-condensing)
• Operating temperature, max.
  • 75 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Fibre Optic 100Basefx

• Link budget multimode
  • 12 dB
• Max. TX multi-mode
  • -10 dBm
• Min. TX multi-mode
  • -20 dBm
• Receive sensitivity multi-mode
  • -32 dBm
• System reserve multi-mode
  • -6 dBm
• Typical distances multi-mode
  • 5 km (50/125 μm, 800 MHz*km fibre optic cable), 4 km (62.5/125 μm, 500 MHz*km fibre optic cable)
• Wavelength multi-mode
  • 1,300 nm

Guarantee

• Time interval
  • 5 years

Interfaces

• DIP switch
  • Broadcast storm protection enable/disable
• Fibre-optic ports
  • 100BaseFX ports (ST connector), Multimode
• LED indicator
  • PWR1, PWR2, 10/100M (TP-Port), 100M (fibre-optic port)., PoE
• Number of ports
  • 1 * RJ45 10/100BaseT(X), 4 * RJ45 10/100 BaseT(X) PoE+, 1 * ST Multi-mode
• PoE pin assignment
  • Mode A: Pin 1, 2 (V+); Pin 3, 6 (V-); Alternative A; MDI
• RJ45 ports
  • 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port

Mtbf

• Database
  • Telcordia (Bellcore), GB
• MTBF
  • 1,289,258 hrs

Power Supply

• Connection type
  • 1 removable 4-pin terminal block
• Current consumption
  • 6.19 A at 12 V DC, 5.55 A at 24 V DC, 2.71 A at 48 V DC
• Inrush current
  • 64.56 A at 48 V DC (0.1 to 1 ms)
• Overload current protection
  • Yes
• Power consumption
  • max. 13.2 W (without PD´s consumption)
• Power loss
  • 36.4 BTU/h
• Reverse polarity protection
  • Yes
• Supply voltage, max.
  • 57 V DC
• Supply voltage, min.
  • 12 V DC
• Total PoE power budget
  • 62 W at 12 V DC (12 to 17 V DC), 120 W at 24/48 V DC (18 to 57 V DC)
• Voltage supply
  • 12/24/48 V DC, 2 redundant inputs

Switch Characteristics

• MAC table size
  • 2 K
• Packet buffer size
  • 768 Kbit

Technical Data

• Housing main material
  • Aluminium
• Protection degree
  • IP30
• Type of mounting
  • DIN rail, Panel (with optional mounting kit)

Technology

• Data switching
  • Store and Forward
• Flow control
  • IEEE 802.3x flow control, Back pressure flow control
• Standard
  • IEEE 802.3af for Power-over-Ethernet, IEEE 802.3at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
