Weidmuller 1504280000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

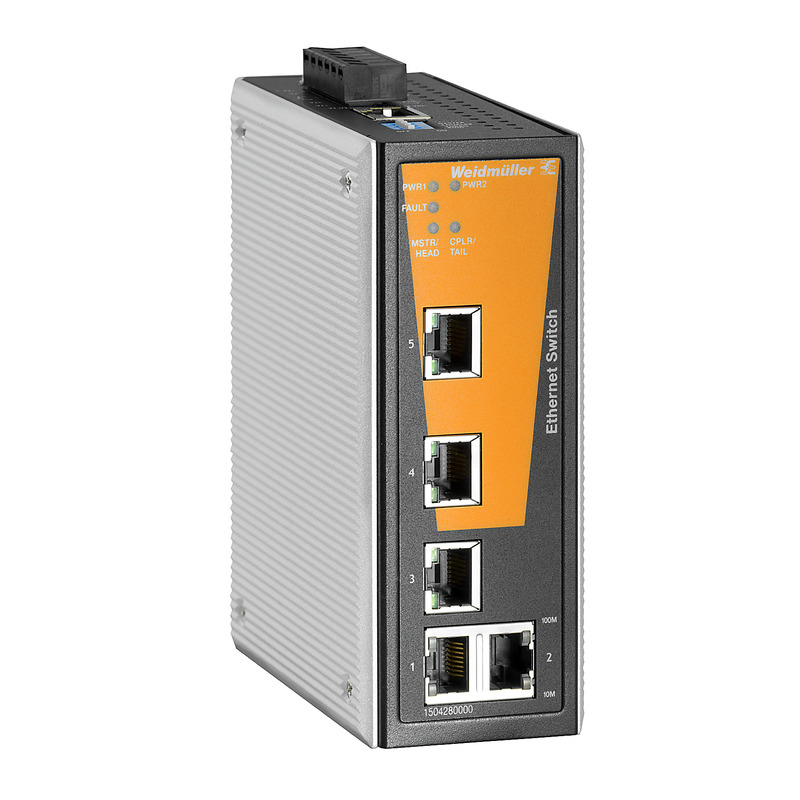

Network switch, managed, Fast Ethernet, Number of ports: 5x RJ45, IP30, -10 °C...60 °CIE-SW-VL05M-5TX
Weidmuller 1504280000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, CULUSEX, DNV GL, EAC, KOREANCERT
- ROHS
- Conform
- UL File Number Search
- E230683
Classifications
- eClass 10.0
- 19-17-04-01
- eClass 9.0
- 19-17-01-06
- eClass 9.1
- 19-17-01-06
- ETIM 6.0
- EC000734
- ETIM 7.0
- EC000734
Dimensions And Weights
- Depth
- 105 mm
- Depth (inches)
- 4.134 inch
- Height
- 135 mm
- Height (inches)
- 5.315 inch
- Net weight
- 650 g
- Width
- 53.6 mm
- Width (inches)
- 2.11 inch
Emc Conformity And Approvals
- EMC standards
- EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
- Explosive risk zone
- UL/cUL, Class I, Division 2, Groups A, B, C and D
- Free fall
- According to IEC 60068-2-32
- Security
- UL508, UL60950-1, CSA C22.2 No. 60950-1, EN60950-1
- Ship use
- DNV-GL
- Shock
- according to IEC 60068-2-27
- Vibration
- according to IEC 60068-2-6
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -10 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Guarantee
- Time interval
- 5 years
Interfaces
- Alarm contact
- 1 relay output with a current capacity of 1 A at 24 V DC
- Console port interface
- RS-232
- DIP switch
- Turbo-Ring, Master, Coupler, Reserve
- LED indicator
- PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M (TP-Port)
- Number of ports
- 5x RJ45
- RJ45 ports
- 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port
Mtbf
- Database
- Telcordia (Bellcore), GB
- MTBF
- 1,547,941 hrs
Power Supply
- Connection type
- 1 removable 6-pin terminal block
- Current consumption
- 0.286 A bei 24 V
- Overload current protection
- Existing
- Reverse polarity protection
- Available
- Supply voltage, max.
- 60 V DC
- Supply voltage, min.
- 9.6 V DC
- Voltage supply
- 12/24/48 V DC, 2 redundant inputs
Switch Characteristics
- Bandwidth backplane
- 1 Gbps
- IGMP-Groups
- 256
- MAC table size
- 2 K
- Max. number of available VLANs
- 64
- Packet buffer size
- 1 Mbit
- Priority queues
- 4
- VLAN-ID max
- 4,094
- VLAN-ID min
- 1
Technical Data
- Housing main material
- metal
- Protection degree
- IP30
- Type of mounting
- DIN rail, Panel (with optional mounting kit)
Technology
- Data switching
- Store and Forward
- Flow control
- IEEE 802.3x flow control, Back pressure flow control
- MIB
- MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
- Protocol
- IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP option 66/67/82, BootP, LLDP, PROFINET, EtherNet/IP, Modbus/TCP, IPv6
- Standard
- IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control, IEEE 802.1D-2004 for the Spanning Tree protocol, IEEE 802.1w for Rapid STP, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN tagging
