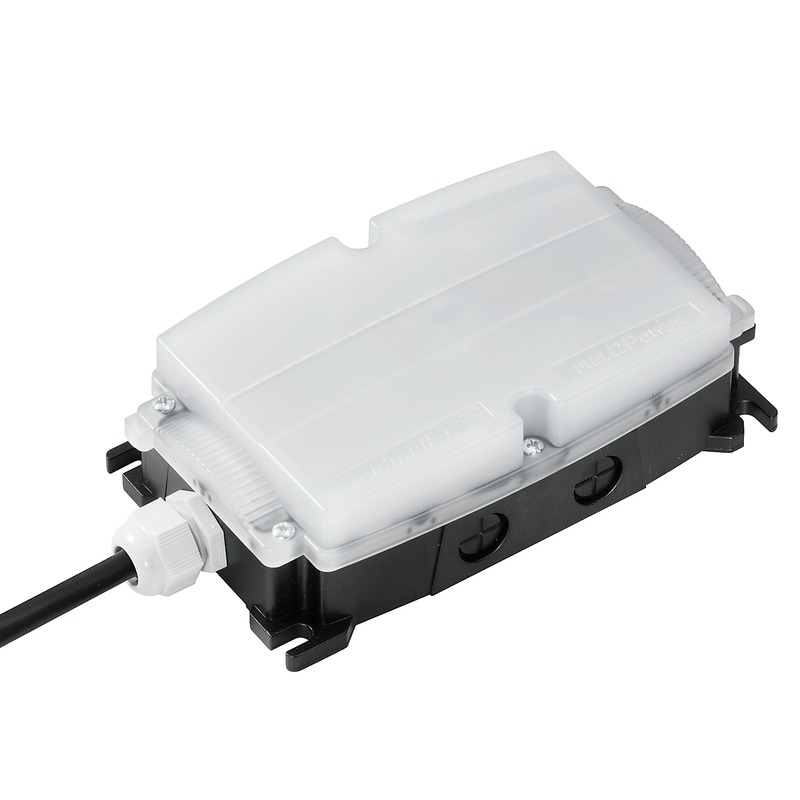

Weidmuller 1488520000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
FP MONO LED DC SA
Weidmuller 1488520000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS
- ROHS
- Conform
- UL File Number Search
- E345151
Classifications
- eClass 10.0
- 27-11-06-40
- eClass 9.0
- 27-11-06-40
- eClass 9.1
- 27-11-06-40
- ETIM 6.0
- EC001959
- ETIM 7.0
- EC001959
Dimensions And Weights
- Height
- 55 mm
- Height (inches)
- 2.165 inch
- Length
- 208 mm
- Length (inches)
- 8.189 inch
- Net weight
- 602 g
- Width
- 104 mm
- Width (inches)
- 4.094 inch
Emc
- Interference immunity test acc. to
- Acc. to EN 61547
- Interference radiation
- acc. to EN 55015
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Amplitude of acceleration
- 5 m/s² (at 9-200 Hz)
- Amplitude of deflection
- 1.5 mm (2 to 9 Hz)
- Efficiency class (according to EU Directive No. 874/2012)
- A
- Halogen
- yes (PVC cable)
- Height
- ≤ 3000 m
- Insulation voltage
- < 500 V (housing/PE)
- LED operating life
- > 50.000 h
- Light colour (CCT)
- Cool White, 6000K
- Light current
- 226.2 lm
- Line type
- Heluwind WK 103w-Torsion 2x2.5 mm²
- Mounting position, installation notice
- Arbitrary
- Peak acceleration, type L
- 70 m/s²
- Pollution severity
- 2
- Pre-assembled connector cross-section
- 2.5 mm²
- Protection class
- II
- Protection degree
- IP54
- Shock resistance EN 60721-3-3
- Class 3M3 portable
- Short-circuit protection
- Yes, internal
- Silicone
- No
- Surge voltage category
- II
- Type of connection
- Open cable end/length 2 m
- UL 94 flammability rating
- V-0
- Vibration resistance EN 60721-3-3
- Class 3M3 sinusoidal, stationary
Rated Data Acc. To Iec 60598-1
- DC input voltage range
- 24...120 V DC
- Input voltage
- 21.6 V ... 144 V DC /protected against reverse polarity
- Power rating
- 5 W
- Rated current DC
- 0,2 A (24 V DC)
Temperatures
- Operating temperature
- -40 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
