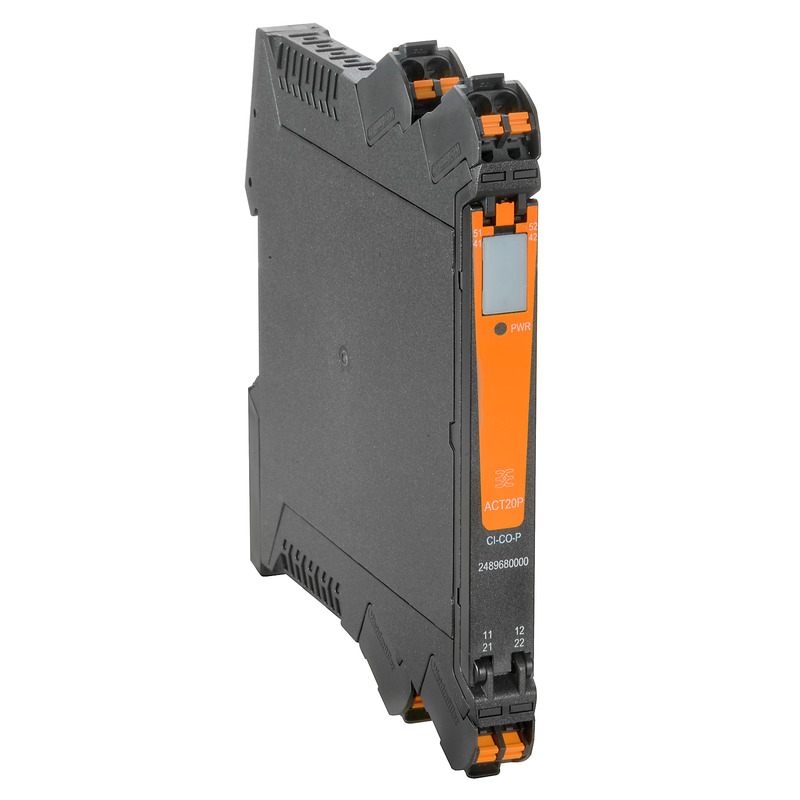

Weidmuller 1481960000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ACT20P, Signal converter/insulator, Signal converter/isolator, universal, 24…230 V AC/DC power supplyACT20P-PRO DCDC II-P
Weidmuller 1481960000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-21-01-20
- eClass 9.0
- 27-21-01-20
- eClass 9.1
- 27-21-01-20
- ETIM 6.0
- EC002653
- ETIM 7.0
- EC002653
Connection Data
- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.2 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.2 mm²
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire cross-section, solid, min.
- 0.2 mm²
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Dimensions And Weights
- Depth
- 113.7 mm
- Depth (inches)
- 4.476 inch
- Height
- 127.1 mm
- Height (inches)
- 5.004 inch
- Net weight
- 20 g
- Weight
- 130 g
- Width
- 12.5 mm
- Width (inches)
- 0.492 inch
Display
- Display value
- current measured value, Configuration data
- Type
- Dot-matrix display with ticker text, green
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Accuracy
- < 0.05 % of measuring range
- Configuration
- DIP switch, or via display and push-buttons
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Power consumption
- ≤2.3 W
- Rail
- TS 35
- Step response time
- ≤50 µs
- Temperature coefficient
- ≤0.01% of the output measurement range ⁄ °C
- Voltage supply
- 24…230 V DC ±20 %, 24…230 V AC ±10 % @ 48…62 Hz
Input
- Input current
- configurable, ± 0.1mA...± 100 mA, Measuring range min. 200 µA
- Input resistance, current
- < 5 mA: approx. 100 Ω; >5 mA: approx. 5 Ω
- Input resistance, voltage
- approx. 1 MΩ
- Input signal
- Voltage source, Current source
- Input voltage
- configurable, ±40 mV…±300 V, Measuring range. min 40 mV
- Number of inputs
- 1
Insulation Coordination
- EMC standards
- EN 60079-0, EN 60079-15, EN 61010-1, EN 61140, EN 61326-1, UL 61010-1, SN29500 for MTBF
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Impulse withstand voltage
- 5 kV (1.2/50 µs)
- Insulation voltage
- 4 kVeff, input ⁄ output ⁄ power supply
- Pollution severity
- 2
- Rated voltage
- 600 V
- Surge voltage category
- II
Output
- Cut-off frequency (-3 dB)
- > 10 kHz/ < 10 Hz
- load impedance current
- ≤ 600 Ω
- load impedance voltage
- ≥ 1 kΩ
- Offset current
- 20 µA
- Offset voltage
- < 10 mV
- Output current
- Adjustable, 0...±20 mA
- Output voltage, note
- Adjustable, 0...±10 V
- Status indicator
- Green LED
Product Information
- Product information
- The universally configurable DC isolating amplifier ACT20P-PRO DCDC II isolates and converts analogue signals. An analogue input signal (current or voltage) is linearly converted into an analogue output signal (current or voltage) and galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation). Properties universal wide-range voltage supply universally configurable via DIP switch or via the LED display using control buttons Active or passive signal output Operating status display on a front panel LED Galvanic 3-way isolation between input, output and supply.
