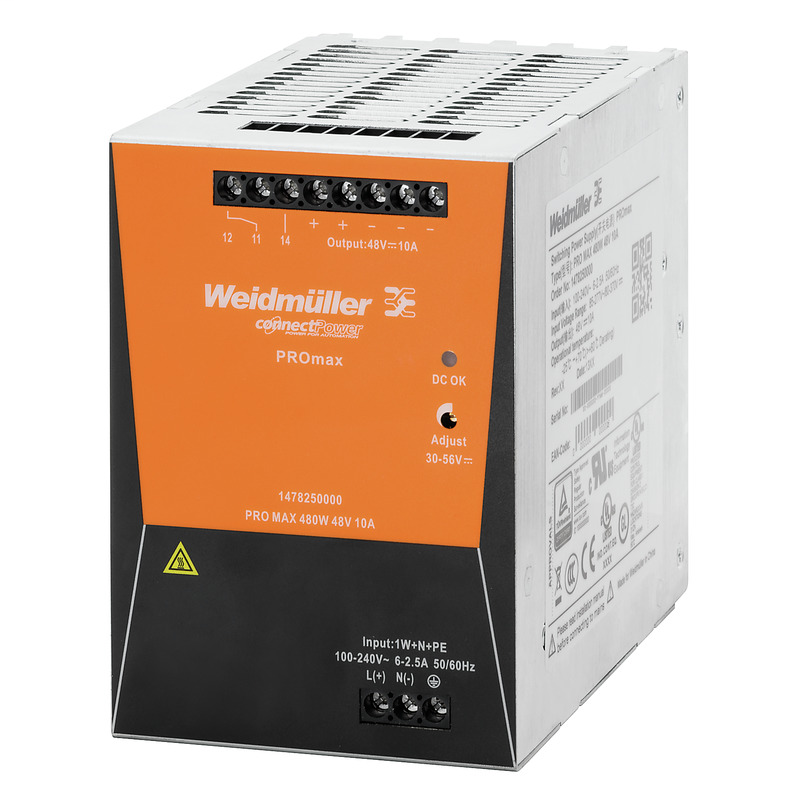

Weidmuller 1478140000

Approvals

• Approvals
  • CE, CULUS, CULUSEX, cURus, DNV GL, EAC, TUEV
• ROHS
  • Conform
• UL File Number Search
  • E258476

Classifications

• eClass 10.0
  • 27-04-07-01
• eClass 9.0
  • 27-04-07-01
• eClass 9.1
  • 27-04-07-01
• ETIM 6.0
  • EC002540
• ETIM 7.0
  • EC002540

Connection Data (Input)

• Conductor cross-section, AWG/kcmil , max.
  • 10
• Conductor cross-section, AWG/kcmil , min.
  • 26
• Conductor cross-section, flexible , min.
  • 0.22 mm²
• Conductor cross-section, rigid , max.
  • 6 mm²
• Conductor cross-section, rigid , min.
  • 0.18 mm²
• Connection system
  • Screw connection
• Number of terminals
  • 3 for L/N/PE
• Screwdriver blade
  • 0.8 x 4.0, PZ 1
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm
• Wire connection cross section, flexible (input), max.
  • 4 mm²

Connection Data (Output)

• Conductor cross-section, AWG/kcmil , max.
  • 10
• Conductor cross-section, AWG/kcmil , min.
  • 26
• Conductor cross-section, flexible , max.
  • 4 mm²
• Conductor cross-section, flexible , min.
  • 0.22 mm²
• Conductor cross-section, rigid , max.
  • 6 mm²
• Conductor cross-section, rigid , min.
  • 0.18 mm²
• Connection system
  • Screw connection
• Number of terminals
  • 8 (++,---,11,13,14)
• Screwdriver blade
  • 0.8 x 4.0, PZ 1
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm

Dimensions And Weights

• Depth
  • 150 mm
• Depth (inches)
  • 5.905 inch
• Height
  • 130 mm
• Height (inches)
  • 5.118 inch
• Net weight
  • 2,000 g
• Width
  • 90 mm
• Width (inches)
  • 3.543 inch

Electrical Safety (Applied Standards)

• Electrical machine equipment
  • Acc. to EN60204
• For use with electronic equipment
  • Acc. to EN50178 / VDE0160
• Protection against dangerous shock currents
  • Acc. to VDE0106-101
• Protective separation / protection against electrical shock
  • VDE0100-410 / acc. to DIN57100-410
• Safety extra-low voltage
  • SELV according to EN 60950, PELV according to EN 60204, IEC61204
• Safety transformers for switch-mode power supplies
  • According to EN 61558-2-16

Emc / Shock / Vibration

• Interference immunity test acc. to
  • EN 55024, EN 55032, IEC61000-3-2,-3, IEC61000-4-2,-3,-4,-5,-6,-8,-11
• Noise emission in accordance with EN55032
  • Class B
• Shock resistance IEC 60068-2-27
  • 30 g in all directions
• Vibration resistance IEC 60068-2-6
  • 2.3 g

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• AC failure bridging time @ I
  • min. 20 ms
• Current limiting
  • > 120% IN
• Degree of efficiency
  • 92 %
• Derating
  • > 60°C / 75% @ 70°C
• Earth leakage current, max.
  • 3.5 mA
• Housing version
  • Metal, corrosion resistant
• Mounting position, installation notice
  • Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
• MTBF
  • >500.000h (25°C, IEC 61709 (SN29500))
• Operating temperature
  • -25 °C...70 °C
• Power factor (approx.)
  • > 0.95 @ 230 V AC
• Power loss, idling
  • 4.8 W
• Power loss, nominal load
  • 41.7 W
• Protection against reverse voltages from the load
  • 30…35 V DC
• Protection degree
  • IP20
• Series switching capability
  • Yes
• Short-circuit protection
  • Yes
• Start-up
  • ≥ -40 °C
• Status indication
  • LED red/green and relay (≥21.6 V DC LED green, relay on/ ≤20.6 LED red, relay off)
• Surge voltage category
  • III

Input

• AC current consumption
  • 2,3A @ 230 VAC / 4,8A @ 115 VAC
• AC input voltage range
  • 85…277 V AC
• Connection system
  • Screw connection
• DC current consumption
  • 1,5A @ 370 VDC / 4.8A @ 120 VDC
• DC input voltage range
  • 80...370 V DC
• Frequency range AC
  • 45…65 Hz
• Input fuse (internal)
  • Yes
• Inrush current
  • max. 15 A
• Rated input voltage
  • 100...240 V AC (wide-range input)
• Recommended back-up fuse
  • 16 A, char. B circuit breaker, 10 A, Char. C circuit breaker
• Standby power consumption, max.
  • 1 W
• Surge protection
  • Varistor

Insulation Coordination

• Humidity at operating temperature
  • 5...95 %, no condensation
• Insulation voltage input / earth
  • 3.5 kV
• Insulation voltage, input/output
  • 4 kV
• Insulation voltage output / earth
  • 0.5 kV
• Pollution severity
  • 2
• Protection class
  • I, with PE connection
• Surge voltage category
  • III

Output

• Connection system
  • Screw connection
• Continous output current @ U
  • 24 A @ 45°C, 15 A @ 70°C
• Current capacity (pulse) @ U
  • 60 A (2ms)
• Nominal output current for U
  • 20 A @ 60 °C
• Output power
  • 480 W
• Output voltage
  • 22.5...29.5 V (adjustable via potentiometer)
• Parallel connection option
  • yes, max. 3
• Protection against inverse voltage
  • Yes
• Rated output voltage
  • 24 V DC ± 1 %
• Reserve capacity @ U
  • 24 A (1 min), 30 A (4s), 100…240 V AC
• Residual ripple, breaking spikes
  • < 50 mVss @ UNenn, Full Load

Rated Data Ul

• Certificate No. (cURus)
  • E255651

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E258476

Signalling

• Contact load (NO contact)
  • max. 30 V DC / 1 A
• Floating contact
  • Yes
• Status indication
  • LED red/green and relay (≥21.6 V DC LED green, relay on/ ≤20.6 LED red, relay off)

Temperatures

• Humidity at operating temperature
  • 5...95 %, no condensation
• Operating temperature
  • -25 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
