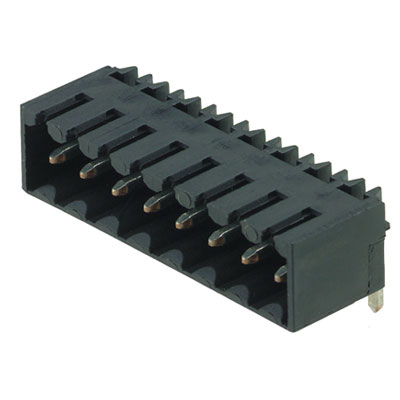

Weidmuller 1471420000

Approvals

• Approvals
  • EAC
  • UR
  • CSA
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• EClass 6.2
  • 27-26-07-04
• EClass 7.1
  • 27-44-04-02
• EClass 8.1
  • 27-44-04-02
• EClass 9.0
  • 27-44-04-02
• EClass 9.1
  • 27-44-04-02
• ETIM 3.0
  • EC001284
• ETIM 4.0
  • EC002637
• ETIM 5.0
  • EC002637
• ETIM 6.0
  • EC002637

Dimensions And Weights

• Net weight
  • 2.161 g

General Ordering Data

• Available until
  • 2016-07-08
• Delivery status
  • This article will no longer be available in the future.
• GTIN (EAN)
  • 4050118278521
• Order No.
  • 1471420000
• Packaging
  • 10
  • Tape (Ø 330 mm); Rs = 10
• Product data
  • IEC: 320 V / 15 A
  • UL: 300 V / 10 A
• Qty.
  • 385 pc(s).
• Type
  • SL-SMT 3.50/08/90G 2.6SN BK RL

Material Data

• Colour
  • Black
• Colour chart (similar)
  • RAL 9011
• Contact material
  • CuSn
• CTI
  • ≥ 175
• Insulating material
  • LCP GF
• Insulating material group
  • IIIa
• Insulation resistance
  • ≥ 10
• Layer structure of plug contact
  • 2-3 undefined Ni / 5-7 undefined Sn glossy
• Layer structure of solder connection
  • 2-3 µm Ni / 5-7 µm Sn glossy
• Max. relative humidity during storage
  • 80 %
• Moisture Level (MSL)
  • 1
• Operating temperature, max.
  • 100 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -30 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request.

Rated Data Acc. To CSA

• Certificate No. (CSA)
  • 200039-1176845
• Institute (CSA)
  • icon
• Rated current (use group B)
  • 10 A
• Rated current (use group D)
  • 10 A
• Rated voltage (Use group B)
  • 300 V
• Rated voltage (use group D)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.

Rated Data Acc. To IEC

• Rated current, max. no. of poles (Ta = 20°C)
  • 12 A
• Rated current, max. no. of poles (Ta = 40°C)
  • 10 A
• Rated current, min. no. of poles (Ta = 20°C)
  • 15 A
• Rated current, min. no. of poles (Ta = 40°C)
  • 13 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 2.5 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 320 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 160 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 160 V
• Short-time withstand current resistance
  • 3 x 1s with 100 A
• Tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To UL 1059

• Certificate No. (UR)
  • E60693
• Institute (UR)
  • icon
• Rated current (use group B)
  • 10 A
• Rated current (use group D)
  • 10 A
• Rated voltage (use group B)
  • 300 V
• Rated voltage (use group D)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.

System Specifications

• Can be coded
  • Yes
• Mounting onto the PCB
  • THT/THR solder connection
• No. of poles
  • 8
• Number of solder pins per pole
  • 1
• Outgoing elbow
  • 90°
• Outside diameter of solder pad
  • 2.3 mm
• Packaging
  • Tape (Ø 330 mm); Rs = 10
  • 10
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.138 inch
• Pitch in mm (P)
  • 3.5 mm
• Plugging cycles
  • 25
• Product family
  • OMNIMATE Signal - series BL/SL 3.50
• Push-in force/pole
  • 4 N
• Solder eyelet hole diameter (D)
  • 1.4 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • d = 1.2 mm, Octagonal
• Solder pin dimensions = d tolerance
  • 0 / -0,03 mm
• Solder pin length tolerance
  • 0 / -0.3 mm
• Template aperture diameter
  • 2.1 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 10
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from back-of-hand touch
• Volume resistance
  • 4.50 mΩ
• Withdrawal force per pole
  • 4 N
