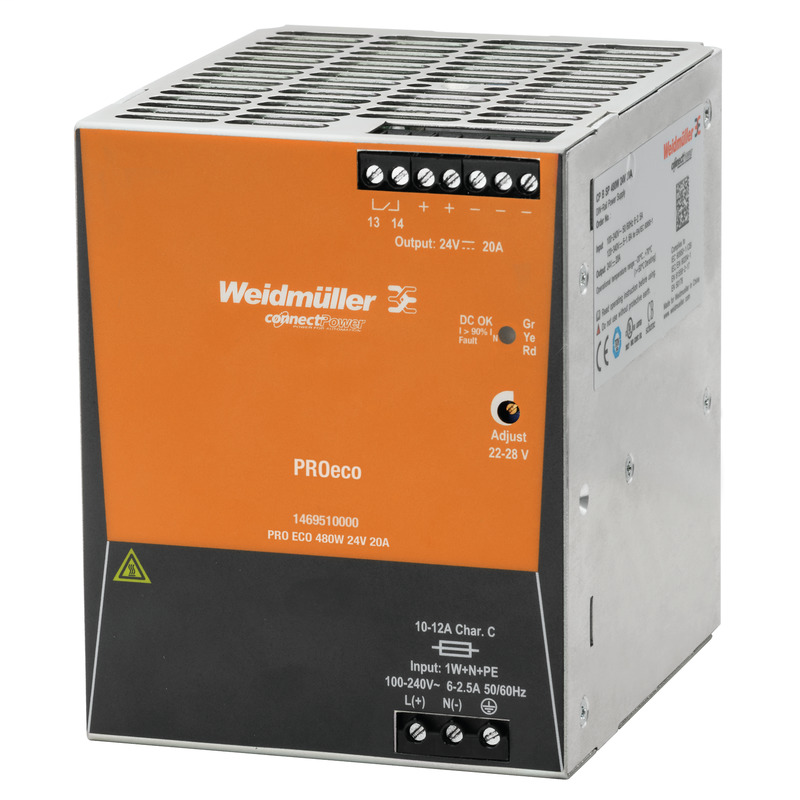

Weidmuller 1469510000

Approvals

• Approvals
  • CE, CULUS, EAC, TUEV
• ROHS
  • Conform
• UL File Number Search
  • E258476

Classifications

• eClass 10.0
  • 27-04-07-01
• eClass 9.0
  • 27-04-07-01
• eClass 9.1
  • 27-04-07-01
• ETIM 6.0
  • EC002540
• ETIM 7.0
  • EC002540

Connection Data (Input)

• Conductor cross-section, AWG/kcmil , max.
  • 12
• Conductor cross-section, AWG/kcmil , min.
  • 26
• Conductor cross-section, flexible , min.
  • 0.5 mm²
• Conductor cross-section, rigid , max.
  • 6 mm²
• Conductor cross-section, rigid , min.
  • 0.5 mm²
• Connection system
  • Screw connection
• Number of terminals
  • 3 for L/N/PE
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm
• Wire connection cross section, flexible (input), max.
  • 2.5 mm²

Connection Data (Output)

• Conductor cross-section, AWG/kcmil , max.
  • 10
• Conductor cross-section, AWG/kcmil , min.
  • 26
• Conductor cross-section, flexible , max.
  • 2.5 mm²
• Conductor cross-section, flexible , min.
  • 0.5 mm²
• Conductor cross-section, rigid , max.
  • 6 mm²
• Conductor cross-section, rigid , min.
  • 0.5 mm²
• Connection system
  • Screw connection
• Number of terminals
  • 7 (++,---,13,14)
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm

Dimensions And Weights

• Depth
  • 120 mm
• Depth (inches)
  • 4.724 inch
• Height
  • 125 mm
• Height (inches)
  • 4.921 inch
• Net weight
  • 1,557 g
• Width
  • 100 mm
• Width (inches)
  • 3.937 inch

Electrical Safety (Applied Standards)

• Electrical machine equipment
  • Acc. to EN60204
• For use with electronic equipment
  • Acc. to EN50178 / VDE0160
• Protection against dangerous shock currents
  • Acc. to VDE0106-101
• Protective separation / protection against electrical shock
  • VDE0100-410 / acc. to DIN57100-410
• Safety extra-low voltage
  • SELV according to EN 60950, PELV according to EN 60204
• Safety transformers for switch-mode power supplies
  • According to EN 61558-2-16

Emc / Shock / Vibration

• Interference immunity test acc. to
  • EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips)
• Limiting of mains voltage harmonic currents
  • According to EN 61000-3-2
• Noise emission in accordance with EN55032
  • Class B
• Shock resistance IEC 60068-2-27
  • 15 g In all directions
• Vibration resistance IEC 60068-2-6
  • 1 g according to EN 50178

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• AC failure bridging time @ I
  • > 20 ms @ 230 V AC / > 20 ms @ 115 V AC
• Degree of efficiency
  • 91%
• Earth leakage current, max.
  • 3.5 mA
• Housing version
  • Metal, corrosion resistant
• Indication
  • Green LED (Uoutput > 21.6 V DC), Yellow LED (loutput > 90 % IRated typ. ), red LED (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC)
• Max. perm. air humidity (operational)
  • 5 %…95 % RH
• Mounting position, installation notice
  • on terminal rail TS 35
• MTBF
  • > 500,000 h in accordance with IEC 61709 (SN29500)
• Operating temperature
  • -25 °C...70 °C
• Power factor (approx.)
  • > 0.98…230 V AC / > 0.98…115 V AC
• Power loss, idling
  • 5 W
• Power loss, nominal load
  • 43 W
• Protection against over-heating
  • Yes
• Protection against reverse voltages from the load
  • 30…35 V DC
• Protection degree
  • IP20
• Short-circuit protection
  • Yes

Input

• AC current consumption
  • 2,37 A @ 230 V AC / 5,2 A @ 110 V AC
• AC input voltage range
  • 85...264 V AC (derating at 100 V AC)
• Connection system
  • Screw connection
• DC current consumption
  • 1,55 A @ 370 V DC / 4,65 A @ 120 V DC
• DC input voltage range
  • 80...370 V DC (Derating @ 120 V DC)
• Frequency range AC
  • 47...63 Hz
• Input frequency
  • 47...63 Hz
• Input fuse (internal)
  • Yes
• Inrush current
  • max. 5 A
• Rated input voltage
  • 100...240 V AC (wide-range input)
• Recommended back-up fuse
  • 6 A / DI, safety fuse16 A, Char. B, circuit breaker6…8 A, Char. C, circuit breaker
• Surge protection
  • Varistor

Insulation Coordination

• Insulation voltage input / earth
  • 2 kV
• Insulation voltage, input/output
  • 3 kV
• Insulation voltage output / earth
  • 0.5 kV
• Pollution severity
  • 2
• Protection class
  • I, with PE connection

Output

• Capacitive load
  • unrestricted
• Connection system
  • Screw connection
• Continous output current @ U
  • 20 A @ 55 °C, 15 A @ 70 °C
• Nominal output current for U
  • 20 A @ 55 °C
• Output power
  • 480 W
• Output voltage
  • 22...28 V (adjustable via potentiometer)
• Overload protection
  • Yes
• Parallel connection option
  • yes, max. 3
• Protection against inverse voltage
  • Yes
• Ramp-up time
  • ≤ 100 ms
• Rated output voltage
  • 24 V DC ± 1 %
• Residual ripple, breaking spikes
  • < 50 mVPP @ 24 V DC, IN

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E258476

Signalling

• Contact load (NO contact)
  • max. 30 V DC / 1 A
• Floating contact
  • Yes
• Relay on/off
  • Output voltage >21.6 V DC/ <20.4 V DC, overload

Temperatures

• Operating temperature
  • -25 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
