Weidmuller 1463640100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

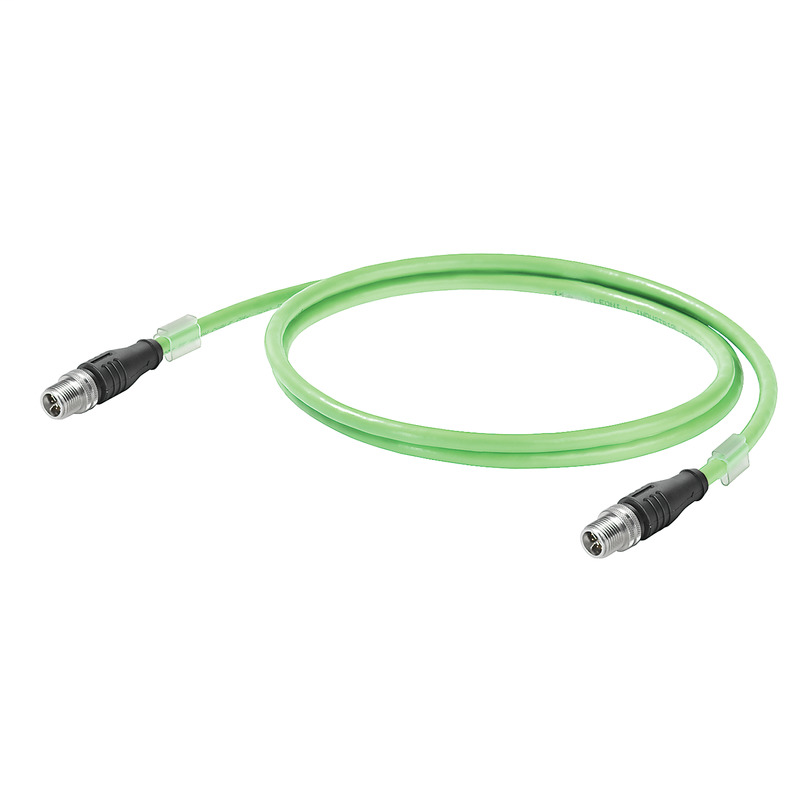

System cable, M12 X-type IP 67 straight male, M12 X-type IP 67 straight male, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 10 mIE-C6EL8UG0100XCSXCS-E
Weidmuller 1463640100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Arrangement of wire cores
- Twisted pair
- Colour sequence or wires - wire pairs
- white - blue, white - orange, white - green, white - brown
- Complete shielding
- Shielding braid made from copper wiring
- Copper diameter
- 0.48 µm
- Cross-section
- 4*2*AWG 26/7 - 4*2*0.128 mm²
- Insulation
- PE
- Insulation cross-section
- 0.98 mm
- Material sheath
- PUR
- Number of wires
- 8
- Sheath diameter, max.
- 6.7 mm
- Sheath diameter, min.
- 6.1 mm
- Sheathing colour
- green (RAL 6018)
- Shielding
- S/FTP
- Shielding braid thickness
- 0.1 mm
- Standard designations
- S/FTP, LIO2YSC11Y 4x2x0.15 PIMF FRNC GN
- Strands
- 7
- Wire material
- Stranded tin-plated copper wire
- Wire pair shielding
- Aluminium foil
- Wiring
- EIA/TIA T568 B
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
Dimensions And Weights
- Insulation cross-section
- 0.98 mm
- Length
- 10 m
- Length (inches)
- 0.394 inch
- Net weight
- 360 g
Electrical Properties Of Cable
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Characteristic impedance
- 100 ± 5 Ω at 100MHz
- Loop resistance
- 290 Ω/km
- Signal propagation time
- 5.2 ns/m
- Speed
- 10 GBit/s
- Test voltage: wire-wire-shield
- 700 Vrms, 50 Hz, 1 min
- Transfer impedance
- 15 mΩ/m at 1 MHz, 10 mΩ/m at 10 MHz, 30 mΩ/m at 30 MHz
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Abrasion resistance
- very good
- Halogen
- halogen-free, according to IEC 60754-1
- Impervious to smoke
- According to IEC 61034
- Min. bending radius, once only
- 5 x cable diameter
- Min. bending radius, repetitive
- 10 x cable diameter
- Resistance to oils
- in accordance with IEC 60811-2-1
- Resistance to spread of flame
- in accordance with IEC 60332-1-2
- Speed
- 10 GBit/s
Plug
- Connector left
- M12 X-type IP 67 straight male
- Connector right
- M12 X-type IP 67 straight male
Standards
- Impervious to smoke
- According to IEC 61034
- Standard, assembly
- UL Style 20963
Temperatures
- Installation temperature
- -20 °C...60 °C
- Operating temperature
- -40 °C...80 °C
- Operating temperature, max.
- 80 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
