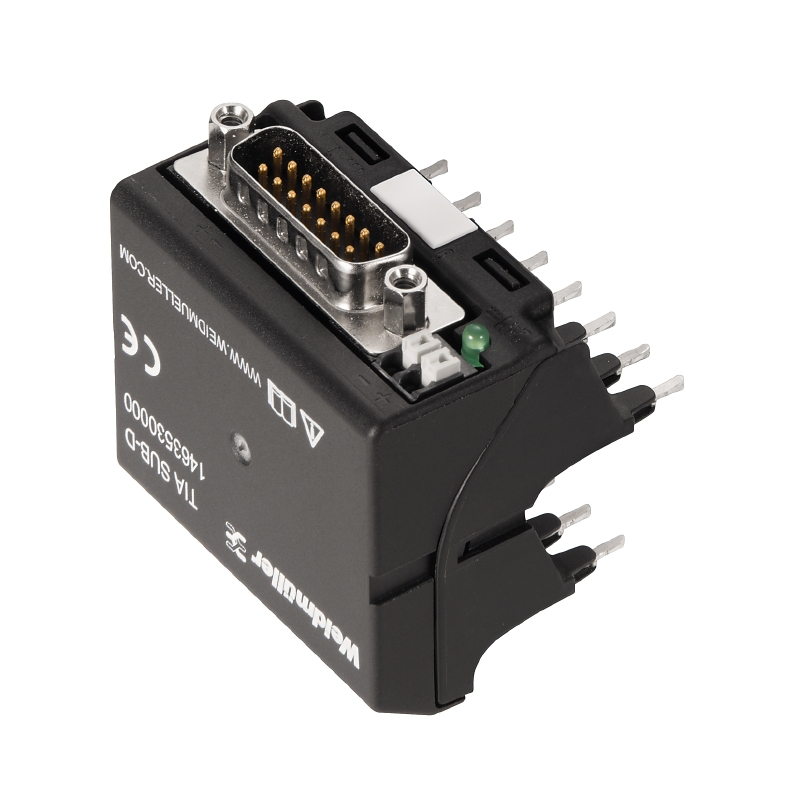

Weidmuller 1463530000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TERMSERIES, Adapter, Sub-D, 15-pole, DIN 41652 / IEC 60807, Number of signal paths: 8, Rated voltage : 24 V DC, Rated current (per signal path): 125 mATIA SUBD 15S
Weidmuller 1463530000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, DNV GL
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- eClass 10.0
- 27-14-11-52
- eClass 9.0
- 27-14-11-52
- eClass 9.1
- 27-14-11-52
- ETIM 6.0
- EC002780
- ETIM 7.0
- EC002780
Connection Data (Signal)
- Plug type
- Sub-D, 15-pole, DIN 41652 / IEC 60807
Connection Data (Supply)
- Blade size (supply)
- 0.6 x 3.5 mm
- Clamping range, rated connection, max.
- 1.5 mm²
- Clamping range, rated connection, min.
- 0.13 mm²
- Number of terminals
- 2 (+,−)
- Wire connection method
- PUSH IN
Dimensions And Weights
- Depth
- 52 mm
- Depth (inches)
- 2.047 inch
- Height
- 43 mm
- Height (inches)
- 1.693 inch
- Net weight
- 53.18 g
- Width
- 51 mm
- Width (inches)
- 2.008 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Further Details Of Approvals / Standards
- Certificate no. (cULus)
- E141197
General Data
- Colour
- black
- UL 94 flammability rating
- V-0
Insulation Coordination
- Impulse withstand voltage
- 1.5 kV
- Pollution severity
- 2
- Protection degree
- IP20 in installed state
- Rated voltage
- 32 V
- Surge voltage category
- III
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
Signals
- Current (per signal path), max.
- 1 A
- Number of signal paths
- 8
- Rated current (per signal path)
- 125 mA
- Rated voltage
- 24 V DC
- Total current of all signals, max.
- 1 A
- Voltage, max.
- 30 V DC
Supply
- Status display
- Green LED
- Voltage supply
- 24 V DC ± 20 %
Temperatures
- Humidity
- 5...95% (indoor), Tu = 40°C, without condensation
- Operating temperature
- -40 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
