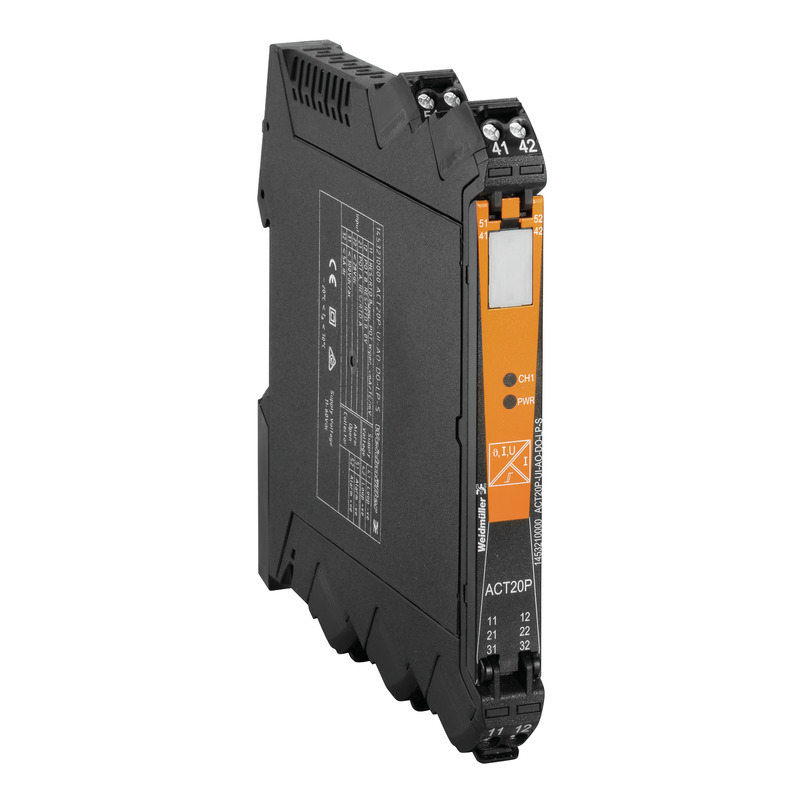

Weidmuller 1453210000

Approvals

• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-21-01-20
• eClass 9.0
  • 27-21-01-20
• eClass 9.1
  • 27-21-01-90
• ETIM 6.0
  • EC002653
• ETIM 7.0
  • EC002653

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26

Dimensions And Weights

• Depth
  • 113.6 mm
• Depth (inches)
  • 4.472 inch
• Height
  • 119.2 mm
• Height (inches)
  • 4.693 inch
• Net weight
  • 157 g
• Width
  • 12.5 mm
• Width (inches)
  • 0.492 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • < 0.1 % of measuring range
• Cold-junction compensation error
  • ±1.0°C @ -20° C - 65°C
• Configuration
  • With FDT/DTM software
• Galvanic isolation
  • 2-way isolator, between input/output
• Rail
  • TS 35
• Step response time
  • 450 ms
• Temperature coefficient
  • < 0.02 °C of measuring range / °C
• Voltage supply
  • Output loop powered, (10…45 V)

Input

• Cable-length compensation
  • < ±0.002 Ω per cable resistance Ω
• Influence of the sensor cable resistance
  • 5 Ω @ RTD- Kabel
• Input current
  • configurable, ± 5 A DC (min. measurement range 0.5 A)
• Input measurement range
  • PT100 -200…+850 °C, Thermocouple type J -100…+1200°C, Thermocouple type K -200…+1370°C, customerization
• Input resistance, current
  • 40 Ω
• Input resistance, voltage
  • 2 MΩ, > 10 MΩ
• Input voltage
  • configurable, ± 300 V DC (min. measurement range 100 V), 0...300 V AC (min. measurement range 100 V)
• Number of inputs
  • 1
• Potentiometer
  • 1.2…500 kΩ
• Resistance
  • 0…750 Ω, 0…1.5 kΩ, 0…12 kΩ
• Sensor
  • PT100 / 2-/3-/4-wire, PT1000/2-/3-/4-wire, PT200, N120, Thermocouples: B, E, J, K, L, N, R, S, T, U
• Sensor supply
  • 0.1 mA / 0.05 mA (depending on measuring range) @ RTD cable
• Type
  • Universal signal isolator / signal amplifier, thermocouple, RTD

Insulation Coordination

• Galvanic isolation
  • 2-way isolator, between input/output
• Impulse withstand voltage
  • 4 kV (1.2/50 µs)
• Insulation voltage
  • 3.51 kV between input and output
• Pollution severity
  • 2
• Rated voltage
  • 300 Veff
• Surge voltage category
  • III

Output

• cold junction compensation
  • ≤±1°C (-20°C…60°C)
• load impedance current
  • typ. 700 Ω @ 24 V DC
• Number of outputs
  • 1
• Output current
  • 4...20 mA, 20…4 mA, Current loop
• Output signal limit
  • Harmonics: <10 mV (peak to peak)
• Supply voltage (output)
  • via output current loop
• Type
  • Output-loop powered

Output (Digital)

• Rated switching current
  • 20 mA
• Rated switching voltage
  • ≤ 30 V DC
• Type
  • Transistor, open collector

Product Information

• Product information
  • The ACT20P-UI-AO-DO-LP-X converts and isolates current, voltage, potentiometer and temperature sensor signals (mA, A, mV, V, potentiometer, RTD and TC). The transmit function between the input and output can be set via the configuration program either to predefined functions (x0.5, x, x2) or via a freely definable function table. The device is powered via the output current loop. Features Configuration and monitoring are performed via FDT/DTM-Software „WI-Manager“. The active or passive signal inputs for RTD, TC, potentiometer, mV, V, mA and A are completely electrically isolated. The TC signal input has internal cold-junction compensation. Alarm output (for example, for limit monitoring, sensor error detection and more) 3-way galvanic isolation between input, output/supply and alarm output.

Temperatures

• Ambient temperature
  • -20 °C...+70 °C
• Humidity
  • 10…90 %, no condensation
• Operating temperature
  • -20 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -20 °C
• Storage temperature
  • -20 °C...70 °C
• Storage temperature, max.
  • 70 °C
• Storage temperature, min.
  • -20 °C
