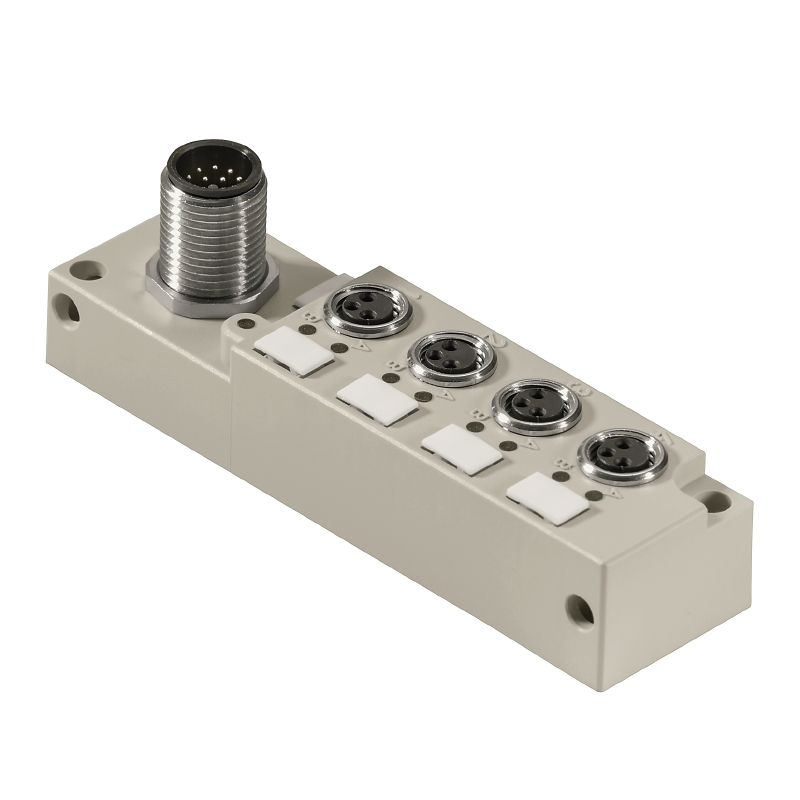

Weidmuller 1449400000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1449400000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-01-08
- eClass 9.0
- 27-44-01-08
- eClass 9.1
- 27-44-01-08
- ETIM 6.0
- EC002585
- ETIM 7.0
- EC002585
Connection Data
- Distributor outlet
- with M12 outlet, A-coded, 12-pole
Dimensions And Weights
- Net weight
- 66.5 g
Electrical Data
- Current per signal
- 1 A
- Max. current-carrying capacity per slot
- 2 A
- Rated voltage, max.
- 30 V
- Rated voltage, min.
- 10 V
- Total current
- 6 A
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Technical Data
- Connection thread
- M8
- Fire behaviour
- V-0
- LED
- Yes
- Number of contact sockets
- 4
- Pollution severity
- 3
- Protection degree
- IP68
Material Data
- Contact carrier material
- PBT (UL 94 V0)
- Contact material
- CuZn
- Contact surface
- Gold-plated
- Housing colour
- grey, RAL 7032
- Housing main material
- Pocan
- Screw socket
- Nickel-plated CuZn
Technical Data Cable
- Suitable for cable carriers
- No
Temperatures
- Operating temperature
- -25 - 80°C
- Operating temperature, max.
- 80 °C
- Operating temperature, min.
- -25 °C
