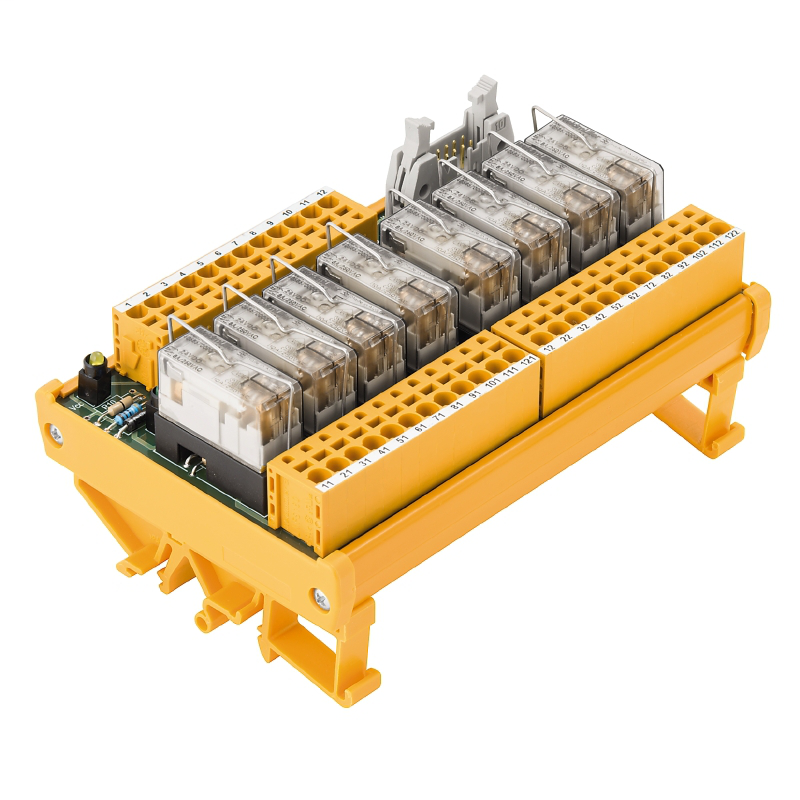

Weidmuller 1447910000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface, RSM, Screw connectionRSM-8 48V+ 1CO S
Weidmuller 1447910000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-52
- eClass 9.0
- 27-14-11-52
- eClass 9.1
- 27-24-22-16
- ETIM 6.0
- EC002780
- ETIM 7.0
- EC002780
Connection Data
- Connection (field side)
- LP 5.08mm
- Connection on control side
- LP 5.08 + plug-in connector in acc. with IEC60603-13 / DIN41651, 10-pin
Connection Field
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Max. wire cross-section, AWG
- AWG 12
- Min. wire cross-section, AWG
- AWG 26
- Sleeve with plastic collar, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
Dimensions And Weights
- Height
- 66 mm
- Height (inches)
- 2.598 inch
- Length
- 130 mm
- Length (inches)
- 5.118 inch
- Net weight
- 337 g
- Width
- 87 mm
- Width (inches)
- 3.425 inch
General Data
- LED status display per relay
- green
- LED status of the supply voltage
- yellow
Insulation Coordinates (En50178)
- Clearance input/output
- ≥ 5.5 mm
- Insulation test voltage
- 1.2 kVAC
- Overvoltage category input/output
- III
- Overvoltage category output/output
- II
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 6 kV
- Rated input insulation voltage
- < 50 V AC
- Rated output insulation voltage
- 250 V AC
Insulation Coordination (En50178)
- Insulation test voltage
- 1.2 kVAC
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 6 kV
Rating Data
- Mechanical service life
- 30 x 106 switching cycles
Ratings Data Input
- Input current
- 8.7 mA
- Input voltage
- 48 V DC ± 10%
Ratings Data Output
- Contact material
- AgNi 90/10
- Max. AC continuous current
- 6 A
- Minimum contact current
- 0.1 A
- Minimum contact voltage
- 5 V
- Rated voltage (text)
- ≤ 250 V AC
- Relay type
- RCL
- Type of output
- Potential-free contact
Temperatures
- Operating temperature
- -25...50 °C
- Operating temperature, max.
- 50 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40...60 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -40 °C
