Weidmuller 1439640000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

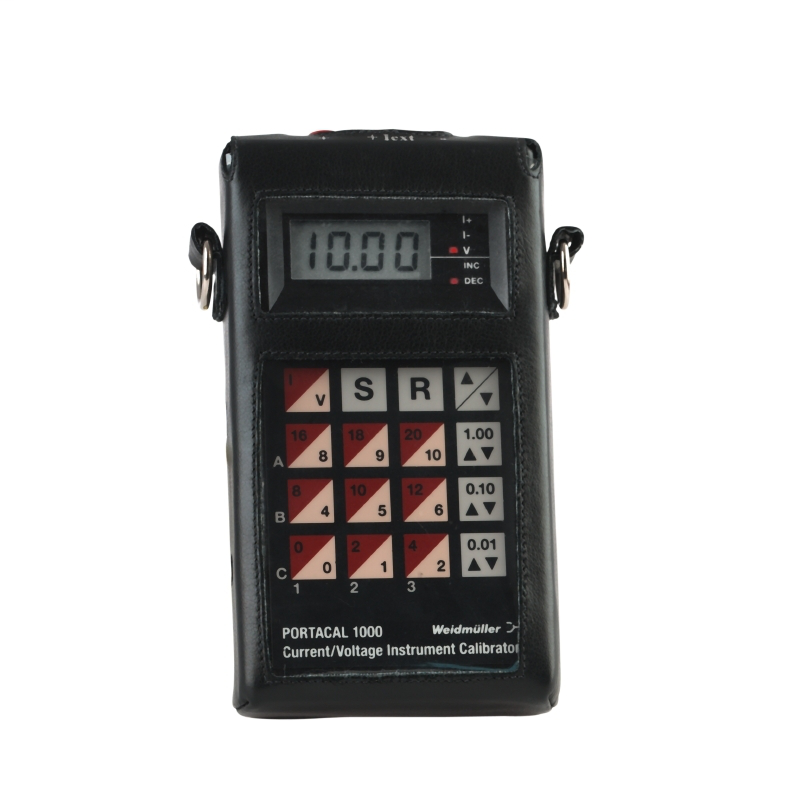

OMNIMATE Signal - series PM, Calibration devicePORTACAL 1000EU
Weidmuller 1439640000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Auto Step / Ramp Mode
- Number of recorded values (Auto Step)
- 2...9
- Ramp (Auto Step)
- Output via programmable ramp function
- Step (Auto Step)
- Output of each value within a certain time frame
- Time frame (Auto Step)
- 10...4200 s
Classifications
- eClass 10.0
- 21-17-08-90
- eClass 9.0
- 21-17-08-90
- eClass 9.1
- 27-21-92-90
- ETIM 6.0
- EC002744
- ETIM 7.0
- EC002744
Connection Data
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.5 mm²
- Clamping range, rated connection
- 1.5 mm²
- Type of connection
- Socket connector
Dimensions And Weights
- Height
- 180 mm
- Height (inches)
- 7.087 inch
- Length
- 44 mm
- Length (inches)
- 1.732 inch
- Net weight
- 836 g
- Weight
- 836 g
- Width
- 100 mm
- Width (inches)
- 3.937 inch
Display
- Display value
- Percentage or real value display
- Type
- 4-character, LCD display, 12 mm
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Functions
- Temperature coefficient
- < 0.01% / °C @ 100 %
General Data
- Temperature coefficient
- < 0.01% / °C @ 100 %
- Type of connection
- Socket connector
- Voltage supply
- 4 AA-sized batteries
- Weight
- 836 g
Input
- Supply voltage (loop-powered mode)
- 16 V ± 10%
Input Current Mode
- Accuracy (current mode input)
- ± 1 µA or ± 1 digital step
- Input current (current mode input)
- 0...26 mA
- Input resistance (current mode input)
- 47 Ω
Input Voltage Mode
- Accuracy (voltage mode input)
- ± 5 µA or ± 1 digital step
- Input resistance (voltage mode input)
- 200 kΩ
- Input voltage (voltage mode input)
- 0...13 V
Insulation Coordination
- EMC standards
- DIN EN 61326
- Standards
- DIN EN 50178
Keyboard
- Calibration (keyboard)
- Adjustable constant values:0. 2, 4, 8, 10. 16, 18, 20 mA0. 1, 2, 4, 5, 6, 8, 9, 10 V
- Internal memory (keyboard)
- 9 variable values
- Type (keyboard)
- 16 buttons with acoustic signal
Loop Powered Mode
- Accuracy (loop-powered mode)
- ± 5 µA or ± 1 digital step
- Input current (loop-powered mode)
- 0...26 mA
- Supply voltage (loop-powered mode)
- 16 V ± 10%
- Type (loop-powered mode)
- Mode for loop-powered signal converter
Output Current Mode
- Accuracy (current mode output)
- ± 5 µA
- Input voltage or current sink, max. (current mode output)
- 9...45 V DC
- Internal memory (current mode output)
- 9 user-defined currents
- Load resistance, max. (current mode output)
- 600 Ω 20 mA (current source)100 Ω (current sink)
- Output current (current mode output)
- 0...26 mA
- Residual ripple (current mode output)
- < 1 µA
- Resolution (current mode output)
- 0.01 mA
Output Voltage Mode
- Accuracy (voltage mode output)
- ± 5 mV
- Internal memory (voltage mode output)
- 9 user-defined voltages
- Load current (voltage mode output)
- 0...10 mA
- Output voltage, note
- 0...13 V
- Residual ripple (voltage mode output)
- < 1 mV
- Resolution (voltage mode output)
- 0.01 V
Temperatures
- Operating temperature
- 0 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- 0 °C
- Storage temperature
- -25 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -25 °C
