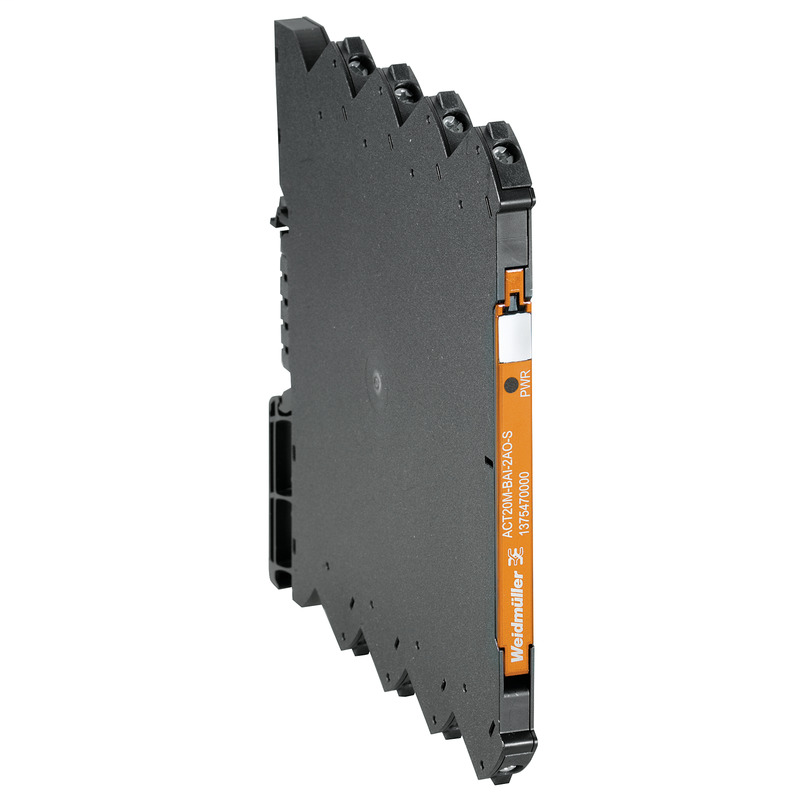

Weidmuller 1435590000

Approvals

• Approvals
  • CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
• ROHS
  • Conform
• UL File Number Search
  • E337701

Classifications

• eClass 10.0
  • 27-21-01-29
• eClass 9.0
  • 27-21-01-29
• eClass 9.1
  • 27-21-01-29
• ETIM 6.0
  • EC002919
• ETIM 7.0
  • EC002919

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 30

Data For Ex Applications (Atex)

• Marking
  • II 3 G Ex nA IIC T4 Gc

Dimensions And Weights

• Depth
  • 114.3 mm
• Depth (inches)
  • 4.5 inch
• Height
  • 112.5 mm
• Height (inches)
  • 4.429 inch
• Net weight
  • 80 g
• Width
  • 6.1 mm
• Width (inches)
  • 0.24 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • absolute accuracy: < ±0.05 % of the measurement range, RTD (PT100) Basic accuracy: < ±0.1 °C of the measurement range, TC (J,K) Basic accuracy: < ±0.5 °C of the measurement range
• Cold-junction compensation error
  • ±(2.0 °C + 0.4 °C x Δt) Δt = inside temperature – ambient temperature
• Configuration
  • DIP switch
• Galvanic isolation
  • 2-way isolator
• Power consumption, max.
  • 0.8 W
• Power consumption, typ.
  • 0.48 W
• Rail
  • TS 35
• Step response time
  • ≤ 30 ms, < 300 ms
• Temperature coefficient
  • RTD (PT100) ≤0.01 % of the measurement range⁄°C or 0.02 °C ⁄ °C, TC (J,K) 0.1 °C ⁄ °C
• Voltage supply
  • Output loop powered, 6…35 V

Input

• Influence of the sensor cable resistance
  • < 0.002 Ω⁄Ω
• Input measurement range
  • PT100 -200…+850 °C, Thermocouple type J -100…+1200°C, Thermocouple type K -200…+1370°C
• Line resistance in measuring circuit
  • 50 Ω@ RTD (Pt100), 10 kΩ @ TC (J, K)
• Number of inputs
  • 1
• Sensor
  • PT100 / 2-/3-/4-wire, Thermocouple acc. to IEC 584, type: J, Thermocouple acc. to IEC 584, type: K
• Temperature input range
  • Configurable, min. measurement range 10°C (RTD), min. measurement range 50°C (TC)

Insulation Coordination

• EMC standards
  • IEC 61326-1, NE 21
• Galvanic isolation
  • 2-way isolator
• Insulation voltage
  • 2.5 kVeff /1 min.
• Pollution severity
  • 2
• Rated voltage
  • 300 Veff
• Surge voltage category
  • II

Output

• cold junction compensation
  • configurable internal or external cold-junction compensation (thermocouple)
• Number of outputs
  • 1
• Output current
  • configurable, 4...20 mA, 20…4 mA
• Supply voltage (output)
  • 16,8 V…31,2 V
• Wire break detection
  • 3.5 mA ⁄ 23 mA ⁄ none

Probability Of Failure

• MTBF
  • 207 Years

Product Information

• Product information
  • The ACT20M-RTCI-CO-OLP-S passive configurable temperature transducer isolates and converts analogue signals. An analogue RTD (Type Pt100) or TC (Type J, K) input signal is linearly converted into an analogue output signal and galvanically isolated. Power is supplied through the output measurement circuit (output- loop powered).

Rated Data Ul

• UL certificate
  • E337701.pdf

Ratings Iecex/Atex/Cul

• Certificate No. (ATEX)
  • KEMA10ATEX0183X
• Certificate no. (cULus)
  • E337701
• Certificate No. (IECEX)
  • IECEXKEM10.0090X

Temperatures

• Ambient temperature
  • -25 °C...+70 °C
• Humidity
  • 40 °C / 93 % rel. humidity, no condensation
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
