Description

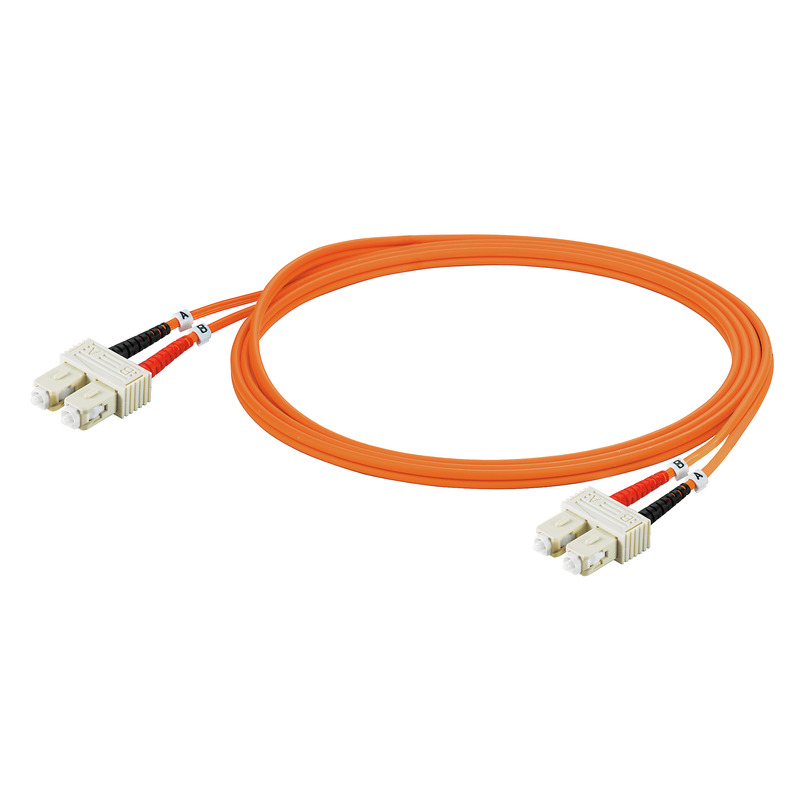

Patch cable, duplex clip included, SC duplex IP 20, SC duplex IP 20, 62.5 µm, LSZH, 3 mIE-FM6Z2LO0003MSD0SD0-X
Weidmuller 1433960030 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Cable layout
- ZIPCORD
- Core diameter
- 62.5 µm
- Material sheath
- LSZH
- Sheath diameter
- 2.8 * 5.7 mm
- Sheathing colour
- orange
- Standard designations
- I-V(ZN)H
Classifications
- eClass 10.0
- 27-06-10-03
- eClass 9.0
- 27-06-10-03
- eClass 9.1
- 27-06-10-03
- ETIM 6.0
- EC002607
- ETIM 7.0
- EC002607
Dimensions And Weights
- Length
- 3 m
- Length (inches)
- 0.118 inch
- Net weight
- 35 g
Fibre-Optic
- Attenuation
- ≤ 3.0 dB/km at 850 nm, ≤0.8 dB/km at 1300 nm
- Bandwidth
- ≥ 200 MHz*km at 850 nm, ≥ 600 MHz*km at 1300 nm
- Fibre type
- GOF, Multimode, OM1
Mechanical And Material Properties Of Cable
- Halogen
- No
- Min. bending radius, once only
- 28 mm
- Min. bending radius, repetitive
- 56 mm
Plug
- Connector left
- SC duplex IP 20
- Connector right
- SC duplex IP 20
Standards
- Connector standard
- IEC 61754-4
Temperatures
- Operating temperature
- -20 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -20 °C
