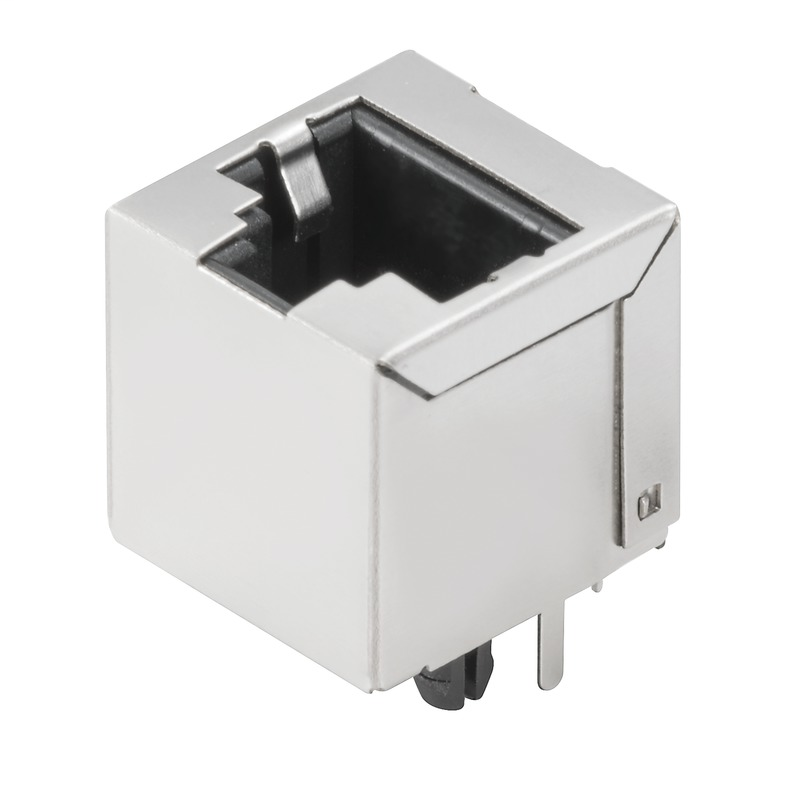

Weidmuller 1433920000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1433920000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- UL
- ROHS
- Conform
- UL File Number Search
- E471884
Classifications
- eClass 6.2
- 27-25-05-04
- eClass 7.1
- 27-25-05-04
- eClass 8.1
- 19-17-01-25
- eClass 9.0
- 19-17-01-25
- eClass 9.1
- 27-44-09-90
- ETIM 6.0
- EC001121
Dimensions And Weights
- Net weight
- 0.44 g
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Dielectric strength, contact / contact
- ≥ 1000 V DC
- Insulation resistance
- > 500 MΩ
- Rated current
- 1.5 A
- Rated voltage
- 125 V AC
General Ordering Data
- GTIN (EAN)
- 4050118238594
- Order No.
- 1433920000
- Packaging
- 10
- Tray; Rs = 10
- Qty.
- 80 pc(s).
- Type
- IE-PCB-RJ45-THR-C6-S
- Version
- RJ45 PCB socket, Cat.6 (ISO/IEC 11801), 180°, THT solder connection, IP20
Material Data
- Contact material
- Phosphorus bronze
- Contact surface
- Selective gold 30 µ"
- CTI
- ≥ 500
- Insulating material
- PA 66
- Insulating material group
- II
- Shielding material
- Copper alloy
- Shield surface
- nickel-plated
- UL 94 flammability rating
- V-0
Product Information
- Descriptive text ordering data
- Other versions on request
Standards
- Certificate No. (UL)
- E471884
- Connector standard
- IEC 60603-7-51
System Parameters
- Category
- Cat.6 (ISO/IEC 11801)
- Insulation resistance
- > 500 MΩ
- Mounting onto the PCB
- THT solder connection
- No. of poles
- 8
- Number of solder pins per pole
- 1
- Outgoing elbow
- 180°
- Packaging
- 10
- Tray; Rs = 10
- Pin series quantity
- 1
- Pitch in inches (P)
- 0.05 inch
- Pitch in mm (P)
- 1.27 mm
- Plugging cycles
- 750
- Protection degree
- IP20
- Shielding
- Yes
- Solder eyelet hole diameter (D)
- 0.9 mm
- Solder eyelet hole diameter tolerance (D)
- ± 0.1 mm
- Solder pin dimensions
- 0.40 x 0.30 mm
- Solder pin length (l)
- 3.2 mm
- Wiring
- 8-core
Temperatures
- Operating temperature
- -40 °C...85 °C
