Weidmuller 1428840000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

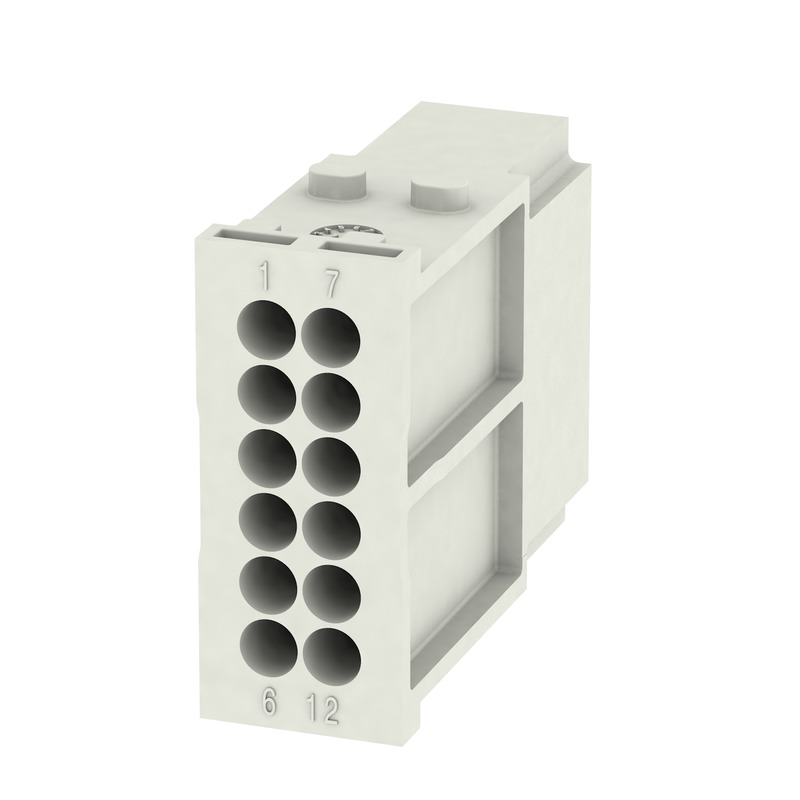

Module, 12-pole, Pin, ModuleHDC MHD 12 MC
Weidmuller 1428840000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E92202
Classifications
- eClass 10.0
- 27-44-02-92
- eClass 9.0
- 27-44-02-92
- eClass 9.1
- 27-44-02-18
- ETIM 6.0
- EC002312
- ETIM 7.0
- EC002312
Connection Data
- Conductor cross-section, max.
- 2.5 mm²
- Conductor cross-section, min.
- 0.14 mm²
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section AWG, min.
- AWG 26
Design
- Product family
- ModuPlug
- Product type
- Module
- Type
- Pin
- Type of connection
- Crimp connection
Dimensions And Weights
- Depth
- 34 mm
- Depth (inches)
- 1.339 inch
- Height
- 38.9 mm
- Height (inches)
- 1.531 inch
- Net weight
- 9.745 g
- Width
- 14.5 mm
- Width (inches)
- 0.571 inch
General Data
- Insulation strength
- 1012 Ω
- Material
- Polycarbonate, glass fibre reinforced
- Number of poles
- 12
- Plugging cycles
- ≥ 500
- Pollution severity
- 3
- Rated current (DIN EN 61984)
- 10 A
- Rated impulse voltage (DIN EN 61984)
- 4 kV
- Rated voltage according to UL/CSA
- 600 V
- Rated voltage (DIN EN 61984)
- 250 V
- Required plug-in slots
- 1
- Series
- ModuPlug
- Surge voltage category
- III
- Type
- Pin
- UL 94 flammability rating
- V-0
General Descriptions
- Number of poles
- 12
- Plugging cycles
- ≥ 500
Material
- Material
- Polycarbonate, glass fibre reinforced
- UL 94 flammability rating
- V-0
Pe Connection Data
- Connection type PE
- Screw connection via module frame
Temperatures
- Limit temperature
- -40 °C ... 125 °C
Version
- Conductor cross-section, max.
- 2.5 mm²
- Conductor cross-section, min.
- 0.14 mm²
- Stripping length, rated connection
- 8 mm
- Type of connection
- Crimp connection
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section AWG, min.
- AWG 26
