Description

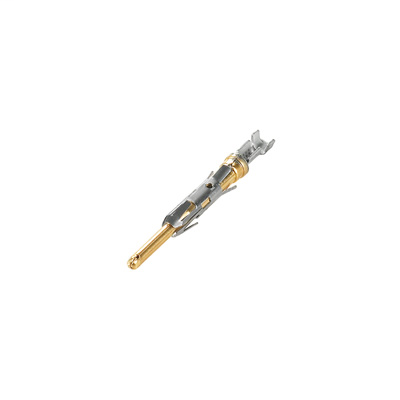

PCB plug-in connector, Crimp contact, Individual contact, Pin – long, tinned, Max. clamping range : 1.5 mm²CSL1,6E18-16 SN I2,5
Weidmuller 1427700000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-02-04
- eClass 9.0
- 27-44-02-04
- eClass 9.1
- 27-44-02-04
- ETIM 6.0
- EC000796
- ETIM 7.0
- EC000796
- UNSPSC
- 30-21-19-23
Conductors Suitable For Connection
- Clamping range, max.
- 1.5 mm²
- Clamping range, min.
- 0.75 mm²
- Max. clamping range
- 1.5 mm²
- Outer diameter of insulation, max.
- 2.5 mm
- Outer diameter of insulation, min.
- 2 mm
- Wire connection cross section AWG, max.
- AWG 16
- Wire connection cross section AWG, min.
- AWG 18
Dimensions And Weights
- Net weight
- 0.568 g
Material Data
- Contact material
- CuZn
- Contact surface
- tinned
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Operating temperature, min.
- -50 °C
- Storage temperature, max.
- 55 °C
- Storage temperature, min.
- -25 °C
- Temperature range, installation, max.
- 100 °C
- Temperature range, installation, min.
- -25 °C
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
- Notes
- The long pins can be used with the standard pins as leading contacts.
Packing
- Packaging
- Box
- VPE height
- 90 mm
- VPE length
- 40 mm
- VPE width
- 70 mm
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
System Parameters
- Number of poles
- 1
- Product family
- OMNIMATE Power - Powerbus series
- Stripping length
- 4 mm
- Volume resistance
- 3.30 mΩ
- Wire connection method
- Crimp connection
