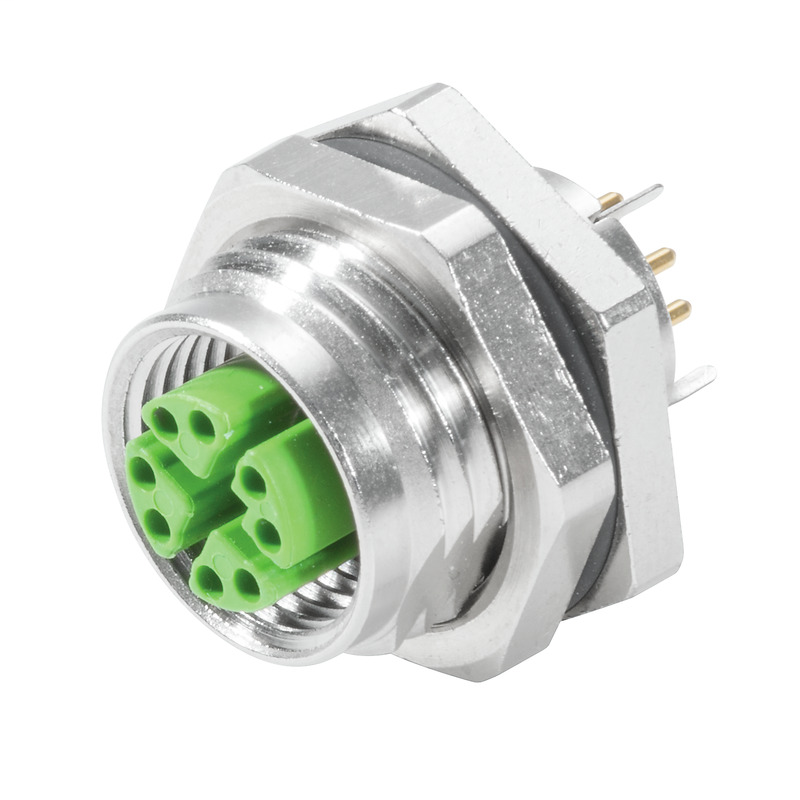

Weidmuller 1427670000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PCB plug-in connector, M12, Solder connection, Cat.6A / Class EA (ISO/IEC 11801 2010), IP67, when screwed in, Reflow compatible, Back panel mounting, 1-partIE-PCBR-M12X-S-180
Weidmuller 1427670000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-03-09
- eClass 9.0
- 27-44-03-09
- eClass 9.1
- 27-44-03-09
- ETIM 6.0
- EC002638
- ETIM 7.0
- EC002638
Dimensions And Weights
- Net weight
- 16.2 g
- Wall thickness, max.
- 2.5 mm
- Wall thickness, min.
- 0.9 mm
Electrical Properties
- Current-carrying capacity at 50 °C
- 0.5 A @ 40 °C
- Insulation strength
- 100 MΩ
- Rated voltage
- 48 V
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Info
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Configuration
- Reflow compatible, Back panel mounting
- Connection 1
- M12
- Connection 2
- Solder connection
- Connection thread
- M12
- Contact material
- CuZn
- Contact surface
- Gold over nickel
- Housing main material
- CuZn
- Plugging cycles
- ≥ 100
- Protection degree
- IP67, when screwed in
- Shielding
- 360° all-round enclosure
- Shielding material
- CuSn
Standards
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 61076-2-109
Temperatures
- Operating temperature
- -40 °C...85 °C
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
