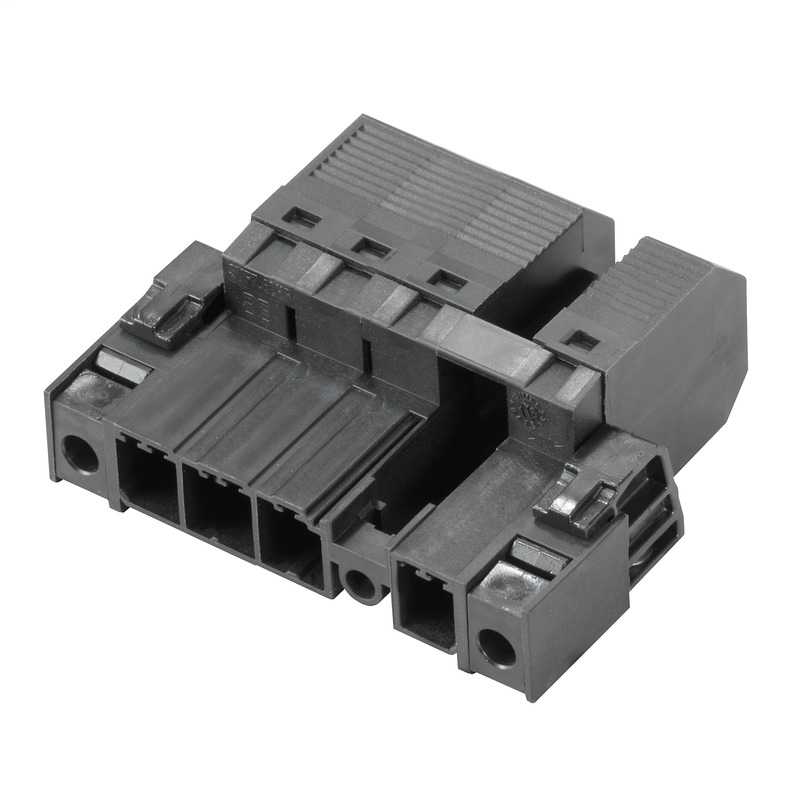

Weidmuller 1427220000

Approvals

• Approvals
  • CSA, cURus, EAC
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-44-03-09
• eClass 9.0
  • 27-44-03-09
• eClass 9.1
  • 27-44-03-09
• ETIM 6.0
  • EC002638
• ETIM 7.0
  • EC002638

Conductors Suitable For Connection

• Clamping range, max.
  • 10 mm²
• Clamping range, min.
  • 0.5 mm²
• Flexible, max. H05(07) V-K
  • 10 mm²
• Flexible, min. H05(07) V-K
  • 0.5 mm²
• Max. clamping range
  • 10 mm²
• Solid, max. H05(07) V-U
  • 6 mm²
• Solid, min. H05(07) V-U
  • 0.5 mm²
• Stranded, max. H07V-R
  • 10 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 6 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 1.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 6 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 1.5 mm²

Dimensions And Weights

• Net weight
  • 17 g

Material Data

• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• Comparative Tracking Index (CTI)
  • ≥ 500
• Contact material
  • Copper alloy
• Contact surface
  • tinned
• GWFI
  • 960 °C
• Insulating material
  • PA GF
• Insulating material group
  • II
• Insulation strength
  • ≥ 108 Ω
• Layer structure of plug contact
  • 4-6 µm Sn glossy
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 125 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 125 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3

Packing

• Packaging
  • Box
• VPE height
  • 350 mm
• VPE length
  • 55 mm
• VPE width
  • 135 mm

Rated Data Acc. To Csa

• Certificate No. (CSA)
  • 200039-1121690
• Institute (CSA)
  • CSA
• Rated current (Use group B / CSA)
  • 36 A
• Rated current (Use group C / CSA)
  • 36 A
• Rated current (Use group D / CSA)
  • 5 A
• Rated voltage (Use group B / CSA)
  • 600 V
• Rated voltage (Use group C / CSA)
  • 600 V
• Rated voltage (Use group D / CSA)
  • 600 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 10
• Wire cross-section, AWG, min.
  • AWG 24

Rated Data Acc. To Iec

• Clearance, min.
  • 12.7 mm
• Creepage distance, min.
  • 12.7 mm
• Rated current, max. number of poles (Tu=20°C)
  • 50 A
• Rated current, max. number of poles (Tu=40°C)
  • 45 A
• Rated current, min. number of poles (Tu=20°C)
  • 57 A
• Rated current, min. number of poles (Tu=40°C)
  • 57 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 8 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 6 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 8 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 1,000 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 800 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 800 V
• Short-time withstand current resistance
  • 3 x 1s with 420 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (cURus)
  • E60693
• Institute (cURus)
  • cURus
• Rated current (Use group B / UL 1059)
  • 39 A
• Rated current (Use group C / UL 1059)
  • 39 A
• Rated current (Use group D / UL 1059)
  • 5 A
• Rated voltage (Use group B / UL 1059)
  • 600 V
• Rated voltage (Use group C / UL 1059)
  • 600 V
• Rated voltage (Use group D / UL 1059)
  • 600 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 10
• Wire cross-section, AWG, min.
  • AWG 24

System Parameters

• Can be coded
  • Yes
• Conductor outlet direction
  • 180°
• L1 in inches
  • 0.6 inch
• L1 in mm
  • 15.24 mm
• Number of poles
  • 2
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.3 inch
• Pitch in mm (P)
  • 7.62 mm
• Plugging cycles
  • 25
• Product family
  • OMNIMATE Power - series BV/SV 7.62HP
• Screwdriver blade
  • 0.6 x 3.5
• Stripping length
  • 12 mm
• Tightening torque for screw flange, max.
  • 0.3 Nm
• Tightening torque for screw flange, min.
  • 0.2 Nm
• Touch-safe protection acc. to DIN VDE 0470
  • IP20 plugged
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Type of connection
  • Field connection
• Volume resistance
  • 4.50 mΩ
• Wire connection method
  • PUSH IN
