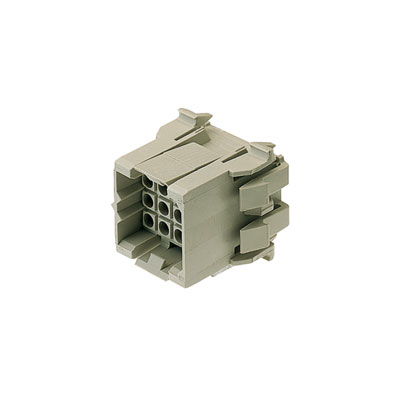

Weidmuller 1419100000

Approvals

• Approvals
  • CSA, EAC, UR
• ROHS
  • Conform
• UL File Number Search
  • E92202

Classifications

• eClass 10.0
  • 27-44-03-09
• eClass 9.0
  • 27-44-03-09
• eClass 9.1
  • 27-44-03-09
• ETIM 6.0
  • EC002638
• ETIM 7.0
  • EC002638
• UNSPSC
  • 30-21-18-10

Conductors Suitable For Connection

• Clamping range, max.
  • 3.31 mm²
• Clamping range, min.
  • 0.13 mm²
• Flexible, max. H05(07) V-K
  • 2.5 mm²
• Flexible, min. H05(07) V-K
  • 0.2 mm²
• Max. clamping range
  • 3.31 mm²

Dimensions And Weights

• Net weight
  • 17.3 g

Material Data

• Colour
  • Pebble grey
• Colour chart (similar)
  • RAL 7032
• Comparative Tracking Index (CTI)
  • ≥ 600
• Contact material
  • Copper alloy
• Insulating material
  • Wemid (PA)
• Insulating material group
  • I
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 100 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional colours on request Rated current related to rated cross-section & min. No. of poles. Spacing between rows: see hole layout Rated cross-section depends on crimp contact used. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Max. outer diameter of the cable (with insulation): 3.5 mm

Packing

• Packaging
  • Box
• VPE height
  • 132 mm
• VPE length
  • 68 mm
• VPE width
  • 104 mm

Rated Data Acc. To Csa

• Certificate No. (CSA)
  • 53975-13
• Institute (CSA)
  • CSA
• Rated current (Use group C / CSA)
  • 13 A
• Rated voltage (Use group C / CSA)
  • 600 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 12
• Wire cross-section, AWG, min.
  • AWG 26

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 13 A
• Rated current, max. number of poles (Tu=40°C)
  • 11.5 A
• Rated current, min. number of poles (Tu=20°C)
  • 17 A
• Rated current, min. number of poles (Tu=40°C)
  • 15 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 4 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 4 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 4 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 630 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 400 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 250 V
• Short-time withstand current resistance
  • 3 x 1s with 120 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (UR)
  • E92202
• Institute (UR)
  • UR
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.

System Parameters

• Conductor outlet direction
  • 180°
• L1 in inches
  • 1.575 inch
• L1 in mm
  • 40 mm
• Number of poles
  • 36
• Number of rows
  • 1
• Pin series quantity
  • 4
• Pitch in inches (P)
  • 0.197 inch
• Pitch in mm (P)
  • 5 mm
• Plugging force/pole, max.
  • 9 N
• Product family
  • OMNIMATE Signal - series RSV
• Pulling force/pole, max.
  • 18 N
• Stripping length
  • 4 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP20 plugged
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch, plugged
• Type of connection
  • Field connection
• Wire connection method
  • Crimp connection
