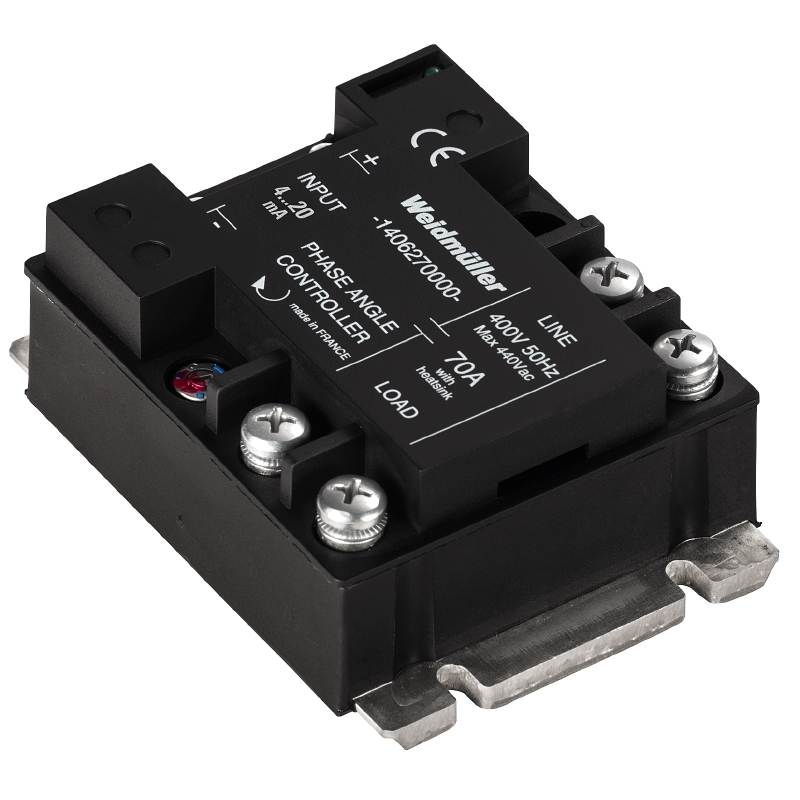

Weidmuller 1406270000

Approvals

• Approvals
  • EAC
  • CE
• ROHS
  • Conform

Classifications

• eClass 6.2
  • 27-37-16-01
• eClass 7.1
  • 27-37-16-01
• eClass 8.1
  • 27-37-16-01
• eClass 9.0
  • 27-37-16-01
• eClass 9.1
  • 27-37-10-14
• ETIM 5.0
  • EC001437
• ETIM 6.0
  • EC002055

Connection Data (Control Side)

• Blade size (control side)
  • size PH0
• Conductor connection (control side)
  • M3 ring cable lug (insulated)
• Wire connection method (control side)
  • Screw connection

Connection Data (Load Side)

• Blade size (load side)
  • Gr. PH2
• Conductor connection (load side)
  • M5 ring cable lug (insulated)
• Max. tightening torque (load side)
  • 2.5 Nm
• Min. tightening torque (load side)
  • 1.8 Nm
• Wire connection method (load side)
  • Screw connection

Contact Data

• Contact type
  • 1 Actuator (Triac)

Control Side

• Nominal control current
  • 4…20 mA ±15 %
• Protective circuit
  • RC element

Dimensions And Weights

• Depth
  • 39.5 mm
• Depth (inches)
  • 1.555 inch
• Height
  • 73.5 mm
• Height (inches)
  • 2.894 inch
• Net weight
  • 410 g
• Width
  • 100 mm
• Width (inches)
  • 3.937 inch

Further Details Of Approvals / Standards

• Standards
  • EN 60947-4-3, EN 60950

General Data

• Version
  • Single-phase without heat sink

General Ordering Data

• Available until
  • 2018-04-30
• Delivery status
  • This article will no longer be available in the future.
• GTIN (EAN)
  • 4050118206654
• Order No.
  • 1406270000
• Qty.
  • 1 pc(s).
• Type
  • PSSR 20MA/1PH AC70A PC
• Version
  • Power Solid-State Relais, Phase angle control, 1 Actuator (Triac), Rated switching voltage: 200…460 V AC, Continuous current: 70 A

Insulation Coordination

• Clearance and creepage distances for control side - load side
  • ≥ 8 mm
• Dielectric strength for control side - load side
  • 4 kV
• Dielectric strength to mounting rail
  • 4 kV
• Impulse withstand voltage
  • 4 kV (1.2/50 µs)
• Pollution severity
  • 2
• Protection degree
  • IP00
• Surge voltage category
  • III

Load Side

• Continuous current
  • 70 A
• Leakage current
  • < 5 mA
• Load category
  • AC 51
• Load limit integral (I²t) <10 ms
  • 5,000 A²s
• Min. switching current
  • 10 mA
• Output voltage frequency range
  • 47–100 Hz (manual phase angle adjustment necessary)
• Protective circuit, load side
  • RC element, Varistor
• Pulse load, max. current
  • 870 A (10 ms)
• Rated switching voltage
  • 200…460 V AC
• Short-circuit-proof
  • No
• Switch-off delay
  • ≤ 50 ms
• Switch-on delay
  • ≤ 10 ms
• Voltage drop at max. load
  • ≤ 1.6 V

Product Information

• Descriptive text ordering data
  • Accessories and dimensioned drawings: refer to the Power Solid-state Relay Accessories page.

Temperatures

• Humidity
  • 40...85 % (indoor) no condensation
• Operating temperature
  • -40 °C...85 °C
• Storage temperature
  • -40 °C...85 °C
