Description
Power Solid-State Relais, Current monitoring, Screw connectionPSSR 1PH CONTROL UNIT

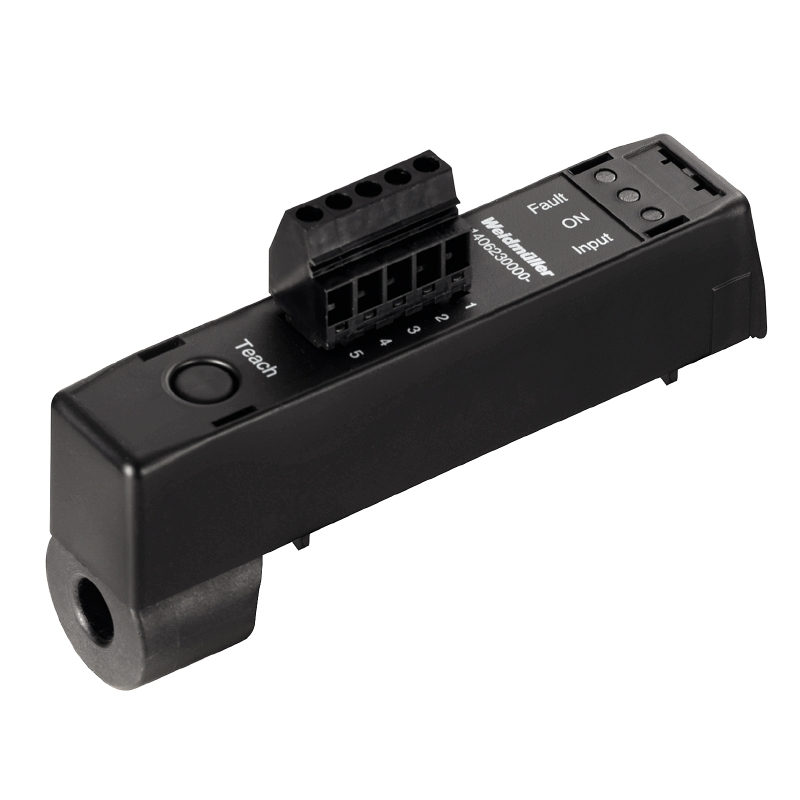

Weidmuller 1406230000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-37-18-02
- eClass 9.0
- 27-37-18-02
- eClass 9.1
- 27-37-18-02
- ETIM 6.0
- EC001440
- ETIM 7.0
- EC001440
Connection Data
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.15 mm²
- Clamping range, rated connection
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.2 mm²
- Tightening torque, max.
- 0.5 Nm
- Tightening torque, min.
- 0.4 Nm
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.2 mm²
- Wire connection method
- Screw connection
- Wire cross-section, finely stranded, max. (AWG)
- AWG 12
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
Control Output To The Pssr
- Nominal switching voltage
- 8...30 V DC
- Solid-state type
- Transistor
- Switch-off delay
- ≤ 16 ms
- Switch-on delay
- ≤ 15 ms
Control Side
- Cut-in / dropout voltage
- 2 V DC
- Nominal control current (control input)
- ≤ 2.5 mA
- Nominal control current (external teach input)
- ≤ 2.5 mA
- Rated control voltage (control input)
- 4…30 V DC
- Rated control voltage (external teach input)
- 4…30 V DC
Current Monitoring
- Leakage current in PSSR output, max.
- 0.3 A
- Undercurrent switching threshold
- 0.84 x Isetting
Current Transformer
- Current measurement range AC, max.
- 40 A
- Current measurement range AC, min.
- 2 A
- Current sensor hole diameter
- 9 mm
Dimensions And Weights
- Depth
- 65 mm
- Depth (inches)
- 2.559 inch
- Height
- 112.3 mm
- Height (inches)
- 4.421 inch
- Net weight
- 85 g
- Width
- 25 mm
- Width (inches)
- 0.984 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Feedback Output
- Continuous current
- 0.1 A
- Nominal switching voltage
- 8...30 V DC
- Solid-state type
- MOS-FET
- Switch-off delay
- ≤ 100 ms
- Switch-on delay
- ≤ 100 ms
Further Details Of Approvals / Standards
- Standards
- EN 60947-4-3, EN 60950
General Data
- Colour
- black
Insulation Coordination
- Pollution severity
- 2
- Protection degree
- IP20
- Surge voltage category
- III
Supply
- Current consumption
- ≤ 20 mA (feedback output unloaded), ≤ 120 mA (switched feedback output max. loaded)
- Protective circuit
- Varistor, Reverse polarity protection
- Voltage supply
- 8…30 V DC
Temperatures
- Humidity
- 40...85 % (indoor) no condensation
- Operating temperature
- -40 °C...80 °C
- Operating temperature, max.
- 80 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...125 °C
- Storage temperature, max.
- 125 °C
- Storage temperature, min.
- -40 °C
