Weidmuller 1398070050
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

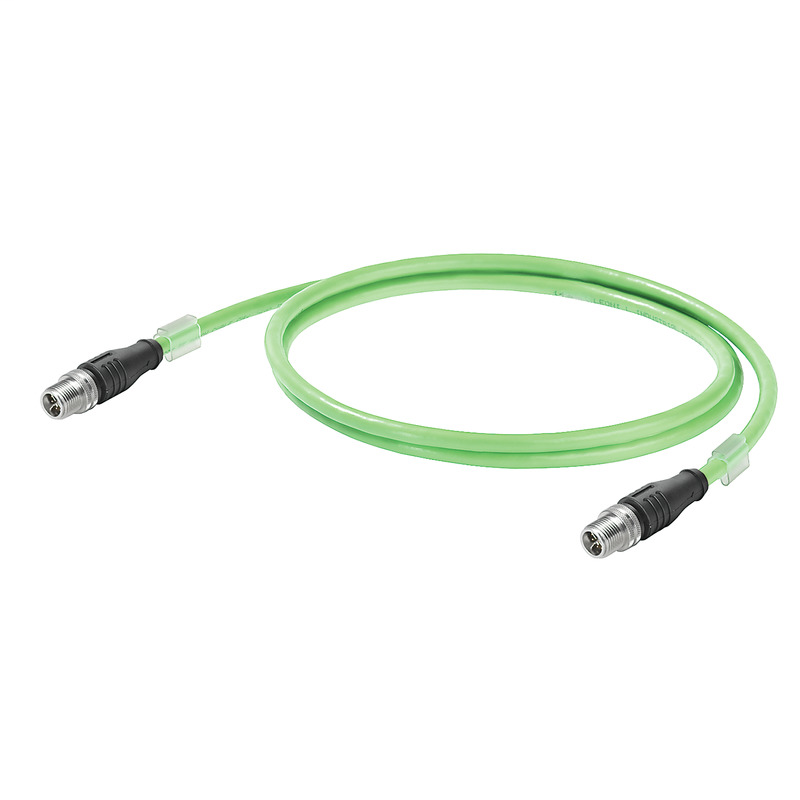

Connecting line, M12 X-type IP 67 straight male, M12 X-type IP 67 straight male, Cat.6A / Class EA (ISO/IEC 11801 2010), PVC, 5 mIE-C6KS8VG0050XCSXCS-E
Weidmuller 1398070050 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Colour sequence or wires - wire pairs
- white/blue - blue, white/orange - orange, white/green - green, white/brown - brown
- Cross-section
- 4*2*AWG 23/7
- Insulation cross-section
- 1.58 mm
- Material sheath
- PVC
- Sheath diameter, max.
- 8.8 mm
- Sheathing colour
- green (RAL 6018)
- Shielding
- S/FTP
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
Dimensions And Weights
- Insulation cross-section
- 1.58 mm
- Length
- 5 m
- Length (inches)
- 0.197 inch
- Net weight
- 327 g
Electrical Properties Of Cable
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Speed
- 10 GBit/s
- Test voltage: wire-wire-shield
- 800 Veff, 50 Hz, 1 min
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 4 x cable diameter
- Min. bending radius, repetitive
- 8 x Kabeldurchmesser
- Pulling force
- ≤ 150 N
- Resistance to spread of flame
- in accordance with IEC 60332-1-2
- Speed
- 10 GBit/s
Plug
- Connector left
- M12 X-type IP 67 straight male
- Connector right
- M12 X-type IP 67 straight male
Standards
- Standard, assembly
- UL-Style 2461
Temperatures
- Installation temperature
- -40 °C...80 °C
- Operating temperature
- -40 °C...80 °C
- Operating temperature, max.
- 80 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
