Description

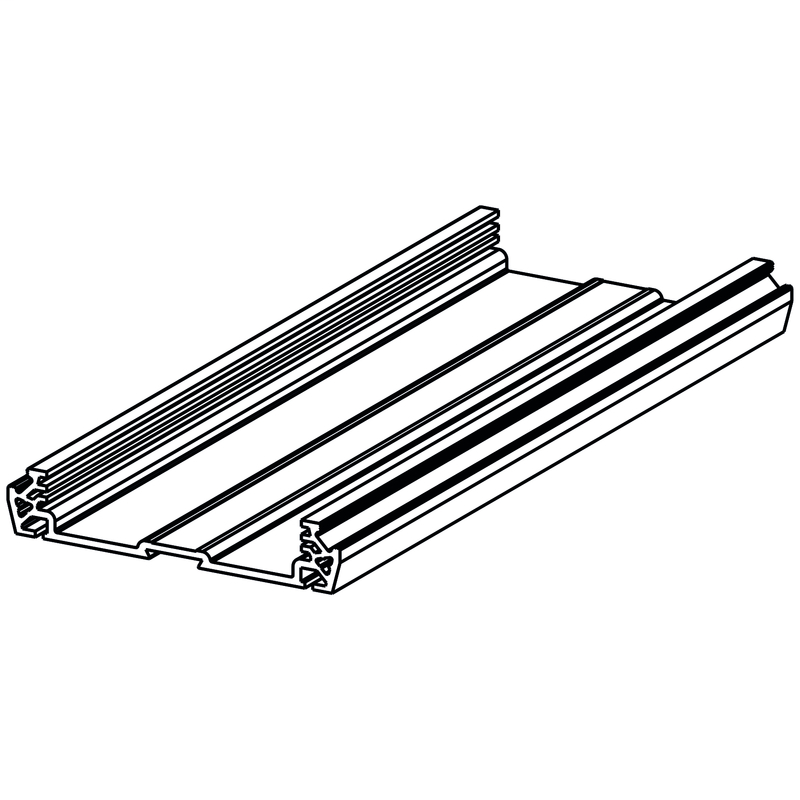

Electronics housings, RS 80 green, Extruded profile, Width: 84 mmPF RS 80 GN 2000MM
Weidmuller 1396730000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass 10.0
- 27-18-27-92
- eClass 9.0
- 27-18-27-90
- eClass 9.1
- 27-18-27-90
- ETIM 6.0
- EC002779
- ETIM 7.0
- EC002779
Dimensions And Weights
- Height
- 15.7 mm
- Height (inches)
- 0.618 inch
- Length
- 2,000 mm
- Length (inches)
- 78.74 inch
- Net weight
- 420 g
- Width
- 84 mm
- Width (inches)
- 3.307 inch
Material Data
- Colour
- green
- Colour chart (similar)
- RAL 6032
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -50 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -25 °C
- Temperature range, installation, max.
- 60 °C
- Temperature range, installation, min.
- -25 °C
Notes
- Descriptive text technical data
- 3 heights are available for the cover profile and the end plates:TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mmTS mounting with low cover: TS 32 = 72 mm, TS 35x7.5 = 67.5 mmTS mounting with high cover: TS 32 = 91 mm, TS 35x7.5 = 86.5 mmDirect mounting, without/low/high cover: 17 / 44 / 63 mmDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: 67.8 (+0.2) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension ADP section = PCB length - 2 mmExample:PCB length 160 mm, RS section = 155.5 mm, ADP section = 158 mm
System Characteristics
- Protection degree
- IP20
- Version
- Extruded profile
