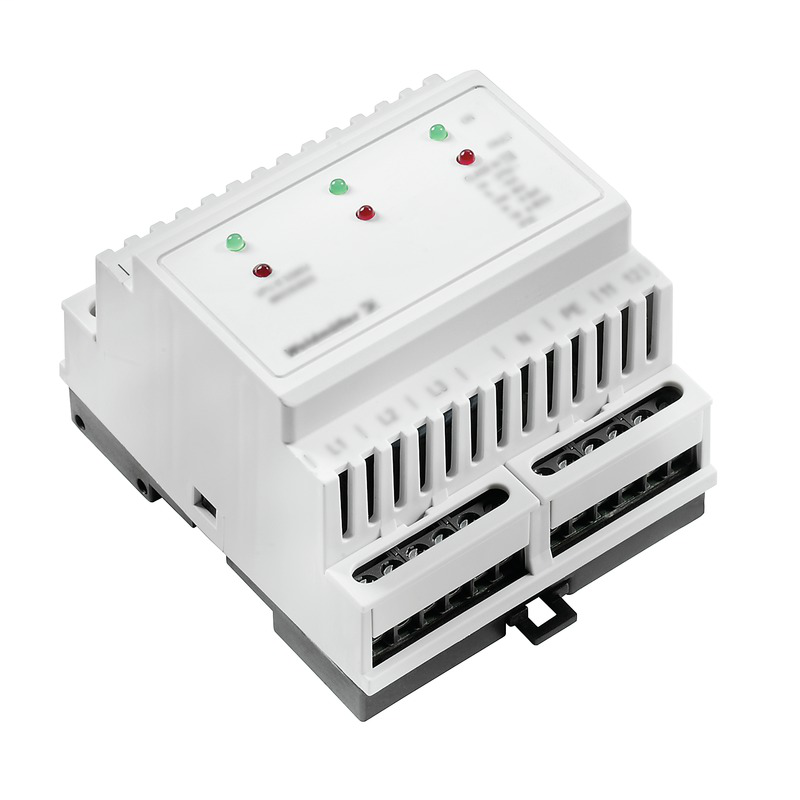

Weidmuller 1393050000

Approvals

• Approvals
  • CE, EAC
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-13-08-05
• eClass 9.0
  • 27-13-08-05
• eClass 9.1
  • 27-13-08-05
• ETIM 6.0
  • EC000941
• ETIM 7.0
  • EC000941
• UNSPSC
  • 30-21-19-21

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 2.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.5 mm²
• Connection cross-section, stranded, max.
  • 2.5 mm²
• Connection cross-section, stranded, min.
  • 0.5 mm²
• Stripping length, rated connection
  • 7 mm
• Tightening torque, max.
  • 0.5 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section, finely stranded, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire cross-section, solid, max.
  • 2.5 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Connection Data, Remote Alert

• Connection type
  • Screw connection
• Cross-section for connected wire, solid core, max.
  • 1.5 mm²
• Cross-section for connected wire, solid core, min.
  • 0.2 mm²
• Max. torque
  • 0.22 Nm
• Stripping length
  • 5 mm

Dimensions And Weights

• Depth
  • 57 mm
• Depth (inches)
  • 2.244 inch
• Height
  • 90 mm
• Height (inches)
  • 3.543 inch
• Net weight
  • 191 g
• Width
  • 70 mm
• Width (inches)
  • 2.756 inch

General Data

• Colour
  • grey
• Design
  • Installation housing; 1TE, Insta IP 20
• Optical function display
  • Green LED = OK, Red LED = arrester is defective, replace
• Protection degree
  • IP20
• Rail
  • TS 35
• Segment
  • Power distribution
• UL 94 flammability rating
  • V-0
• Version
  • with remote contact

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • III

Rated Data Iec / En

• Combined pulse U
  • 6 kV
• Discharge current I
  • 3 kA
• Fuse
  • 16 A
• Leakage current at U
  • 30 µA
• Low voltage network
  • TN-C, TN-S, TN-C-S
• Mains frequency at 250 Vmax
  • 50...60Hz
• Max. continuous voltage, Uc (AC)
  • 275 V
• Number of poles
  • 1
• PE conductor current I
  • 30 µA
• Protection level U
  • ≤ 1.8 kV
• Rated current I
  • 16 A
• Rated voltage (AC)
  • 230 V
• Requirements category acc. to IEC 61643-11
  • Type III
• Requirements class, acc. to EN 61643-11
  • T3
• Response time
  • ≤ 100 ns
• Short-circuit current rating I
  • 1.5 kA
• Signalling contact
  • 250 V 10 A 1 NC
• Temporary surge voltage (over-voltage) - TOV
  • 440 V
• Voltage type
  • 3-phase 230/400 V

Technical Data, Signal Line

• Rated current I
  • 16 A

Temperatures

• Humidity
  • 5 - 95% rel. humidity
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...70 °C
• Storage temperature, max.
  • 70 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Three-pin surge protection according to the requirements of Class III in accordance with IEC 61643-11, EN61643-11:2013. The arrester serves as surge protection and is used in applications in accordance with IEC 61643-12. The arrester is installed in a standard installation/distributor housing in the vicinity of the equipment that needs protection. The VPU III 3 280 V is earthed between the outer conductors (L1, L2, L3 and the neutral conductor). With thermal separation device on the varistor. If there is no longer any protection, the colour of the LEDs changes from green to red. The functional state is also displayed by a voltage-free signalling contact (NC contact). Rated voltage: 230 V AC In/max (8/20 µs):3 kA protection level < 1.8 kV load current Il: 16A  telecommunication output: contact NC: 250 V/0.5 A 48 V DC/0.1 A Type: Weidmüller VPU  III 3 280 V Order No. 1393050000 or equivalent
• Short specification
  • Class III arrester with Uoc: 6 kV suitable for 230/400 V TN-S mains systems. Protection level < 1.8 kV. With remote alert Type: Weidmüller VPU III 3 280 V Order no. 1393050000 or equivalent
