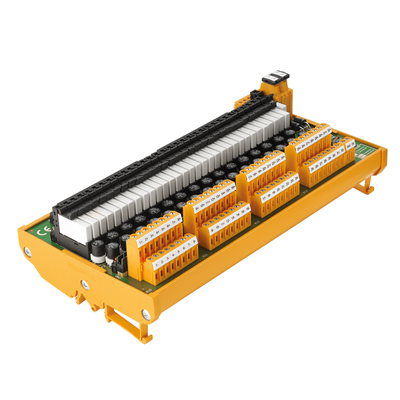

Weidmuller 1384330000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface, RS, 2 x AKB (50P), LP2N 5.08mmTBY-ADV151-24-PS-2KB-S
Weidmuller 1384330000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-52
- eClass 9.0
- 27-14-11-52
- eClass 9.1
- 27-24-22-16
- ETIM 6.0
- EC002780
- ETIM 7.0
- EC002780
Connection Data
- Connection (field side)
- LP2N 5.08mm
- Connection on control side
- 2 x AKB (50P)
- Connection supply
- LP 5.08mm
- Connection to PLC
- Yokogawa Centum CS3000
- Connection to the card
- ADV151, ADV161 (2 TBY by Card)
- Number of poles (control side)
- 50-pole plug
Connection Field
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Max. wire cross-section, AWG
- AWG 12
- Min. wire cross-section, AWG
- AWG 26
- Sleeve with plastic collar, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
Dimensions And Weights
- Height
- 95 mm
- Height (inches)
- 3.74 inch
- Length
- 317 mm
- Length (inches)
- 12.48 inch
- Net weight
- 1,024 g
- Width
- 131 mm
- Width (inches)
- 5.157 inch
General Data
- Disconnector per relay
- No
- Fuse per relay
- Yes
- LED status display per relay
- green
- LED status of the supply voltage
- green
- Power supply fuse
- 1 A
- Switch
- No
Insulation Coordinates (En50178)
- Clearance input/output
- ≥ 5.5 mm
- Insulation test voltage
- 0.35 kVAC
- Overvoltage category input/input
- III
- Overvoltage category input/output
- III
- Overvoltage category output/output
- III
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 1.5 kV
- Rated input insulation voltage
- ≤ 50 V DC
- Rated output insulation voltage
- ≤ 50 V DC
Rating Data
- Mechanical service life
- 5 x 106 switching cycles
Ratings Data Input
- Input current
- 7 mA (fuse on) / 0.5 mA (fuse off)
- Input voltage
- 24 V DC ± 10%
Ratings Data Output
- Contact material
- AgNi gold-plated
- Max. DC continuous current
- 10 mA
- Minimum contact current
- 1 mA
- Minimum contact voltage
- 1 V
- Rated voltage (text)
- 18…30 V DC
- Relay type
- RSS
Supply Connection
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Ferrule with plastic collar, max.
- 0.5 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
- Wire cross-section, max. AWG
- AWG 26
- Wire cross-section, min. AWG
- AWG 12
Temperatures
- Operating temperature
- -25...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
