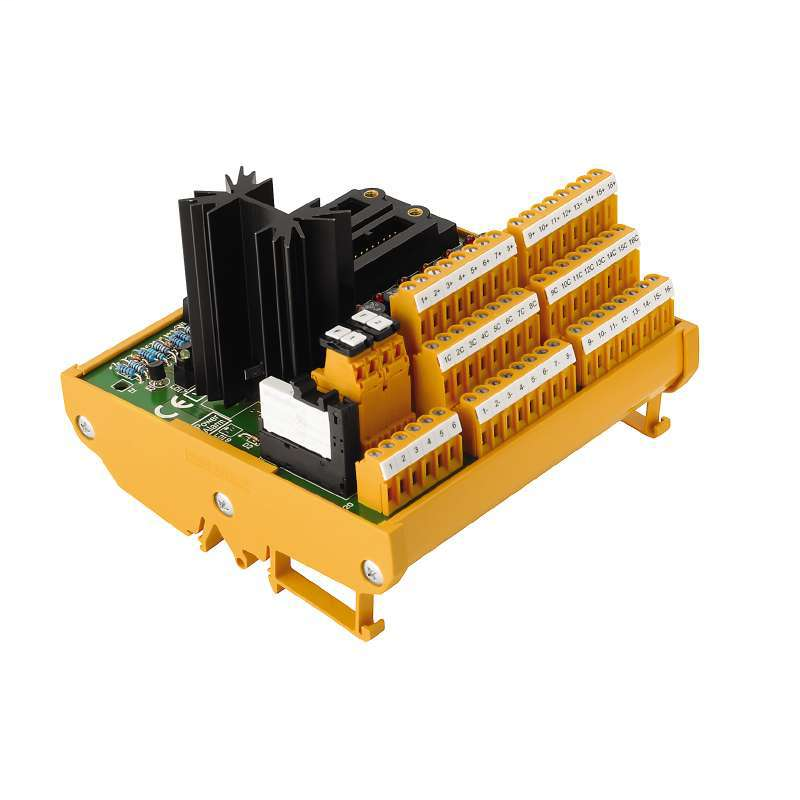

Weidmuller 1371240000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface, RS, 2 x KS (40P), LP3R 5.08mm
Weidmuller 1371240000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- EAC
Classifications
- EClass 6.2
- 27-14-11-52
- EClass 7.1
- 27-14-11-52
- EClass 8.1
- 27-14-11-52
- EClass 9.0
- 27-14-11-52
- EClass 9.1
- 27-14-11-52
- ETIM 5.0
- EC002780
- ETIM 6.0
- EC002780
Connection Data
- Connection (field side)
- LP3R 5.08mm
- Connection on control side
- 2 x KS (40P)
- Connection supply
- LP 5.08mm
- Connection to PLC
- Yokogawa ProSafe
- Connection to the card
- SAI143
- Number of poles (control side)
- 40-pole plug
Connection Field
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Max. wire cross-section, AWG
- AWG 12
- Min. wire cross-section, AWG
- AWG 26
- Sleeve with plastic collar, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
Dimensions And Weights
- Height
- 107 mm
- Height (inches)
- 4.213 inch
- Length
- 133 mm
- Length (inches)
- 5.236 inch
- Net weight
- 432.55 g
- Width
- 131 mm
- Width (inches)
- 5.157 inch
General Data
- Disconnection per channel
- No
- Fuse per channel
- 1 A
- LED status display per channel
- red
- LED status of the supply voltage
- green
- Power supply fuse
- 6.3 A
- Switch
- No
- Type of test point
- No
General Ordering Data
- Available until
- 2016-09-30
- Delivery status
- This article will no longer be available in the future.
- GTIN (EAN)
- 4050118207118
- Order No.
- 1371240000
- Qty.
- 1 pc(s).
- Type
- TBY-SAI143-F-L-PS-2KS-S
Insulation Coordination (EN50178)
- Insulation test voltage
- 0.35 kVAC
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 0.8 kV
- Rated insulation voltage
- < 50 V AC
- Surge voltage category
- III
Ratings Data
- Max. current for common pole
- 1 A
- Max. current per channel
- 1 A
- Operating voltage
- 24 V DC
Supply Connection
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Ferrule with plastic collar, max.
- 0.5 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
- Wire cross-section, max. AWG
- AWG 26
- Wire cross-section, min. AWG
- AWG 12
Temperatures
- Operating temperature
- -25 to 70 °C
- Storage temperature
- -40...85 °C
