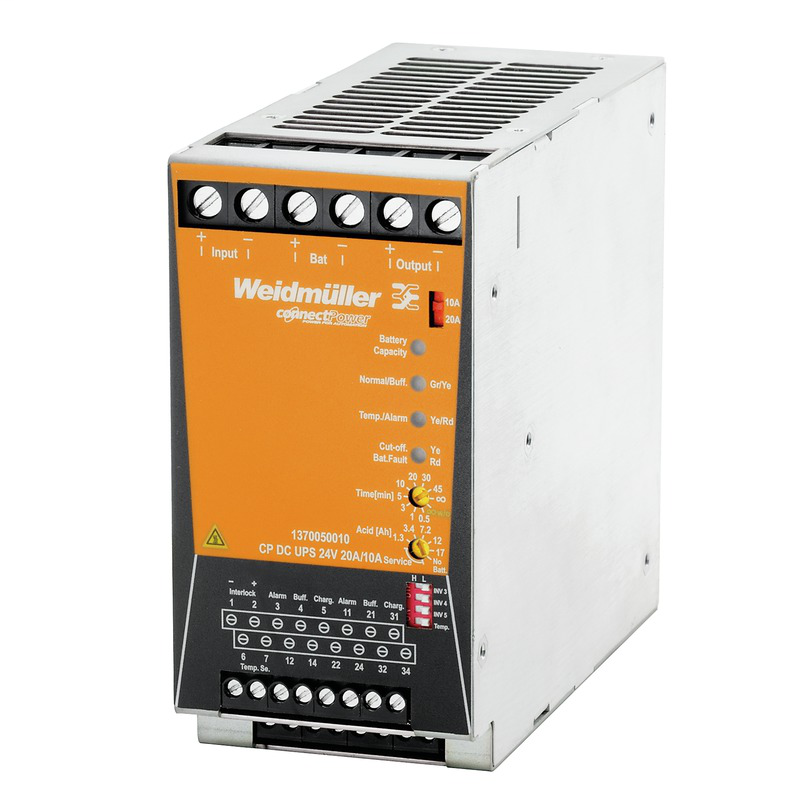

Weidmuller 1370050010

Approvals

• Approvals
  • CE, CULUS, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E258476

Battery Module

• Parallel connection option
  • Yes, max. 2
• Rated voltage
  • 24 V
• Storage medium
  • 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, Selectable with rotary switch

Classifications

• eClass 10.0
  • 27-04-06-92
• eClass 9.0
  • 27-04-06-92
• eClass 9.1
  • 27-04-92-01
• ETIM 6.0
  • EC002850
• ETIM 7.0
  • EC002850

Connection Data (Input)

• Conductor cross-section, AWG/kcmil , max.
  • 6
• Conductor cross-section, AWG/kcmil , min.
  • 26
• Conductor cross-section, flexible , min.
  • 0.5 mm²
• Conductor cross-section, rigid , max.
  • 16 mm²
• Conductor cross-section, rigid , min.
  • 0.5 mm²
• Reverse polarity protection
  • Yes
• Tightening torque, max.
  • 1.5 Nm
• Tightening torque, min.
  • 1.2 Nm
• Wire connection cross section, flexible (input), max.
  • 16 mm²

Connection Data (Output)

• Conductor cross-section, AWG/kcmil , max.
  • 6
• Conductor cross-section, AWG/kcmil , min.
  • 26
• Conductor cross-section, flexible , max.
  • 16 mm²
• Conductor cross-section, flexible , min.
  • 0.5 mm²
• Conductor cross-section, rigid , max.
  • 16 mm²
• Conductor cross-section, rigid , min.
  • 0.6 mm²
• Tightening torque, max.
  • 1.5 Nm
• Tightening torque, min.
  • 1.2 Nm

Connection Data (Signal)

• Wire connection cross-section, flexible (signal), max.
  • 16 mm²
• Wire connection cross-section, flexible (signal), min.
  • 0.5 mm²
• Wire connection method
  • Screw connection
• Wire cross-section, AWG/kcmil , max.
  • 12
• Wire cross-section, AWG/kcmil , min.
  • 26
• Wire cross-section, solid , max.
  • 16 mm²
• Wire cross-section, solid , min.
  • 0.5 mm²

Dimensions And Weights

• Depth
  • 150 mm
• Depth (inches)
  • 5.905 inch
• Height
  • 130 mm
• Height (inches)
  • 5.118 inch
• Net weight
  • 1,146 g
• Width
  • 66 mm
• Width (inches)
  • 2.598 inch

Electrical Safety (Applied Standards)

• Electrical machine equipment
  • Acc. to EN60204
• For use with electronic equipment
  • Acc. to EN50178 / VDE0160
• Protection against dangerous shock currents
  • Acc. to VDE0106-101
• Protective separation / protection against electrical shock
  • VDE0100-410 / acc. to DIN57100-410
• Safety extra-low voltage
  • EN 60950
• Safety transformers for switch-mode power supplies
  • According to EN 61558-2-16

Emc / Shock / Vibration

• Interference immunity test acc. to
  • EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips)
• Noise emission in accordance with EN55032
  • Class B
• Shock resistance IEC 60068-2-27
  • 30 g in all directions
• Vibration resistance IEC 60068-2-6
  • 2.3 g

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Buffer times
  • Depending on the connected battery
• Clip-in foot
  • metal
• Current limiting
  • > 120% IN
• Degree of efficiency
  • ≥ 96% normal mode, battery is being charged, ≥ 98% normal mode, battery is charged, ≥ 98% buffer mode
• Housing version
  • Metal, corrosion resistant
• Humidity
  • 5...95 %, no condensation
• Mounting position, installation notice
  • Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
• MTBF
  • > 500,000 h in accordance with IEC 61709 (SN29500)
• Operating temperature
  • -25 °C...70 °C
• Power loss
  • < 10 W
• Protection against reverse voltages from the load
  • 32…34 V DC
• Protection degree
  • IP20
• Short-circuit protection
  • Yes
• Storage medium
  • 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, Selectable with rotary switch
• Surge voltage category
  • III

Input

• DC current consumption
  • max. 200 mA (without battery), max. 0.5 A (with fully charged battery)
• DC input voltage range
  • 20...30 V DC
• Input current
  • ≤ 13A (for 10A), ≤ 23A (for 20A)
• Input fuse (internal)
  • Yes
• Max. approved input current
  • 28 A
• Rated input voltage
  • 24 V DC
• Wire connection method
  • Screw connection

Insulation Coordination

• electrical isolation, input-earth
  • 1 kV
• electrical isolation, output-earth
  • 1 kV
• Insulation voltage
  • 1 kV DC
• Pollution severity
  • 2
• Protection class
  • III, with no ground connection, for SELV
• Surge voltage category
  • III

Integrated Battery Charger

• Battery availability test
  • every minute
• Charging current
  • 0.15 CA
• Charging feature
  • IU characteristic curve
• Charging voltage (temperature compensated)
  • 27, 48 V @ 20°C
• Temperature coefficient
  • 48 mV / °C

Operating Interfaces And Control Inputs

• DIP switch
  • Inversion of transistor outputs, Operation without temperature probe
• Output current selector switch
  • 20 A, 10 A
• Remote disconnection (Interlock)
  • Yes
• Selector switch battery
  • 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, No Battery, Service
• Selector switch buffer times
  • 0.5 min, 1 min, 3 min, 5 min, 10 min, 20 min, 30 min, 45 min, ∞, ∞ w/0
• Temperature probe
  • NTC 100 kΩ

Output

• Continous output current @ U
  • 24 A @ 45 °C, 20 A @ 60 °C, 15 A @ 70 °C
• Nominal output current for U
  • 20 A @ 60 °C
• Output current, max.
  • 24 A
• Output voltage
  • Vo = Vin - 0.2 V normal operation (Imax), Vo = Vin - 0.3 V battery supply (I max)
• Overload protection
  • Yes
• Parallel connection option
  • Yes, max. 2, Yes, with diode module
• Protection against inverse voltage
  • Yes
• Rated output voltage
  • 24 V DC ± 1 %
• Reserve capacity @ U
  • 24 A for 1 min, ED = 5 %
• Residual ripple, breaking spikes
  • < 50 mVPP @ 24 V DC, IN
• Temperature coefficient
  • 48 mV / °C
• Temperature probe
  • NTC 100 kΩ
• Wire connection method
  • Screw connection

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E258476

Signalling

• Floating contact
  • Yes
• Status indicator
  • Three-colour LED: Battery capacity >85% green, >40% yellow, >20% red, <20% red (Flashing), Green/yellow LED: normal / buffering, Yellow/red LED: temperature alarm / alarm, Yellow/red LED: switch-off / battery fault
• Status relay (max. load)
  • Fault (alarm) (30 V AC/DC 0.1 A), Battery operation (buff.) (30 V AC/DC 0.1 A), Laden (Charg.) (30V AC/DC 0,1A)

Temperatures

• Humidity
  • 5...95 %, no condensation
• Operating temperature
  • -25 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
