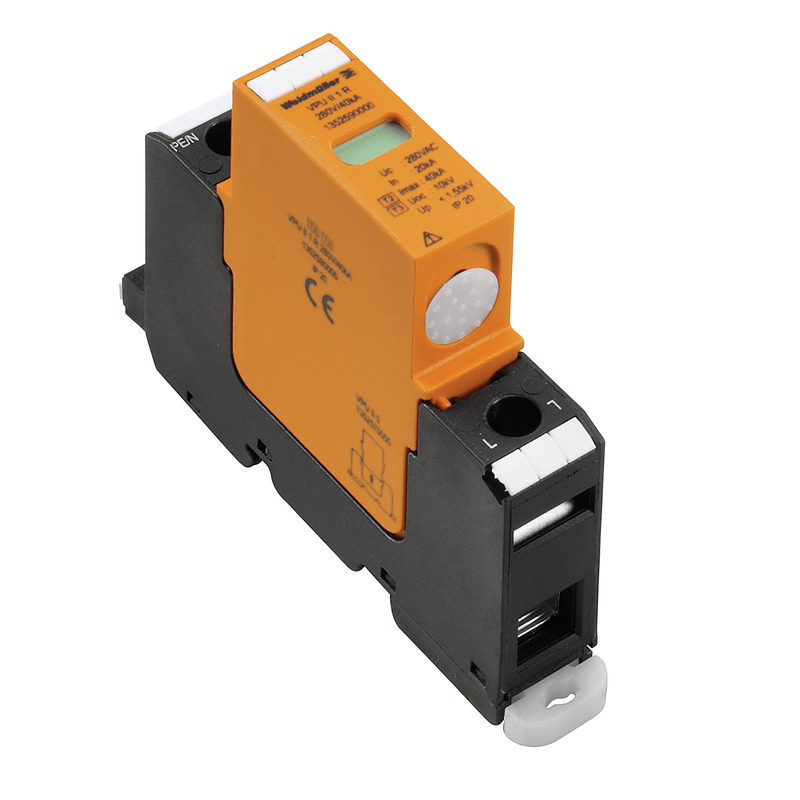

Weidmuller 1352590000

Approvals

• Approvals
  • CE, EAC, OEVE
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-13-08-05
• eClass 9.0
  • 27-13-08-05
• eClass 9.1
  • 27-13-08-05
• ETIM 6.0
  • EC000941
• ETIM 7.0
  • EC000941
• UNSPSC
  • 30-21-19-21

Connection Data

• Clamping range, max.
  • 35 mm²
• Clamping range, min.
  • 1.5 mm²
• Clamping range, rated connection
  • 16 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 50 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 1.5 mm²
• Connection cross-section, stranded, max.
  • 50 mm²
• Connection cross-section, stranded, min.
  • 1.5 mm²
• Stripping length, rated connection
  • 15 mm
• Tightening torque, max.
  • 3 Nm
• Tightening torque, min.
  • 2 Nm
• Type of connection
  • Screw connection
• Wire connection cross section, finely stranded, max.
  • 25 mm²
• Wire connection cross-section, finely stranded, min.
  • 1.5 mm²
• Wire connection method
  • Screw connection
• Wire cross-section, solid, max.
  • 16 mm²
• Wire cross-section, solid, min.
  • 1.5 mm²

Connection Data, Remote Alert

• Connection type
  • PUSH IN
• Cross-section for connected wire, solid core, max.
  • 1.5 mm²
• Cross-section for connected wire, solid core, min.
  • 0.14 mm²
• Stripping length
  • 8 mm

Dimensions And Weights

• Depth
  • 69 mm
• Depth (inches)
  • 2.717 inch
• Height
  • 106 mm
• Height (inches)
  • 4.173 inch
• Mounting dimension - height
  • 75 mm
• Net weight
  • 146 g
• Width
  • 17.8 mm
• Width (inches)
  • 0.701 inch

General Data

• Colour
  • black, orange
• Design
  • Installation housing; 1TE
• Optical function display
  • green = OK; red = arrester is defective - replace
• Protection degree
  • IP20
• Rail
  • TS 35
• UL 94 flammability rating
  • V-0
• Version
  • with remote contact

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • III

Rated Data Iec / En

• Combined pulse U
  • 10 kV
• Discharge current I
  • 20 kA
• Energy coordination (≤10 m)
  • Type II, Type III
• Follow-on current extinguishing capability I
  • Not available due for technical reasons
• Frequency range, max.
  • 60 Hz
• Frequency range, min.
  • 50 Hz
• Fuse
  • 125 A gL > (if back up fuse > 125 A)
• Leakage current at U
  • 30 µA
• Low voltage network
  • Single-phase
• Max. continuous voltage, Uc (AC)
  • 280 V
• Number of poles
  • 1
• Protection level U
  • ≤ 1.55 kV
• Rated voltage (AC)
  • 230 V
• Requirements category acc. to IEC 61643-11
  • Type II, Type III
• Requirements class, acc. to EN 61643-11
  • T2, T3
• Response time
  • ≤ 25 ns
• Short-circuit current rating I
  • 25 kA
• Signalling contact
  • 250 V 1A 1CO
• Standards
  • IEC61643-11, EN61643-11
• Temporary surge voltage (over-voltage) - TOV
  • 438 V
• Voltage type
  • AC

Temperatures

• Humidity
  • 5 - 95% rel. humidity
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Single-pole surge protection according to the requirements of Class II/III acc. to IEC 61643-11, EN61643-11:2013. Consisting of V0 material, the arrestor serves as surge protection and is used in applications according to IEC 61643-12. Surge protection is used in the TN, TT and IT mains system types in combination with several lightning protectors. The use of a high-performance varistor meets the inspection requirements for Class II surge protection systems on the basis of the standards. The arrestor is installed in the vicinity of the power supply for the equipment that needs protection, in a standard installation/electrical distribution enclosure. The VPU II 1 R 280 V/40 kA is earthed, in combination with three or four identical arrestors, between the outer conductors (L1, L2, L3 and / or the neutral conductor). Reference is also made here to the 3+1 circuit and the 3+0 / 4+0 circuits. With thermal separation device on the varistor. If protection is no longer available, the colour in the display window changes from green to red. The functional state is also displayed by a voltage-free signalling contact (changeover). Rated voltage: 230 VAC In/max (8/20 µs): 20/40 kA protection level < 1.8 kV 25 kA short-circuit strength with max. back-up fuse of 125 A gl telecommunication output: contact: 250 V/0.5 A 48 VDC/0.1 A Type: Weidmüller VPU II 1 R 280 V/40 kA Order No. 1352590000 or equivalent
• Short specification
  • Class II arrester with In/Imax: 20/40 kA suitable for 230/400 V mains systems. Protection level < 1.55 kV. With remote alert Type: Weidmüller VPU II 1 R 280 V/40 kA Order no. 1352590000 or equivalent
