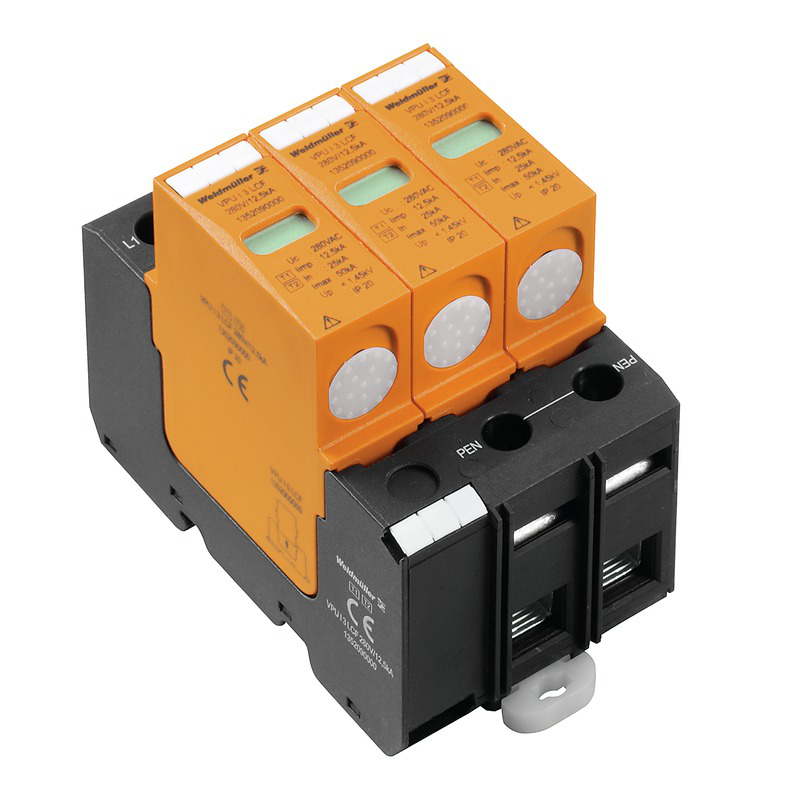

Weidmuller 1352090000

Approvals

• Approvals
  • CE, EAC, OEVE
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-13-08-05
• eClass 9.0
  • 27-13-08-05
• eClass 9.1
  • 27-13-08-05
• ETIM 6.0
  • EC000941
• ETIM 7.0
  • EC000941
• UNSPSC
  • 30-21-19-22

Connection Data

• Clamping range, max.
  • 35 mm²
• Clamping range, min.
  • 4 mm²
• Clamping range, rated connection
  • 16 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 50 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 2.5 mm²
• Connection cross-section, stranded, max.
  • 50 mm²
• Connection cross-section, stranded, min.
  • 2.5 mm²
• Stripping length, rated connection
  • 15 mm
• Tightening torque, max.
  • 3 Nm
• Tightening torque, min.
  • 2 Nm
• Type of connection
  • Screw connection
• Wire connection cross section, finely stranded, max.
  • 25 mm²
• Wire connection cross-section, finely stranded, min.
  • 2.5 mm²
• Wire cross-section, solid, max.
  • 16 mm²
• Wire cross-section, solid, min.
  • 2.5 mm²

Dimensions And Weights

• Depth
  • 69 mm
• Depth (inches)
  • 2.717 inch
• Height
  • 94 mm
• Height (inches)
  • 3.701 inch
• Mounting dimension - height
  • 75 mm
• Net weight
  • 543 g
• Width
  • 53.4 mm
• Width (inches)
  • 2.102 inch

General Data

• Colour
  • black, orange
• Design
  • Installation housing; 3TE, Insta IP 20
• Optical function display
  • green = OK; red = arrester is defective - replace
• Protection degree
  • IP20
• Rail
  • TS 35
• Segment
  • Power distribution
• Suitable for
  • Count-in installation (leakage current free)
• UL 94 flammability rating
  • V-0
• Version
  • without telecomm. contact, Leakage-current-free

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • IV

Rated Data Iec / En

• Discharge current I
  • 20 kA
• Energy coordination (≤10 m)
  • Type I, Type II, Type III
• Follow-on current extinguishing capability I
  • Not available due for technical reasons
• Frequency range, max.
  • 60 Hz
• Frequency range, min.
  • 50 Hz
• Fuse
  • 250 A gL (if back up fuse > 250 A)
• Leakage current at U
  • 1 µA
• Lightning test current I
  • 12.5 kA
• Low voltage network
  • TN-C, IT without N
• Max. continuous voltage, Uc (AC)
  • 280 V
• Number of poles
  • 3
• Protection level U
  • ≤ 1.45 kV
• Rated voltage (AC)
  • 230 V
• Requirements category acc. to IEC 61643-11
  • Type I, Type II
• Requirements class, acc. to EN 61643-11
  • T1, T2
• Response time
  • ≤ 100 ns
• Short-circuit current rating I
  • 25 kA
• Signalling contact
  • No
• Standards
  • IEC61643-11, EN61643-11
• Suitable for
  • Count-in installation (leakage current free)
• Temporary surge voltage (over-voltage) - TOV
  • 438 V
• Voltage type
  • AC

Temperatures

• Humidity
  • 5 - 95% rel. humidity
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Multi-pin lightning arrestor according to the requirements of Class I in accordance with IEC 61643-11, EN61643-11:2013. On interface transition from 0 to 1 (in accordance with IEC 1312-1), the arrestor, made from V0 material, serves as lightning protection providing equipotential bonding and is used in applications in accordance with IEC 61643-12. The use of a non-blow-out sparkover gap, in combination with a high-power varistor, satisfies the inspection requirements for Class I surge protection systems in accordance with the VDEW (Association of German Power Stations) directive. The arrestor is installed in the vicinity of the power supply for the equipment that needs protection, in a standard installation/electrical distribution enclosure. The VPU I 3 LCF 280 V/12.5 kA is used in the TN-C mains network. With thermal separation device on the varistor. If protection is no longer available, the colour in the display window changes from green to red. Rated voltage: 230 VAC lightning test current (10/350 µs): 12.5 kA protection level with lightning test current < 1.45 kV 25 kA short-circuit withstand rating with max. back-up fuse of 250 A gl Type: Weidmüller VPU I 3 LCF 280 V/12.5 kA Order No. 1352090000 or equivalent
• Short specification
  • Class I arrester for LPL III/IV with 12.5 kA suitable for 230/400 V TN-C mains systems. Protection level < 1.45 kV.  Type: Weidmüller VPU I 3+1  LCF 280 V/12.5 kA Order no. 1352020000 or equivalent
