Description

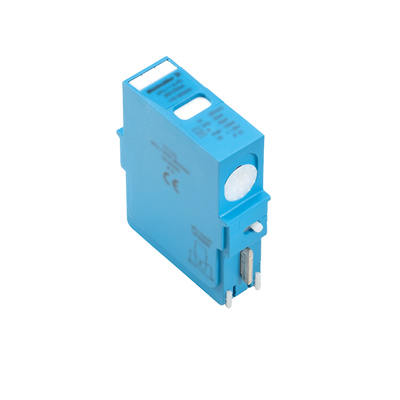

Surge voltage arrester, Low voltage, Accessories, Spare arrester, TT nur für N-PEVPU I 0 N-PE 440V/50KA
Weidmuller 1351980000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-22
Connection Data
- Type of connection
- pluggable
Dimensions And Weights
- Depth
- 64 mm
- Depth (inches)
- 2.52 inch
- Height
- 94 mm
- Height (inches)
- 3.701 inch
- Net weight
- 62 g
- Width
- 17.8 mm
- Width (inches)
- 0.701 inch
General Data
- Colour
- blue
- Design
- Insta IP 20
- Optical function display
- No
- Protection degree
- IP20
- Segment
- Power distribution
- UL 94 flammability rating
- V-0
- Version
- Spare arrester
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- IV
Rated Data Iec / En
- Discharge current I
- 50 kA
- Frequency range, max.
- 60 Hz
- Frequency range, min.
- 50 Hz
- Fuse
- Not required
- Leakage current at U
- 0 µA
- Lightning test current, I
- 50 kA
- Low voltage network
- TT nur für N-PE
- Max. continuous voltage, Uc (N-PE)
- 440 V
- Number of poles
- 1
- Protection level U
- ≤ 2.7 kV
- Rated voltage (AC)
- 400 V
- Requirements category acc. to IEC 61643-11
- Type I, Type II
- Requirements class, acc. to EN 61643-11
- T1, T2
- Response time
- ≤ 100 ns
- Standards
- IEC61643-11, EN61643-11
- Temporary surge voltage (over-voltage) - TOV
- 1,200 V
- Voltage type
- AC
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
Tender Specification Sheets
- Long specification
- Spare arrestor for VPU I 0 440 V N-PE-series surge voltage arrestor. The pluggable sparkover gaps made from V0 material can be replaced by trained personnel following a failure. Rated voltage: 440 V N-PE with 50 kA Type: Weidmüller VPU I 0 N-PE 440 V/50 kA Order No.: 1351980000
- Short specification
- Spare arrester for surge voltage arrester VPU I 0 440 V N-PE series. The pluggable sparkover gaps can be swapped by trained personnel following a failure. Rated voltage: 440 V N-PE with 50 kA Type: Weidmüller VPU I 0 N-PE 440 V/50 kA Order no.: 1351980000
