Description

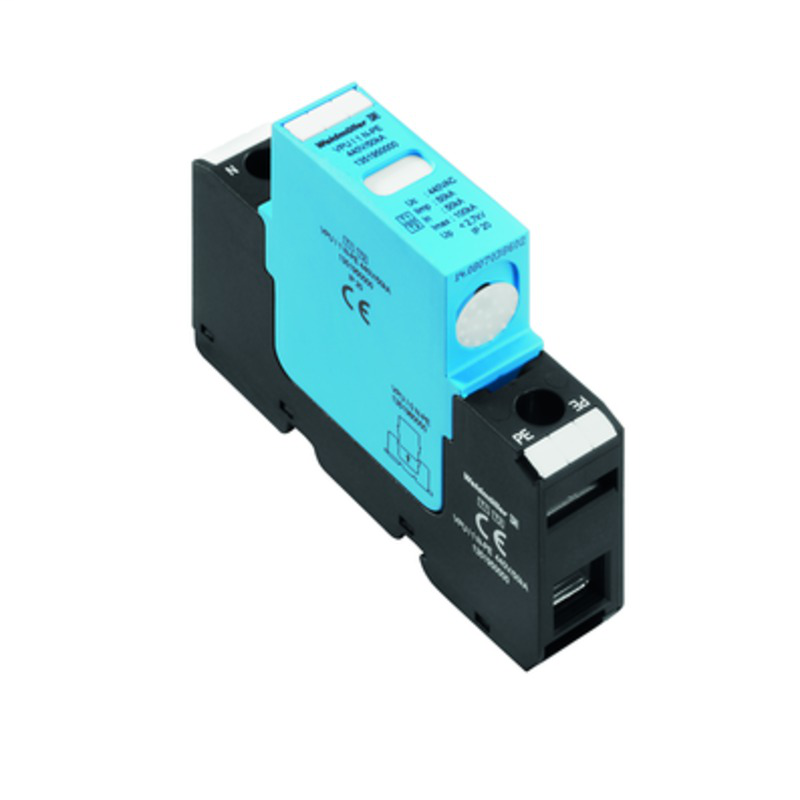

Surge voltage arrester, Low voltage, without telecomm. contact, TT nur für N-PEVPU I 1 N-PE 440V/50KA
Weidmuller 1351950000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-22
Connection Data
- Clamping range, max.
- 35 mm²
- Clamping range, min.
- 4 mm²
- Clamping range, rated connection
- 16 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 50 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 2.5 mm²
- Connection cross-section, stranded, max.
- 50 mm²
- Connection cross-section, stranded, min.
- 2.5 mm²
- Stripping length, rated connection
- 15 mm
- Tightening torque, max.
- 3 Nm
- Tightening torque, min.
- 2 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 25 mm²
- Wire connection cross-section, finely stranded, min.
- 2.5 mm²
- Wire cross-section, solid, max.
- 16 mm²
- Wire cross-section, solid, min.
- 2.5 mm²
Dimensions And Weights
- Depth
- 69 mm
- Depth (inches)
- 2.717 inch
- Height
- 94 mm
- Height (inches)
- 3.701 inch
- Mounting dimension - height
- 75 mm
- Net weight
- 126 g
- Width
- 17.8 mm
- Width (inches)
- 0.701 inch
General Data
- Colour
- black, blue
- Design
- Installation housing; 1TE, Insta IP 20
- Optical function display
- No
- Protection degree
- IP20
- Rail
- TS 35
- Segment
- Power distribution
- Suitable for
- Count-in installation (leakage current free)
- UL 94 flammability rating
- V-0
- Version
- without telecomm. contact
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- IV
Rated Data Iec / En
- Discharge current I
- 50 kA
- Frequency range, max.
- 60 Hz
- Frequency range, min.
- 50 Hz
- Fuse
- Not required
- Leakage current at U
- 0 µA
- Lightning test current, I
- 50 kA
- Low voltage network
- TT nur für N-PE
- Max. continuous voltage, Uc (N-PE)
- 440 V
- Number of poles
- 1
- Protection level U
- ≤ 2.7 kV
- Rated voltage (AC)
- 400 V
- Requirements category acc. to IEC 61643-11
- Type I, Type II
- Requirements class, acc. to EN 61643-11
- T1, T2
- Response time
- ≤ 100 ns
- Signalling contact
- No
- Standards
- IEC61643-11, EN61643-11
- Suitable for
- Count-in installation (leakage current free)
- Temporary surge voltage (over-voltage) - TOV
- 1,200 V
- Voltage type
- AC
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
Tender Specification Sheets
- Long specification
- Pluggable Class I arrestor made from V0 material, for LPL I/II/III/IV, with 50 kA, suitable for TN-S, IT or TT mains systems for protection between N and PE. Protection level < 2.7 kV. Type: Weidmüller VPU I 1 N-PE 400 V/50 kA, Order No. 1351950000 or equivalent
- Short specification
- Class I arrester for LPL I/II/III/IV, with 50 kA, suitable for TN-S, IT or TT mains systems for protection between N and PE. Protection level < 2.7 kV. Type: Weidmüller VPU I 1 N-PE 400 V/50 kA, Order No. 1351950000 or equivalent
