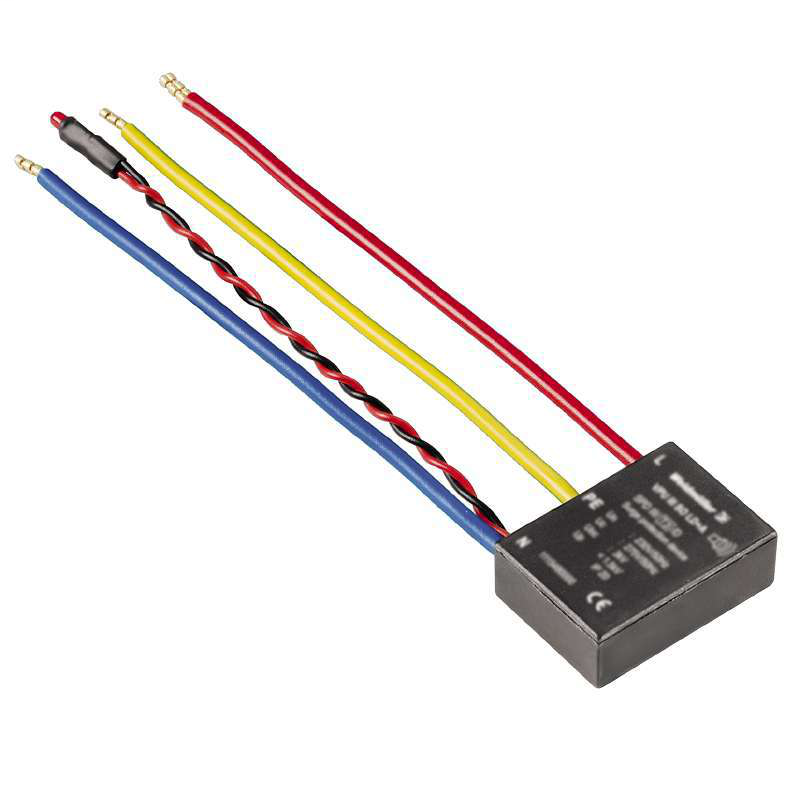

Weidmuller 1351700000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Surge voltage arrester, Low voltage, without telecomm. contact, Single-phase, UP(L/N-PE) ≤ 0.9 kVVPU III SO LD+A
Weidmuller 1351700000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-21
Connection Data
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
Connection Data, Remote Alert
- Connection type
- Miscellaneous
- Cross-section for connected wire, solid core, max.
- 1.5 mm²
Dimensions And Weights
- Depth
- 25 mm
- Depth (inches)
- 0.984 inch
- Height
- 35 mm
- Height (inches)
- 1.378 inch
- Net weight
- 34 g
- Width
- 12 mm
- Width (inches)
- 0.472 inch
General Data
- Acoustic signal
- Yes
- Colour
- black
- Design
- Flush mounting
- Optical function display
- Green LED = OK, Red LED = arrester is defective, replace
- Protection degree
- IP20
- Segment
- Power distribution
- UL 94 flammability rating
- V-0
- Version
- without telecomm. contact
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- II
Rated Data Iec / En
- Acoustic signal
- Yes
- Combined pulse U
- 3 kV
- Fuse
- 16 A
- Leakage current at U
- 30 µA
- Low voltage network
- Single-phase
- Mains frequency at 250 Vmax
- 50...60Hz
- Max. continuous voltage, Uc (AC)
- 275 V
- Number of poles
- 1
- PE conductor current I
- 10 µA
- Protection level U
- ≤ 1.5 kV
- Rated voltage (AC)
- 230 V
- Requirements category acc. to IEC 61643-11
- Type III
- Requirements class, acc. to EN 61643-11
- T3
- Response time
- < 100μs
- Short-circuit current rating I
- 1.5 kA
- Signalling contact
- No
- Temporary surge voltage (over-voltage) - TOV
- 440 V
- Voltage type
- AC
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -25 °C...55 °C
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
Tender Specification Sheets
- Long specification
- Surge protection according to the requirements of Class III in accordance with IEC 61643-11, EN61643-11:2013. The arrestor serves as surge protection and is used in applications in accordance with IEC 61643-12. The arrestor is installed in the vicinity of the equipment that needs protection in a standard installation/distributor housing. The VPU III SO LD +A is earthed between the phase and the neutral conductor. With thermal separation device on the varistor. If there is no longer any protection, the red LED goes out and an acoustic signal sounds. Rated voltage: 230 VAC In/max (8/20 µs): 1.5 kA protection level < 1.5 kV Type: Weidmüller VPU III R SO LD A Order No. 1351700000 or equivalent
- Short specification
- Class III arrester with Uoc: 3 kV suitable for 230 V AC mains systems. Protection level < 1.5 kV. With red LED display and acoustic alert Type: Weidmüller VPU III SO LD A Order no. 1351700000 or equivalent
