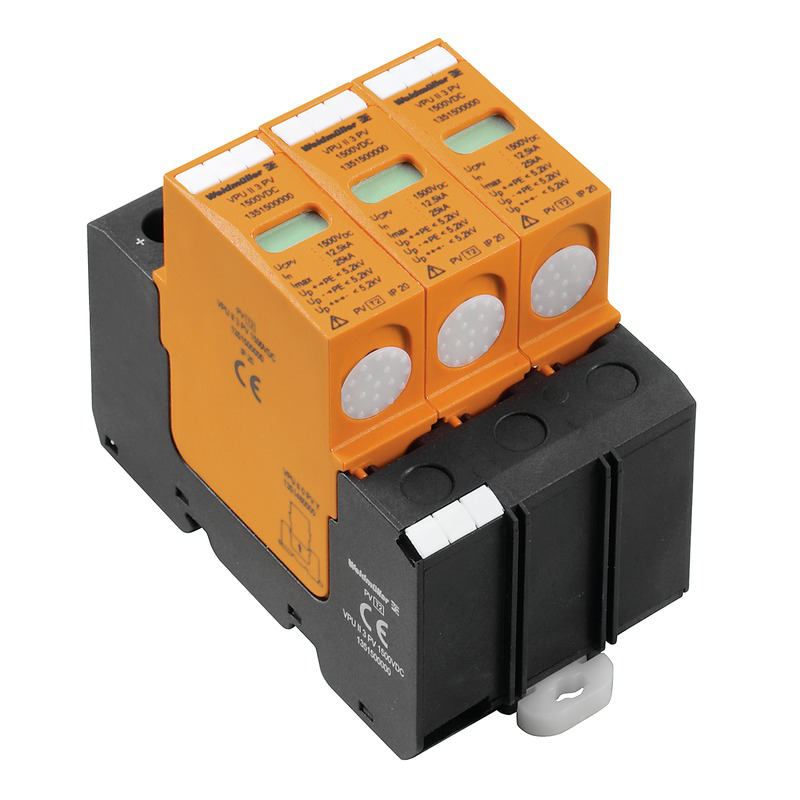

Weidmuller 1351500000

Approvals

• Approvals
  • CE, EAC
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-13-08-05
• eClass 9.0
  • 27-13-08-05
• eClass 9.1
  • 27-13-08-05
• ETIM 6.0
  • EC000941
• ETIM 7.0
  • EC000941
• UNSPSC
  • 30-21-19-21

Connection Data

• Clamping range, max.
  • 35 mm²
• Clamping range, min.
  • 1.5 mm²
• Clamping range, rated connection
  • 16 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 50 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 1.5 mm²
• Connection cross-section, stranded, max.
  • 50 mm²
• Connection cross-section, stranded, min.
  • 1.5 mm²
• Stripping length, rated connection
  • 15 mm
• Tightening torque, max.
  • 3 Nm
• Tightening torque, min.
  • 2 Nm
• Type of connection
  • Screw connection
• Wire connection cross section, finely stranded, max.
  • 25 mm²
• Wire connection cross-section, finely stranded, min.
  • 1.5 mm²
• Wire cross-section, solid, max.
  • 16 mm²
• Wire cross-section, solid, min.
  • 1.5 mm²

Dimensions And Weights

• Depth
  • 69 mm
• Depth (inches)
  • 2.717 inch
• Height
  • 94 mm
• Height (inches)
  • 3.701 inch
• Mounting dimension - height
  • 75 mm
• Net weight
  • 407 g
• Width
  • 53.4 mm
• Width (inches)
  • 2.102 inch

General Data

• Colour
  • black, orange
• Design
  • Installation housing; 3TE, Insta IP 20
• Optical function display
  • green = OK; red = arrester is defective - replace
• Protection degree
  • IP20
• Rail
  • TS 35
• UL 94 flammability rating
  • V-0
• Version
  • without telecomm. contact

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • III

Photovoltaic Technical Data

• Conditions and requirements
  • EN 50539-11
• Discharge current I
  • 20 kA
• Discharge current, max. (8/20 µs)
  • 40 kA
• Maximum continuous operating voltage UCPV mode +/-, -/PE, +/PE
  • 1,500 V DC
• Protection level U
  • ≤ 5.2 kV
• PV system voltage, max. U
  • 1,500 V
• Requirements class
  • Type II
• Short-circuit curent I
  • 200 A
• Standards
  • EN 50539-11

Temperatures

• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Multi-pole surge voltage arrestor according to the requirements of Class II acc. to IEC 50539-11. Consisting of V0 material, the arrestor serves as overvoltage protection and is used in applications according to IEC 50539-12 in unearthed PV systems. The use of a high-performance varistor consisting of V0 material meets the inspection requirements for Class II surge protection systems on the basis of the standards. The arrestor is installed in the vicinity of the equipment that needs protection, in a commercially available installation/electrical distribution enclosure. With thermal separation device on the varistor. If protection is no longer available, the colour in the display window changes from green to red. Rated voltage: 1500 VDC In/max (8/20 µs): 20/40 kA, protection level < 5.2 kV, type: Weidmüller VPU II 3 PV 1500 V/40 kA, Order No. 1351500000 or equivalent
• Short specification
  • Class II arrester with In/Imax: 20/40 kA suitable for unearthed PV systems. Protection level < 5.2 kV. Type: Weidmüller VPU II 3 PV 1500 V/40 kA Order no. 1351500000 or equivalent
