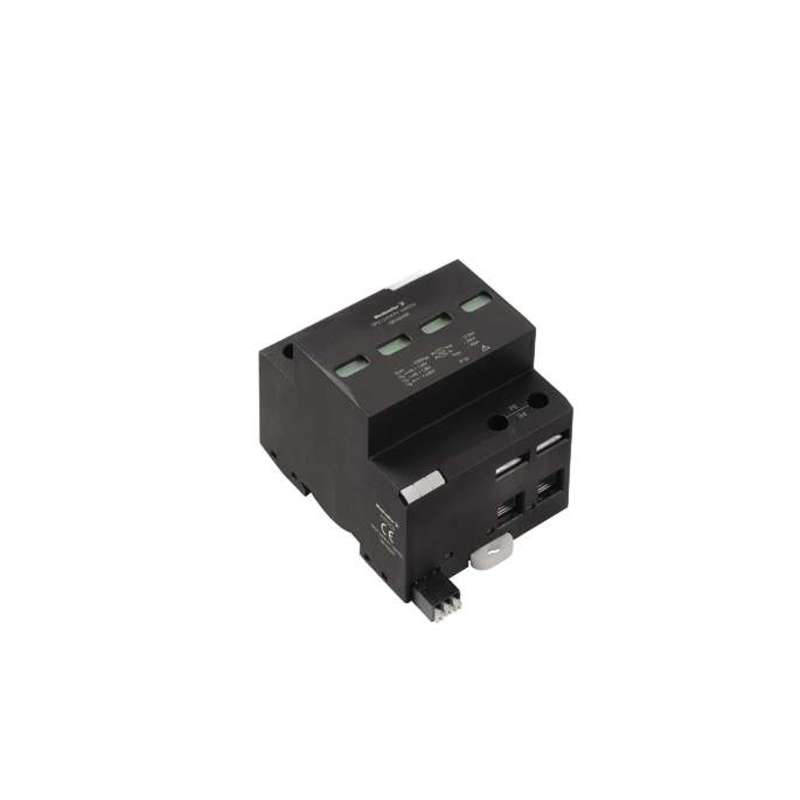

Weidmuller 1351490000

Approvals

• Approvals
  • CE, EAC
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-13-08-05
• eClass 9.0
  • 27-13-08-05
• eClass 9.1
  • 27-13-08-05
• ETIM 6.0
  • EC000941
• ETIM 7.0
  • EC000941
• UNSPSC
  • 30-21-19-22

Connection Data

• Clamping range, max.
  • 35 mm²
• Clamping range, min.
  • 4 mm²
• Clamping range, rated connection
  • 16 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 50 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 2.5 mm²
• Connection cross-section, stranded, max.
  • 50 mm²
• Connection cross-section, stranded, min.
  • 2.5 mm²
• Stripping length, rated connection
  • 15 mm
• Tightening torque, max.
  • 3 Nm
• Tightening torque, min.
  • 2 Nm
• Type of connection
  • Screw connection
• Wire connection cross section, finely stranded, max.
  • 25 mm²
• Wire connection cross-section, finely stranded, min.
  • 2.5 mm²
• Wire cross-section, solid, max.
  • 16 mm²
• Wire cross-section, solid, min.
  • 2.5 mm²

Connection Data, Remote Alert

• Connection type
  • PUSH IN
• Cross-section for connected wire, solid core, max.
  • 1.5 mm²
• Cross-section for connected wire, solid core, min.
  • 0.14 mm²
• Stripping length
  • 8 mm

Dimensions And Weights

• Depth
  • 69 mm
• Depth (inches)
  • 2.717 inch
• Height
  • 106 mm
• Height (inches)
  • 4.173 inch
• Mounting dimension - height
  • 75 mm
• Net weight
  • 494 g
• Width
  • 71.2 mm
• Width (inches)
  • 2.803 inch

General Data

• Colour
  • black
• Design
  • Installation housing; 4TE, Insta IP 20
• Optical function display
  • green = OK; red = arrester is defective - replace
• Protection degree
  • IP20
• Rail
  • TS 35
• UL 94 flammability rating
  • V-0
• Version
  • with remote contact

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • IV

Photovoltaic Technical Data

• Conditions and requirements
  • EN 50539-11
• Maximum continuous operating voltage UCPV mode +/-, -/PE, +/PE
  • 600 V DC
• Protection level U
  • ≤ 1.8 kV
• PV system voltage, max. U
  • 600 V
• Short-circuit curent I
  • 200 A
• Standards
  • EN 50539-11

Temperatures

• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Multi-pole surge voltage arrestor according to the requirements of Class I acc. to IEC 50539-11. Consisting of V0 material, the arrestor provides overvoltage protection in applications acc. to IEC 50539-12 in unearthed PV systems. The WEMID V0 arrestor is installed in the vicinity of the equipment that needs protection, in a commercially available installation/electrical distribution enclosure. With thermal separation device on the varistor. If protection is no longer available, the colour in the display window changes from green to red. The functional state is also displayed by a voltage-free signalling contact (CO contact). Rated voltage: 600 VDC Iimp: 12.5 kA In/max (8/20 µs): 20/40 kA protection level < 1.8 kV telecommunication output: contact: 250 V/0.5 A 48 VDC/0.1 A Type: Weidmüller VPU I 2+0 R PV 600 V Order No. 13514900000 or equivalent
• Short specification
  • Class I arrester with Iimp: 12.5 kA suitable for PV systems. Protection level < 1.8 kV. With remote alert Type: Weidmüller VPU I 2+0 R PV 600 V/12.5 kA Order no. 1351490000 or equivalent
