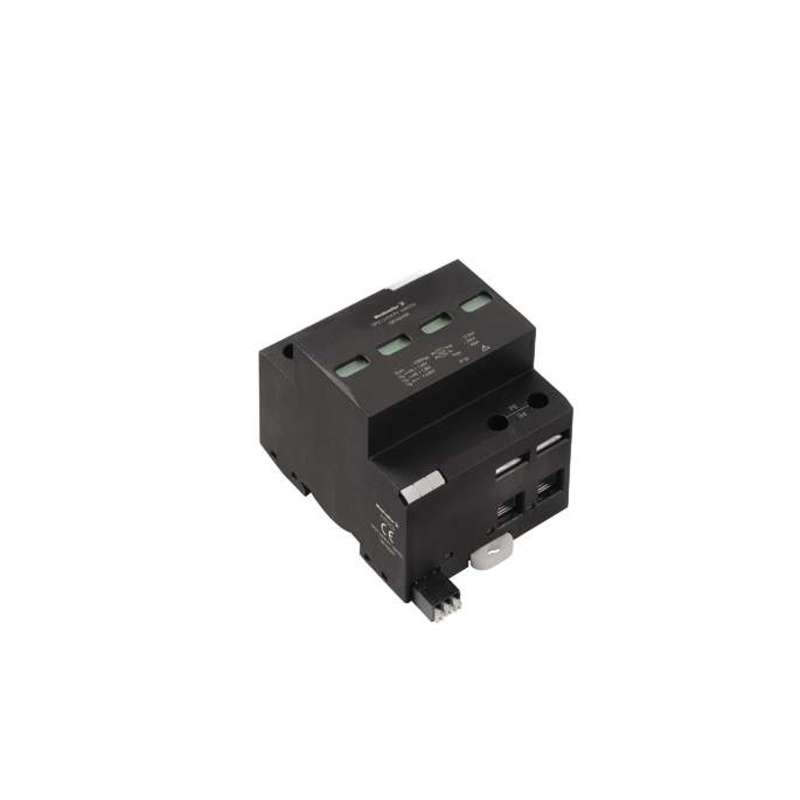

Weidmuller 1351380000

Approvals

• Approvals
  • CE, EAC
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-13-08-05
• eClass 9.0
  • 27-13-08-05
• eClass 9.1
  • 27-13-08-05
• ETIM 6.0
  • EC000941
• ETIM 7.0
  • EC000941
• UNSPSC
  • 30-21-19-22

Connection Data

• Clamping range, max.
  • 35 mm²
• Clamping range, min.
  • 4 mm²
• Clamping range, rated connection
  • 16 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 50 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 2.5 mm²
• Connection cross-section, stranded, max.
  • 50 mm²
• Connection cross-section, stranded, min.
  • 2.5 mm²
• Stripping length, rated connection
  • 15 mm
• Tightening torque, max.
  • 3 Nm
• Tightening torque, min.
  • 2 Nm
• Type of connection
  • Screw connection
• Wire connection cross section, finely stranded, max.
  • 25 mm²
• Wire connection cross-section, finely stranded, min.
  • 2.5 mm²
• Wire cross-section, solid, max.
  • 16 mm²
• Wire cross-section, solid, min.
  • 2.5 mm²

Connection Data, Remote Alert

• Connection type
  • PUSH IN
• Cross-section for connected wire, solid core, max.
  • 1.5 mm²
• Cross-section for connected wire, solid core, min.
  • 0.14 mm²
• Stripping length
  • 8 mm

Dimensions And Weights

• Depth
  • 69 mm
• Depth (inches)
  • 2.717 inch
• Height
  • 106 mm
• Height (inches)
  • 4.173 inch
• Mounting dimension - height
  • 75 mm
• Net weight
  • 606 g
• Width
  • 71.2 mm
• Width (inches)
  • 2.803 inch

General Data

• Colour
  • black
• Design
  • Installation housing; 4TE, Insta IP 20
• Optical function display
  • green = OK; red = arrester is defective - replace
• Protection degree
  • IP20
• Rail
  • TS 35
• Segment
  • Power distribution
• Suitable for
  • Count-in installation (leakage current free)
• UL 94 flammability rating
  • V-0
• Version
  • with remote contact, Leakage-current-free

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • IV

Rated Data Iec / En

• Discharge current I
  • 25 kA
• Discharge current, I
  • 25 kA
• Energy coordination (≤10 m)
  • Type I, Type II, Type III
• Follow-on current extinguishing capability I
  • Not available due for technical reasons
• Frequency range, max.
  • 60 Hz
• Frequency range, min.
  • 50 Hz
• Fuse
  • 315 A gl
• Leakage current at U
  • 1 µA
• Lightning test current I
  • 35 kA
• Low voltage network
  • Single-phase
• Max. continuous voltage, Uc (AC)
  • 400 V
• Number of poles
  • 1
• Protection level U
  • ≤ 2.5 kV
• Rated load current I
  • 100 A
• Rated voltage (AC)
  • 400 V
• Requirements category acc. to IEC 61643-11
  • Type I, Type II
• Requirements class, acc. to EN 61643-11
  • T1, T2
• Response time
  • ≤ 100 ns
• Short-circuit current rating I
  • 25 kA
• Signalling contact
  • 250 V 1A 1CO
• Standards
  • IEC61643-11, EN61643-11
• Suitable for
  • Count-in installation (leakage current free)
• Temporary surge voltage (over-voltage) - TOV
  • 440 V
• Voltage type
  • AC

Temperatures

• Humidity
  • 5 - 95% rel. humidity
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Single-pin lightning arrestor according to the requirements of Class I in accordance with IEC 61643-11, EN61643-11:2013. Made from V0 material, the arrestor serves as lightning protection providing equipotential bonding and is used in applications in accordance with IEC 61643-12 on interface transition from 0 to 1 (according to IEC 1312-1). Surge protection is used in the TN, TT and IT mains system types in combination with several lightning protectors. The use of a non-blow-out sparkover gap, in combination with a high-power varistor, satisfies the inspection requirements for Class I surge protection systems in accordance with the VDEW (Association of German Power Stations) directive. The arrestor is installed in the vicinity of the power supply for the equipment that needs protection, in a standard installation/electrical distribution enclosure. The VPU I 1 R LCF 280 V/35 kA is earthed, in combination with three or four identical arrestors, between the outer conductors ( L1, L2, L3 and / or the neutral conductor). Reference is also made here to the 3+1 circuit and the 3+0 / 4+0 circuits. With thermal separation device on the varistor. If protection is no longer available, the colour in the display window changes from green to red. The functional state is also displayed by a voltage-free signalling contact (changeover). Rated voltage: 400 VAC lightning test current (10/350 µs): 35 kA protection level with lightning test current < 2.5 kV 25 kA short-circuit withstand rating with max. back-up fuse of 315 A gl telecommunication output: contact: 250 V/0.5 A 48 VDC/0.1 A Type: Weidmüller VPU I 1 R LCF 400 V/35 kA Order No. 1351380000 or equivalent
• Short specification
  • Class I arrester for LPL 1 with 35 kA suitable for 400/690 V mains systems. Protection level < 2.5 kV. With remote alert Type: Weidmüller VPU I 1 R LCF 400 V/35 kA Order no. 1351850000 or equivalent
