Description

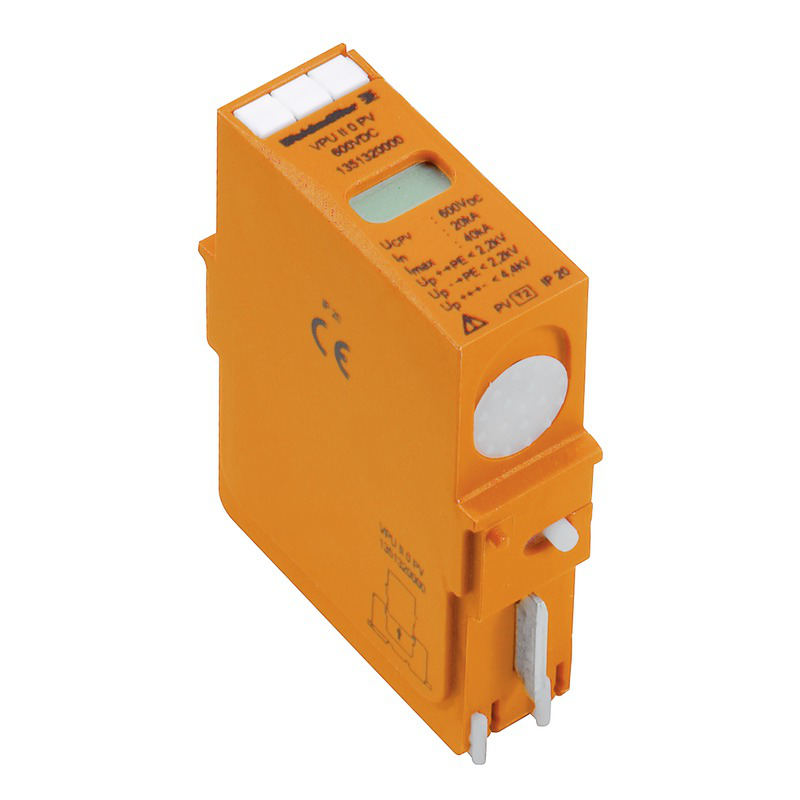

Surge voltage arrester, Low voltage, Accessories, 600 VVPU II 0 PV 600V DC
Weidmuller 1351320000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-21
Connection Data
- Type of connection
- pluggable
Dimensions And Weights
- Depth
- 64 mm
- Depth (inches)
- 2.52 inch
- Height
- 52 mm
- Height (inches)
- 2.047 inch
- Net weight
- 101 g
- Width
- 17.8 mm
- Width (inches)
- 0.701 inch
General Data
- Colour
- orange
- Design
- Installation housing; 1TE, Insta IP 20
- Optical function display
- green = OK; red = arrester is defective - replace
- Protection degree
- IP20
- Rail
- TS 35
- UL 94 flammability rating
- V-0
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- III
Photovoltaic Technical Data
- Conditions and requirements
- EN 50539-11
- Maximum continuous operating voltage UCPV mode +/-, -/PE, +/PE
- 600 V DC
- Protection level U
- ≤ 2.2 kV
- PV system voltage, max. U
- 600 V
- Short-circuit curent I
- 200 A
- Standards
- EN 50539-11
Temperatures
- Operating temperature
- -40 °C...
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
Tender Specification Sheets
- Long specification
- Spare arrestor consisting of V0 material for surge voltage arrestor VPU II 600 VDC series The pluggable high-performance varistors can be exchanged by trained personnel following a failure. Rated voltage: 600 VDC for PV systems Type: Weidmüller VPU II 0 PV 600 VDC Order No.: 1351320000
- Short specification
- Spare arrester for surge voltage arrester VPU II 600 V DC series The pluggable high-performance varistors can be swapped by trained personnel following a failure. Rated voltage: 600 V DC for PV systems Type: Weidmüller VPU II 0 PV 600 V DC Order no.: 1351320000
