Description

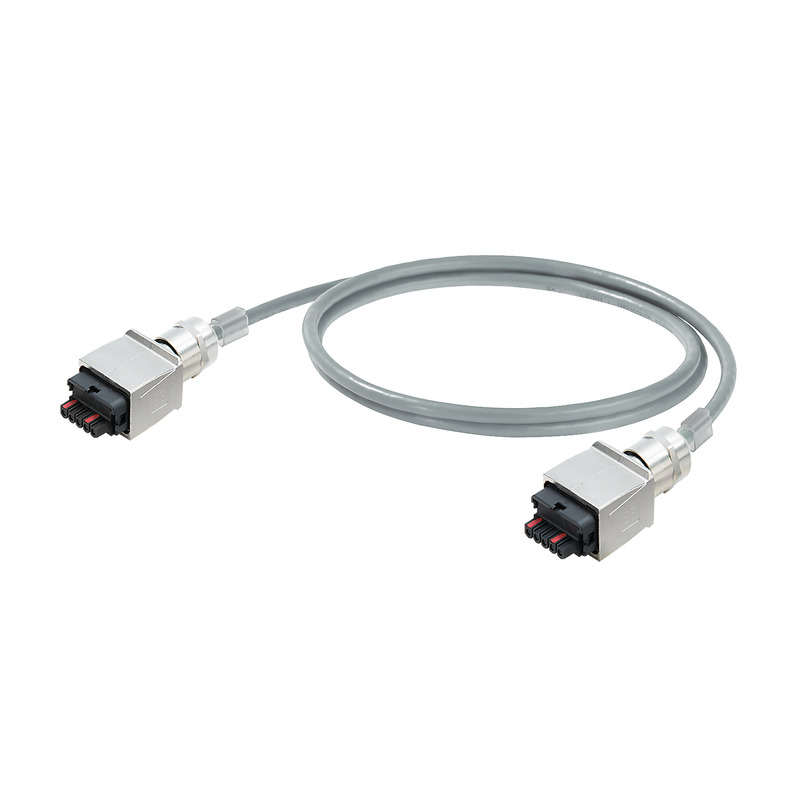

System cable, PushPull Power, PushPull Power, PVC, 15 mIE-CSPS5VS0150VAPVAP-X
Weidmuller 1350120150 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Cable Structure
- Cross-section
- 5*1.5 mm²
- Insulation
- PVC
- Material sheath
- PVC
- Number of wires
- 5
- Sheath diameter, max.
- 8.1 mm
- Sheathing colour
- grey (similar to RAL 7001)
- Wire connection cross section AWG, max.
- AWG 16
Classifications
- eClass 10.0
- 27-06-01-05
- eClass 9.0
- 27-06-20-01
- eClass 9.1
- 27-06-23-90
- ETIM 6.0
- EC000993
- ETIM 7.0
- EC003248
Dimensions And Weights
- Length
- 15 m
- Length (inches)
- 0.591 inch
- Net weight
- 2,040 g
Electrical Properties
- Current-carrying capacity at 50 °C
- 16 A
- Rated voltage
- 24 V
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 4 x cable diameter
Plug
- Connector left
- PushPull Power
- Connector right
- PushPull Power
Standards
- Connector standard
- in accordance with PROFINET specification
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
