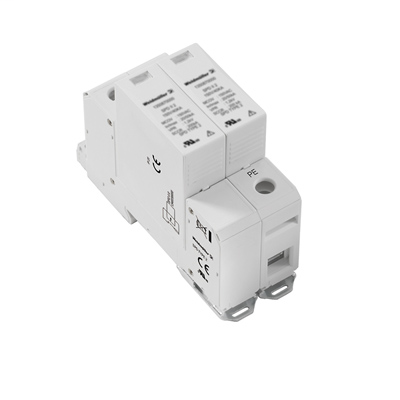

Weidmuller 1348540000

Approvals

• ROHS
  • Conform

Classifications

• eClass 5.1
  • 27-13-08-01
• eClass 6.2
  • 27-13-08-02
• eClass 7.1
  • 27-14-02-01
• eClass 8.1
  • 27-14-02-01
• eClass 9.0
  • 27-14-02-01
• eClass 9.1
  • 27-13-08-05
• ETIM 3.0
  • EC000941
• ETIM 5.0
  • EC000510
• ETIM 6.0
  • EC000941
• UNSPSC
  • 30-21-19-21

Connection Data

• Clamping range, rated connection
  • 25 mm²
• Clamping range, rated connection, max.
  • 35 mm²
• Clamping range, rated connection, min.
  • 4 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 25 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 2.5 mm²
• Connection type
  • pluggable
• Cross-section for connected wire, solid core, max.
  • 1.5 mm²
• Cross-section for connected wire, solid core, min.
  • 0.5 mm²
• Max. torque
  • 0.22 Nm
• Stripping length
  • 5 mm
• Stripping length, rated connection
  • 15 mm
• Tightening torque, max.
  • 3 Nm
• Tightening torque, min.
  • 2.5 Nm
• Type of connection
  • Screw connection
• Wire connection cross-section, finely stranded, min.
  • 4 mm²
• Wire connection cross section, stranded, rated connection, max.
  • 25 mm²
• Wire connection cross section, stranded, rated connection, min.
  • 2.5 mm²
• Wire connection method
  • Screw connection
• Wire cross-section, solid, max.
  • 16 mm²
• Wire cross-section, solid, min.
  • 4 mm²

Connection Data, Remote Alert

• Connection type
  • pluggable
• Cross-section for connected wire, solid core, max.
  • 1.5 mm²
• Cross-section for connected wire, solid core, min.
  • 0.5 mm²
• Max. torque
  • 0.22 Nm
• Stripping length
  • 5 mm

Dimensions And Weights

• Depth
  • 73.5 mm
• Depth (inches)
  • 2.894 inch
• Height
  • 100 mm
• Height (inches)
  • 3.937 inch
• Net weight
  • 319 g
• Width
  • 36 mm
• Width (inches)
  • 1.417 inch

General Data

• Colour
  • Light Grey
• Design
  • Installation housing; 2TE
• Height with TS 35
  • 74 mm
• Mounting rail
  • TS 35, TS 35 x 15, TS 35 x 7.5
• Optical function display
  • grey = ok, red = arrester is defective, replace it
• Protection degree
  • IP20
• UL 94 flammability rating
  • V-0

General Ordering Data

• GTIN (EAN)
  • 4050118153026
• Order No.
  • 1348540000
• Qty.
  • 1 pc(s).
• Type
  • SPD II 2 R PV 600VDC
• Version
  • Low voltage, with telecomm. contact

Insulation Coordination Acc. To EN 50178

• Pollution severity
  • 2
• Surge voltage category
  • III

Photovoltaic Technical Data

• Discharge current, max. (8/20 µs)
  • 50 kA
• I
  • 70 A
• Maximum continuous operating voltage UCPV mode +/-, -/PE, +/PE
  • 550 V DC
• Protection level U
  • 4000 V
  • 2200 V
• Total discharge current I
  • 100 kA

Product Information

• Descriptive text accessories
  • Pluggable spare arrester SPD II 0 600 V / 40 kA -1348520000
• Descriptive text ordering data
  • Technical data according to UL 1449 Ed.3; UL File E354261

Rated Data Iec / En

• Discharge current I
  • 20 kA
• Discharge current, max. (8/20 µs)
  • 50 kA
• Max. continuous voltage, Uc (DC)
  • 550 V
• No. of poles
  • 2
• Protection level U
  • ≤ 2.2 kV
• Rated voltage (DC)
  • 600 V
• Response time
  • ≤ 100 ns
• Signalling contact
  • 250 V / 0,5 A, 48 VDC / 0,1 A
• Total discharge current I
  • 100 kA
• Voltage type
  • DC

Rated Data Ul

• Category
  • Typ 2
• I
  • 50 kA
  • 20 kA
• MCOV (L/N-PE)
  • 600 Vdc
• SCCR
  • 200 kA
• Test Voltage 39.1 (UL 1449)
  • 600 V
• UL certificate
  • E-File 354261 Type 2 by UL1449 Ed.3
• VPR (L/N-PE)
  • 2 kV

Temperatures

• Operating temperature
  • -40 °C...70 °C
• Storage temperature
  • -40 °C...85 °C
