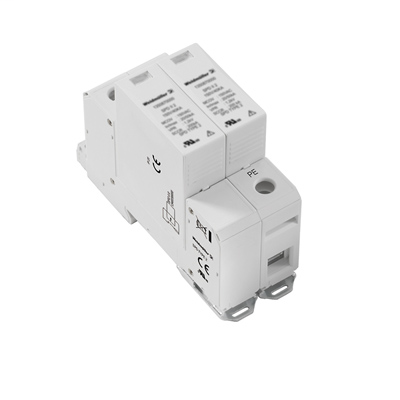

Weidmuller 1348490000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1348490000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 5.1
- 27-13-08-01
- eClass 6.2
- 27-13-08-02
- eClass 7.1
- 27-14-02-01
- eClass 8.1
- 27-14-02-01
- eClass 9.0
- 27-14-02-01
- eClass 9.1
- 27-13-08-05
- ETIM 3.0
- EC000941
- ETIM 5.0
- EC000510
- ETIM 6.0
- EC000941
- UNSPSC
- 30-21-19-21
Connection Data
- Clamping range, rated connection
- 25 mm²
- Clamping range, rated connection, max.
- 35 mm²
- Clamping range, rated connection, min.
- 4 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 25 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 2.5 mm²
- Stripping length, rated connection
- 15 mm
- Tightening torque, max.
- 3 Nm
- Tightening torque, min.
- 2.5 Nm
- Type of connection
- Screw connection
- Wire connection cross section, stranded, rated connection, max.
- 25 mm²
- Wire connection cross section, stranded, rated connection, min.
- 2.5 mm²
- Wire connection method
- Screw connection
- Wire cross-section, solid, max.
- 16 mm²
- Wire cross-section, solid, min.
- 4 mm²
Dimensions And Weights
- Depth
- 73.5 mm
- Depth (inches)
- 2.894 inch
- Height
- 90 mm
- Height (inches)
- 3.543 inch
- Net weight
- 324 g
- Width
- 36 mm
- Width (inches)
- 1.417 inch
General Data
- Colour
- Light Grey
- Design
- Installation housing; 2TE
- Height with TS 35
- 74 mm
- Mounting rail
- TS 35, TS 35 x 15, TS 35 x 7.5
- Optical function display
- grey = ok, red = arrester is defective, replace it
- Protection degree
- IP20
- UL 94 flammability rating
- V-0
General Ordering Data
- GTIN (EAN)
- 4050118152906
- Order No.
- 1348490000
- Qty.
- 1 pc(s).
- Type
- SPD II 2 PV 1000VDC
- Version
- Low voltage, without telecomm. contact
Insulation Coordination Acc. To EN 50178
- Pollution severity
- 2
- Surge voltage category
- III
Photovoltaic Technical Data
- Discharge current, max. (8/20 µs)
- 20 kA
- I
- 70 A
- Maximum continuous operating voltage UCPV mode +/-, -/PE, +/PE
- 1,000 V DC
- Protection level U
- 4000 V
- 4000 V
- Total discharge current I
- 40 kA
Product Information
- Descriptive text accessories
- Pluggable spare arrester SPD II 0 150 V / 40 kA -1348480000
- Descriptive text ordering data
- Technical data according to UL 1449 Ed.3; UL File E354261
Rated Data Iec / En
- Discharge current I
- 20 kA
- Discharge current, max. (8/20 µs)
- 20 kA
- Max. continuous voltage, Uc (DC)
- 1000 V
- No. of poles
- 2
- Protection level U
- ≤ 2.6 kV
- Rated voltage (DC)
- 1000 V
- Response time
- ≤ 100 ns
- Total discharge current I
- 40 kA
- Voltage type
- DC
Rated Data Ul
- Category
- Typ 2
- I
- 20 kA
- 10 kA
- MCOV (L/N-PE)
- 1,000 Vdc
- SCCR
- 200 kA
- Test Voltage 39.1 (UL 1449)
- 1,000 V
- UL certificate
- E-File 354261 Type 2 by UL1449 Ed.3
- VPR (L/N-PE)
- 4 V
Temperatures
- Operating temperature
- -40 °C...70 °C
- Storage temperature
- -40 °C...85 °C
