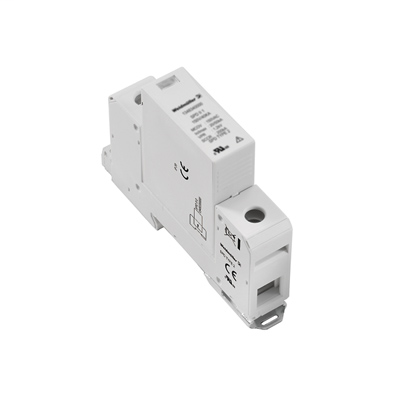

Weidmuller 1348470000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Surge protection, Low voltage, with remote contactSPD II 1 R 550V/50KA
Weidmuller 1348470000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus
- ROHS
- Conform
- UL File Number Search
- E354261
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-21
Connection Data
- Clamping range, max.
- 35 mm²
- Clamping range, min.
- 4 mm²
- Clamping range, rated connection
- 25 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 25 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 2.5 mm²
- Connection cross-section, stranded, max.
- 25 mm²
- Connection cross-section, stranded, min.
- 2.5 mm²
- Stripping length, rated connection
- 15 mm
- Tightening torque, max.
- 3.5 Nm
- Tightening torque, min.
- 2.5 Nm
- Type of connection
- Screw connection
- Wire connection cross-section, finely stranded, min.
- 2.5 mm²
- Wire connection method
- Screw connection
- Wire cross-section, solid, max.
- 16 mm²
- Wire cross-section, solid, min.
- 4 mm²
Connection Data, Remote Alert
- Connection type
- Screw connection
- Cross-section for connected wire, solid core, max.
- 1.5 mm²
- Cross-section for connected wire, solid core, min.
- 0.2 mm²
- Max. torque
- 0.22 Nm
- Stripping length
- 5 mm
Dimensions And Weights
- Depth
- 73.5 mm
- Depth (inches)
- 2.894 inch
- Height
- 100 mm
- Height (inches)
- 3.937 inch
- Net weight
- 172 g
- Width
- 18 mm
- Width (inches)
- 0.709 inch
General Data
- Colour
- Light Grey
- Design
- Installation housing; 1TE
- Height with TS 35
- 74 mm
- Optical function display
- grey = ok, red = arrester is defective, replace it
- Protection degree
- IP20
- Rail
- TS 35, TS 35 x 15, TS 35 x 7.5
- UL 94 flammability rating
- V-0
- Version
- with remote contact
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- III
Photovoltaic Technical Data
- Discharge current, max. (8/20 µs)
- 50 kA
Rated Data Iec / En
- Discharge current I
- 20 kA
- Discharge current, max. (8/20 µs)
- 50 kA
- Max. continuous voltage, Uc (AC)
- 550 V
- Number of poles
- 1
- Protection level U
- ≤ 2.6 kV
- Rated voltage (AC)
- 480 V
- Response time
- ≤ 100 ns
- Short-circuit current rating I
- 200 kA
- Signalling contact
- 250 V / 0,5 A, 48 VDC / 0,1 A
- Voltage type
- AC
Rated Data Ul
- Category
- Typ 2
- Certificate No. (cURus)
- E354261
- I
- 20 kA
- MCOV (L/N-PE)
- 550 Vac
- SCCR
- 200 kA
- Test Voltage 39.1 (UL 1449)
- 600 V
- UL certificate
- E-File 354261 Type 2 by UL1449 Ed.3
- VPR (L/N-PE)
- 2.5 kV
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
