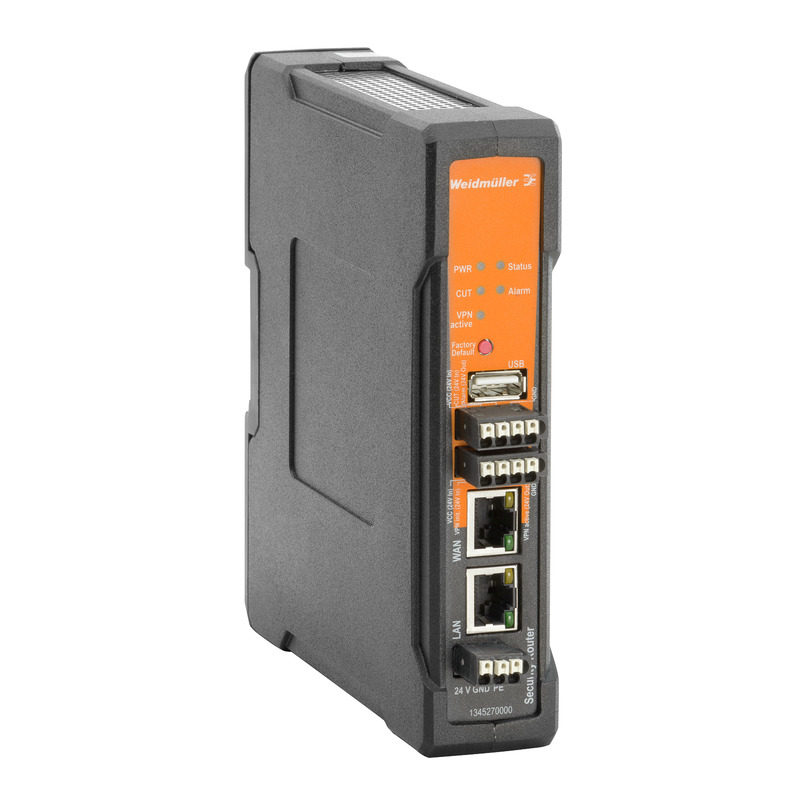

Weidmuller 1345270000

Approvals

• Approvals
  • CE, CULUS, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 19-17-04-05
• eClass 9.0
  • 19-17-01-03
• eClass 9.1
  • 19-17-01-03
• ETIM 6.0
  • EC001478
• ETIM 7.0
  • EC001478

Dimensions And Weights

• Depth
  • 140 mm
• Depth (inches)
  • 5.512 inch
• Height
  • 170 mm
• Height (inches)
  • 6.693 inch
• Net weight
  • 550 g
• Width
  • 35 mm
• Width (inches)
  • 1.378 inch

Dsl And Umts/Hspa

• DSL
  • Connection of DSL modem via LAN or WAN port, Free configuration of PPPoE access data
• DynDNS
  • Support for automatic registration

Emc Conformity And Approvals

• EMC standards
  • FCC Part 15, Class A, EN 61000-6-4, EN 61000-6-2
• Security
  • UL508
• Shock
  • according to IEC 60068-2-27
• Vibration
  • according to IEC 60068-2-6

Environmental Conditions

• Humidity
  • 5 - 90 %, no condensation
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -20 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -20 °C

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Guarantee

• Time interval
  • 3 years

Interfaces

• Digital inputs
  • Cut: physically disconnects (Link Down) the WAN port (24 V in), VPN-initiate: establishes a pre-configured VPN connection (24 V in)
• Digital outputs
  • Alarm: indicates a configurable network state or fault (24 V out), VPN-active: indicates an active VPN connection (24 V out)
• LED indicator
  • Indication of voltage status, Status, Section, Alarm, Active VPN connection
• Number of ports
  • 2 * RJ45 10/100/1000BaseT(X)
• Reset button
  • Restoration of factory settings
• RJ45 ports
  • 10/100/1000BaseT(X), auto negotiation, Full-/half-duplex mode
• SCM card reader
  • Save and restore the configuration using smart card (memory chip)
• USB port
  • USB 2.0 interface for firmware update or restoration of the device configuration via USB flash drive

Miscellaneous

• Diagnostics
  • Remote capture function for network diagnostics via a connected PC (Wireshark)
• Modbus/TCP
  • Integrated Modbus-TCP server for status queries and software-based enabling/disabling of VPN connections
• Monitoring
  • Client monitoring (per ICMP) with alarm function in the event of a fault

Modes Of Operation

• IP router
  • IP routing (IPv4, Layer-3) with SPI firewall (Stateful Packet Inspection)
• Transparent bridge
  • 2-port switch with additional layer-2 filter

Mtbf

• MTBF
  • 135,270 hrs

Network Services/Firewall/Management

• Firewall
  • IPv4 Stateful Packet Inspection Firewall (incoming/outgoing), NAT masquerading, 1:1 NAT, Port forwarding, layer 2/3 filter (VLAN ID, VLAN QoS Tag, MAC address, EtherType frame), Auto-learning function to create packet filter rules (analysis of network traffic), Layer 2/3-based packet prioritisation (Ethernet Frame, IP Header, VLAN Tag)
• Management
  • Configuration via WEB interface (HHTP/HTTPS), Language interface can be switched to German or English, Configuration support through detailed help information (tool tip), Configurable multi-user access with freely definable rights, Support for SNMP v1/v2/v3, event log/syslog
• Network services
  • DHCP Server / DHCP Relay, DNS relay, NTP client, DynDNS (DHCP client acc. to RFC 2136)

Power Supply

• Current consumption
  • max. 0.6 A at 24 V DC
• Voltage supply
  • 1x 24 V DC (7 to 36 V DC), NEC class 2, (for use in conformity with UL specifications: 7 - 30 V DC)

Technical Data

• Housing main material
  • diecast aluminium
• Protection degree
  • IP20
• Type of mounting
  • DIN rail, VESA 75

Vpn

• IPsec
  • Configurable as IPsec server or client, Authentication via PSK (userid, password) or X.509 certificates, Hardware-based encryption for faster data throughput, Maximum 64 simultaneous connections (sub-network to sub-network or as IPsec server), Encryption algorithms DES-56, 3DES-168, AES-128, AES-192, AES-256
• OpenVPN
  • Configurable as OpenVPN server or client (Layer 2 and Layer 3), Authentication via X.509 certificate, Tunnel support via HTTP proxy, Maximum 10 different client or server configurations, Unlimited number of client connections in server mode
• u-link
  • OpenVPN-based remote access service via the Weidmüller u-link cloud
