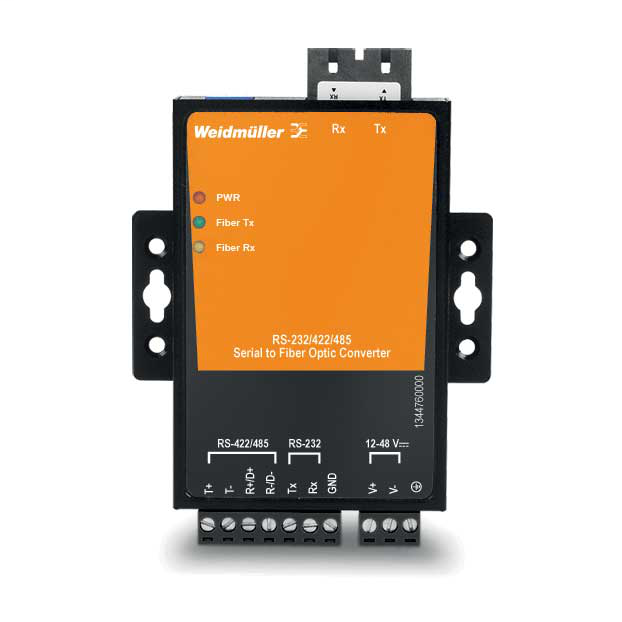

Weidmuller 1344760000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Serial/fibre-optic converter, 1 x terminal block for RS232/422/485, 1 x SC multimode, IP30, -40 °C...75 °CIE-MCT-1RS232/485-1SC
Weidmuller 1344760000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS, EAC
- ROHS
- Conform
- UL File Number Search
- E230683
Classifications
- eClass 10.0
- 19-17-04-11
- eClass 9.0
- 19-17-01-14
- eClass 9.1
- 19-17-01-14
- ETIM 6.0
- EC000310
- ETIM 7.0
- EC000310
Dimensions And Weights
- Depth
- 22 mm
- Depth (inches)
- 0.866 inch
- Height
- 100 mm
- Height (inches)
- 3.937 inch
- Net weight
- 130 g
- Width
- 90.2 mm
- Width (inches)
- 3.551 inch
Emc Conformity And Approvals
- EMC standards
- FCC Part 15 Class B, EN 61000-4-2 (ESD), Stage 3, EN 61000-4-3 (RS), Stage 2, EN 61000-4-4 (EFT), Stage 2, EN 61000-4-5 (Surge), Stage 3, EN 61000-4-6 (CS), EN 61000-4-8, Stage 1
- Security
- UL60950-1
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, max.
- 75 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 75 °C
- Storage temperature, min.
- -40 °C
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Fibre-Optic Interface
- Receive sensitivity
- -20 dBM
- Transmission mode: "Point-to-point"
- Half-duplex, Full-duplex
- Transmission mode: "Ring"
- Half-duplex
- Transmit power
- > - 5 dBM
- Type of connection
- SC connection, Multimode
- Typical distances
- 5 km (50/125, 62.5/125, 100/140 µm multimode cable)
- Wave length
- 850 nm
Guarantee
- Time interval
- 5 years
Mtbf
- Database
- Telcordia (Bellcore), GB
- MTBF
- 780,480 hrs
Power Supply
- Connection type
- 1 removable 3-pole terminal block
- Current consumption
- 140 mA @ 12 V DC
- Overload current protection
- 1.1 A
- Reverse polarity protection
- Available
- Supply line protection
- 2 KV Burst (EFT), EN61000-4-4, 2 KV Surge, EN61000-4-5
- Supply voltage, max.
- 48 V DC
- Supply voltage, min.
- 12 V DC
- Voltage supply
- 24 V DC
Serial Interface
- Baud rate
- 50 bit/s to 921.6 kbit/s
- Connection type
- 1 removable 3-pole terminal block
- Interface standards
- RS-232/422/485
- RS-485 data direction control
- ADDC® (automatic data direction control)
Serial Signals
- RS-232
- Tx, Rx, GND
- RS-422
- TxD+, TxD-, RxD+, RxD-, GND
- RS-485 2-wire
- Data+, Data-, GND
- RS-485 4-wire
- TxD+, TxD-, RxD+, RxD-, GND
Technical Data
- Housing main material
- Aluminium
- Protection degree
- IP30
- Type of mounting
- Mounting plate, Wall mounting, when screwed in, TS 35, (with optional mounting kit IE-DINRAILMOUNT-KIT 1504430000)
