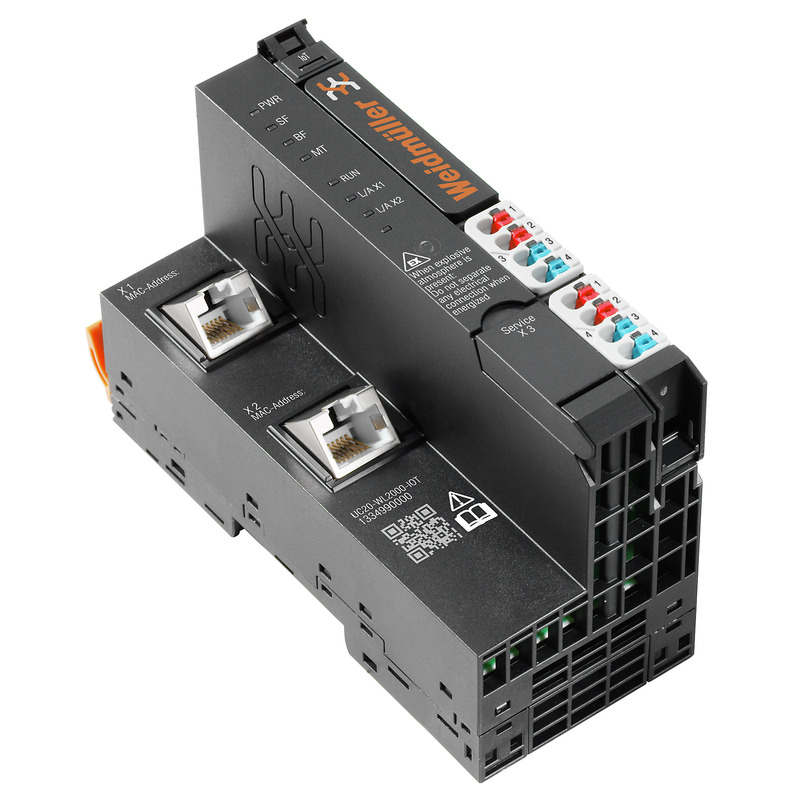

Weidmuller 1334990000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Controller, IP20, u-control 2000 web, IoT Controller, Web-based, incl. Engenieering Tool u-create IoT (node red)UC20-WL2000-IOT
Weidmuller 1334990000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-24-26-07
- eClass 9.1
- 27-24-26-08
- ETIM 6.0
- EC001603
- ETIM 7.0
- EC001603
Connection Data
- Type of connection
- PUSH IN
Dimensions And Weights
- Depth
- 76 mm
- Depth (inches)
- 2.992 inch
- Height
- 120 mm
- Height (inches)
- 4.724 inch
- Mounting dimension - height
- 128 mm
- Net weight
- 232 g
- Width
- 52 mm
- Width (inches)
- 2.047 inch
General Data
- UL 94 flammability rating
- V-0
Power Supply
- Current consumption from I
- 116 mA
- Feed current for I
- 5 A
- Feed current for the system, max.
- 4,000 mA
- Supply voltage for outputs
- 24 V DC +20 %/ -15 %
- Supply voltage system and inputs
- 24 V DC +20 %/ -15 %
System Data
- Configuration interface
- Micro USB 2.0
- Connection type
- 2 x RJ45 plug-in connectors
- Interface
- 2x Ethernet TCP/IP, 1x Micro USB
- max. number of modules
- 64
- Memory (Flash)
- 4 GB, 32 GB via microSD
- Module type
- Controller
- Processor
- Dual Core ARM Cortex A9, 624 MHz, 512 Mbyte RAM
- Real-time clock
- Battery buffered
- Transmission speed backplane bus, max.
- 48 Mbit
Temperatures
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -20 °C
