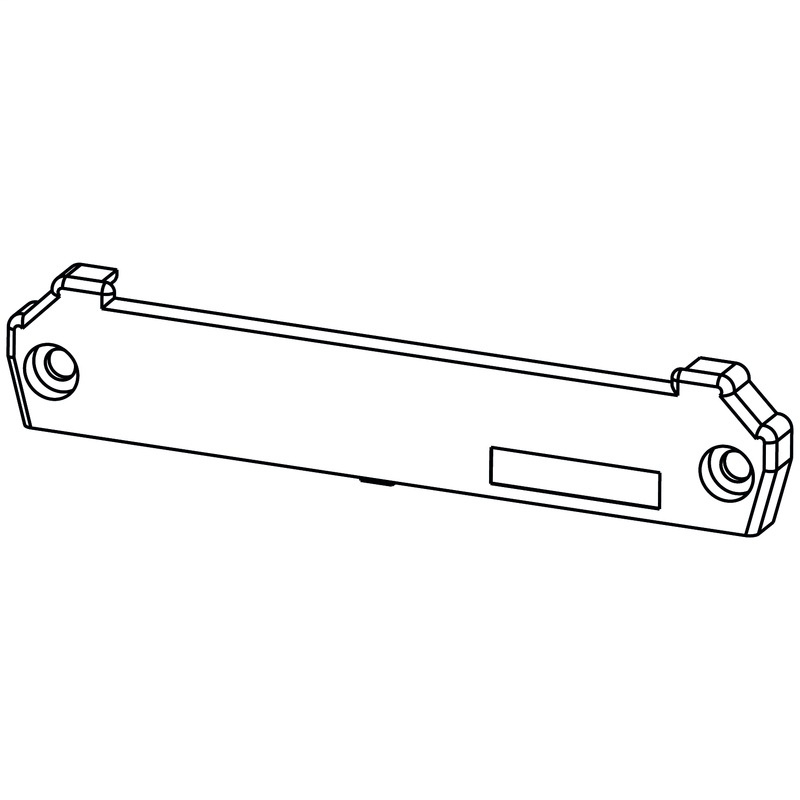

Weidmuller 1324260000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
End plate, RS 80 orange, End plate, Width: 12.3 mmAP 80 OR
Weidmuller 1324260000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- GOSTME25
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-18-27-92
- eClass 9.0
- 27-18-27-90
- eClass 9.1
- 27-18-27-90
- ETIM 6.0
- EC001031
- ETIM 7.0
- EC001031
- UNSPSC
- 30-21-18-27
Dimensions And Weights
- Height
- 20 mm
- Height (inches)
- 0.787 inch
- Length
- 86.4 mm
- Length (inches)
- 3.402 inch
- Net weight
- 2.335 g
- Width
- 12.3 mm
- Width (inches)
- 0.484 inch
Material Data
- Colour
- orange
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 600
- Insulating material
- PA 66
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Operating temperature, min.
- -50 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -25 °C
- Temperature range, installation, max.
- 100 °C
- Temperature range, installation, min.
- -25 °C
- UL 94 flammability rating
- V-2
Notes
- Descriptive text technical data
- 3 heights are available for the cover profile and the end plates:TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mmTS mounting with low cover: TS 32 = 72 mm, TS 35x7.5 = 67.5 mmTS mounting with high cover: TS 32 = 91 mm, TS 35x7.5 = 86.5 mmDirect mounting, without/low/high cover: 17 / 44 / 63 mmDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: 67.8 (+0.2) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension ADP section = PCB length - 2 mmExample:PCB length 160 mm, RS section = 155.5 mm, ADP section = 158 mm
System Characteristics
- Contact to terminal rail
- No
- Cross-connection
- No
- Encapsulation option
- No
- Protection degree
- IP20
- Version
- End plate
