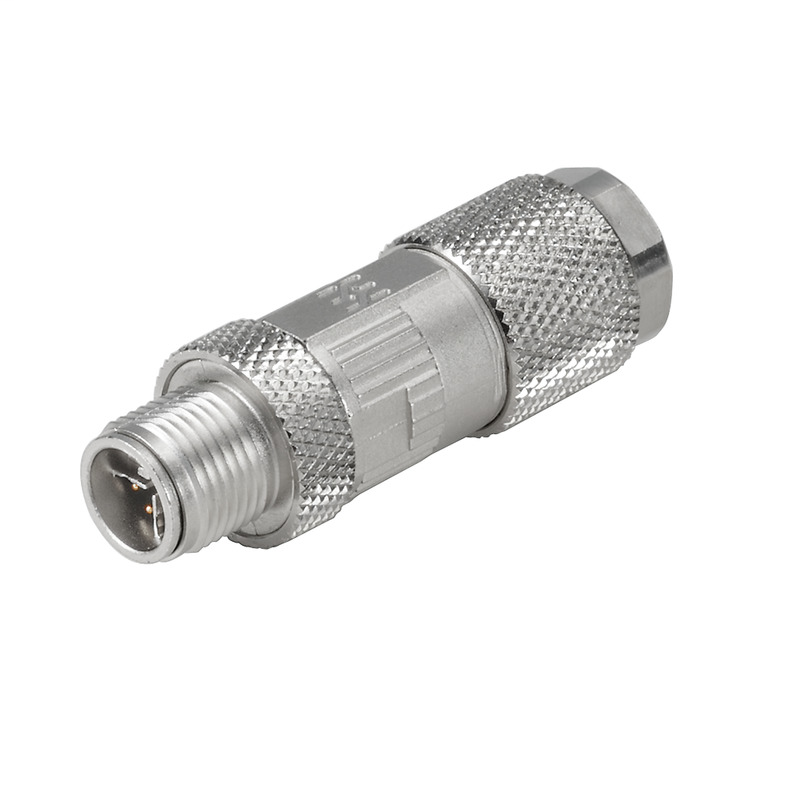

Weidmuller 1324020000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Plugs prefabricated to customer spec., M12, Insulation displacement technology, Cat.6A / Class EA (ISO/IEC 11801 2010), IP67IE-PS-M12X-P-FH
Weidmuller 1324020000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-01-02
- eClass 9.0
- 27-44-01-02
- eClass 9.1
- 27-44-01-03
- ETIM 6.0
- EC002062
- ETIM 7.0
- EC002635
Dimensions And Weights
- Net weight
- 33.95 g
Electrical Properties
- Current-carrying capacity at 50 °C
- 0.5 A @ 40 °C
- Insulation strength
- 100 MΩ
- PoE / PoE+
- conforming to IEEE 802.3at
- Rated voltage
- 48 V
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Info
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Conductor connection cross-section, flexible (AWG)
- AWG 26/7...AWG 22/7
- Conductor connection cross-section, solid (AWG)
- AWG 26/1...AWG 22/1
- Connection 1
- M12
- Connection 2
- Insulation displacement technology
- Connection diameter, flexible
- 0.48...0.76 mm
- Connection diameter, solid
- 0.41...0.64 mm
- Connection thread
- M12
- Contact holder materials
- PA
- Contact material
- Brass
- Contact surface
- Gold-plated
- Housing main material
- Zinc diecast
- Insulation cross-section, max.
- 1.6 mm
- Number of poles
- 8
- Plugging cycles
- ≥ 100
- Protection degree
- IP67
- Sheath diameter, max.
- 9.7 mm
- Sheath diameter, min.
- 5 mm
- Shielding
- 360° all-round enclosure
- Type of mounting
- Screw mounting
- Wiring
- EIA/TIA T568 A, EIA/TIA T568 B
Standards
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 61076-2-109
- Fire safety for railway vehicles
- DIN EN 45545-2
Temperatures
- Operating temperature
- -40 °C...85 °C
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
