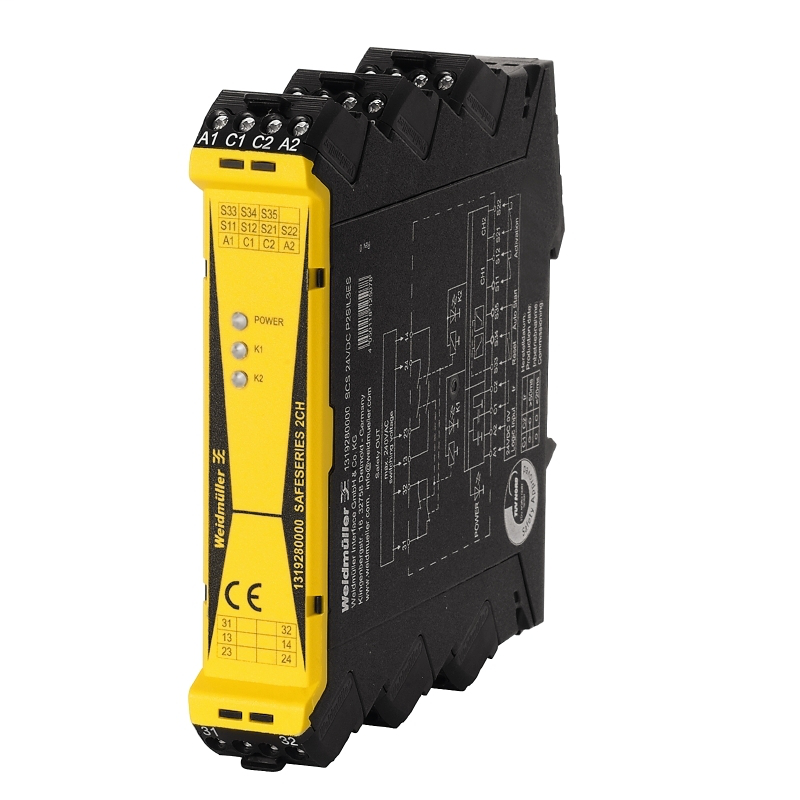

Weidmuller 1319280000

Approvals

• Approvals
  • CE, EAC, FUSAFETY
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-37-18-19
• eClass 9.0
  • 27-37-18-19
• eClass 9.1
  • 27-37-18-19
• ETIM 6.0
  • EC001449
• ETIM 7.0
  • EC001449

Connection Data

• Blade size
  • size PH0
• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.13 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 2.5 mm2
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.2 mm2
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Twin wire-end ferrules, max.
  • 1.5 mm2
• Twin wire-end ferrules, min.
  • 0.5 mm2
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 2.5 mm2
• Wire connection cross-section, finely stranded, min.
  • 0.2 mm2
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.2 mm2
• Wire connection method
  • Screw connection
• Wire cross-section, solid, max.
  • 2.5 mm2
• Wire cross-section, solid, min.
  • 0.2 mm2

Dimensions And Weights

• Depth
  • 114.1 mm
• Depth (inches)
  • 4.492 inch
• Height
  • 119.6 mm
• Height (inches)
  • 4.709 inch
• Net weight
  • 292 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Feedback Output

• Connection designation
  • 31, 32
• Contact design
  • 1 NC positively-driven (EN 50205 type B)
• Max. switching current.
  • 1 A
• Switching voltage AC, max.
  • 250 V

Further Details Of Approvals / Standards

• Equipment for furnaces
  • EN 50156
• Standards
  • EN 50178, EN 61000, EN 61326-3-2, EN ISO 13849-1 (PLe)

General Data

• Colour
  • black, yellow
• Rail
  • TS 35

Input (Power Supply)

• Connection designation
  • A1, A2, C1, C2
• Current consumption
  • 55 mA (release circuit enabled), 6 mA (release circuit not enabled)
• Guaranteed current consumption at 24 V DC -10%
  • 35 mA
• Inrush current
  • 750 mA / 5 ms (for starting with S33/S34 (start circuit)), 2 A / 20 ms (for starting with A1/A2 (autostart))
• Protective circuit
  • Reverse polarity protection, Free-wheeling diode
• Rated control voltage
  • 24 V DC ±15 %, 24 VDC +15% / -10% during auto-start
• Response time
  • with bridge via C1/C2: typ. 50 ms, without bridge via C1/C2: typ. 20 ms
• Short-circuit detection
  • Yes, max. 4 s up to disconnection (thermistor)
• Status display
  • LED green: supply, Yellow LED: signal

Insulation Coordination

• Creepage and clearance distance input – output
  • ≥ 5.5 mm
• Creepage and clearance distance output – output
  • ≥ 5.5 mm
• Dielectric strength, Input/Output
  • 4 kVeff / 1 min
• Dielectric strength output – output
  • 4 kVeff / 1 min
• Dielectric strength to mounting rail
  • 4 kVeff / 1 Min.
• Impulse withstand voltage
  • 6 kV (1.2/50 µs)
• Pollution severity
  • 2
• Protection degree
  • IP20
• Rated voltage
  • 300 V
• Surge voltage category
  • III

Monitoring Circuit

• Connection designation
  • S11, S12, S21, S22
• Input
  • 2, each externally bridgeable
• Operating voltage
  • 22 V DC, from internal power supply

Output (Release Circuit)

• Connection designation
  • 13, 14, 23, 24
• Contact base material
  • AgSnO
• Contact design
  • 2 NO positively-driven (EN 50205 type B)
• External back-up fuse
  • 5 A time lag
• Max. permissible switching current
  • 6 A
• Max. switching capacity
  • 2000 VA
• Max. switching current, external fuse
  • 5 A
• Min. switching capacity
  • 10 mA @ 12 V
• Switching voltage AC, max.
  • 250 V
• Turn-off time
  • 20 ms (C1/C2 bridged, switched via A1/A2), 15 ms (opening/closing of monitoring circuit)
• Turn-on time
  • 55 ms (C1/C2 bridged, switched via A1/A2), 30 ms (opening/closing of monitoring circuit)

Output (Safety Circuit)

• External back-up fuse
  • 5 A time lag

Safety-Related Basic Specifications

• Device type
  • A
• Hardware fault tolerance (HFT)
  • 1
• Safety category
  • SIL 3
• Safety standard
  • DIN EN 61508, EN ISO 13849-1 (PLe)
• T
  • 12 Years

Starting Circuit

• Anschlussbezeichnung
  • S33, S34, S35
• Function
  • falling edge (button via S33/S34), rising edge (permanent bridge via S33/S35)
• Operating voltage
  • 22 V DC, from internal power supply

Temperatures

• Humidity
  • 40 °C / 93 % rel. humidity, no condensation
• Operating temperature
  • -25 °C...55 °C
• Operating temperature, max.
  • 55 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
